1. [PRACTICAL REPAIR TOOL] Automotive circuit tester designed for easy maintenance and inspection of electrical systems.
2. [MU fit for LTIFUNCTIONAL USAGE] Test battery voltage, conductivity, check lights, motors, and locate shorts.
3. [CONVENIENT FEATURES] Includes front lighting, voltage display, polarity test, and overload protection.
4. [WIDE APPLICATION] Suitable for all 6-24V systems in cars, trucks, motorcycles, and more.
5. [EASY TO USE] User-friendly operation manual included for simple testing procedures.
Specification:

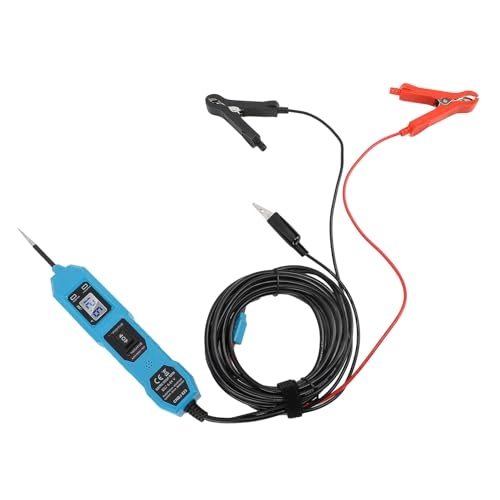

Item Type: Power Circuit Probe Tester
External Power: 12V or 24V DC power supply provided by vehicle battery
Overload Protection Current: 8A
DC Voltage Range: 6-24V
Cable Length: Approx. 4.5m / 14.8ft
Accuracy: +2%
Rated Current: 1-8Amp
Operating Temperature: -10℃-60℃
Relative Humidity: ≤80%
Application: Designed as a practical auxiliary tool for automobile electrical and circuit repair testing, it can be used to test battery voltage, voltage polarity, continuity, check lights, check motors, trace and locate short circuits, test poor grounding contact, and other faults.
Suitable for testing all 6-24V electrical systems, including cars, pickups, SUVs, motorcycles, construction vehicles, boats, etc.
Warning:
1. Only suitable for 6-24V DC environments, do not use in any AC or environments with power greater than 36V.
2. During use, sparks may occur on the probe. Do not use in flammable gas, dust, or flammable environments.
3. If any damage is found on the probe body or test leads during use, please stop using it.
4. The probe tip is , so pay attention to safety during use and storage.
How to Use:
How to use:
1.) Unplug the tester connection wire.
2.) The red Clamp/Holder is connected to the positive terminal of the battery, and the black Clamp/Holder is connected to the negative terminal of the battery: that is, the current voltage value of the battery is displayed in blue digits, and the front light is turned on; Reverse connection, does not show the voltage value, but still turn on the lamp:
Package List:
1 x Power Circuit Probe Tester
1 x User Manual
