YDuupxe Anti Spark Switch - 150A 90V

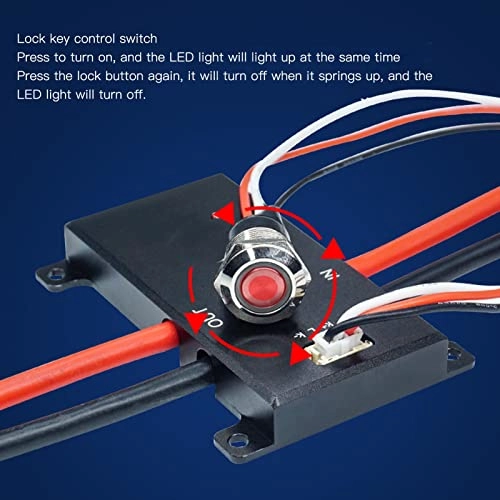

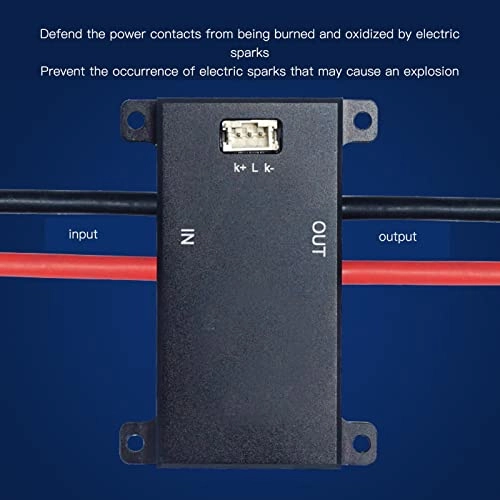

Spec: Item Type: Anti Spark Switch Material: Aluminum Alloy Continuous Current: 150A Maximum Continuous Current: 300A Maximum Input Voltage: 90V Applicable Fields: Robotic Arms, Robots, off Road Vehicles. Package List: 1 x Anti Spark Switch Note: The LED button is inserted into the switch by default in the factory state, please do not power on the switch without the LED button connected. 1. Main Application: The anti spark switch can defend the power contacts from being burned and oxidized by electric sparks, defend the integrated circuit from being damaged by breakdown, prevent the occurrence of electric sparks that may cause explosions, and more effectively prolong the life of electronic products. 2. Heat Dissipation: The aluminum base plate is used for better heat dissipation performance. If greater heat dissipation are required, copper plate can be added to the metal sheet for heat conduction. Wherever heat dissipation is required, it can be attached to which part. 3. Led Indicator: Lock key control switch, press it to turn on, and the LED light will light up at the same time, press the lock key again, and it will turn off when it springs up, and the LED light will turn off at the same time. 4. MOS Tube: Equipped with large package MOS tube, it has better overcurrent and heat dissipation performance. 5. Aluminum Alloy: Made of aluminum alloy, this anti spark switch poccesses ​ , wear , and strong strength, comes with a long life span.
