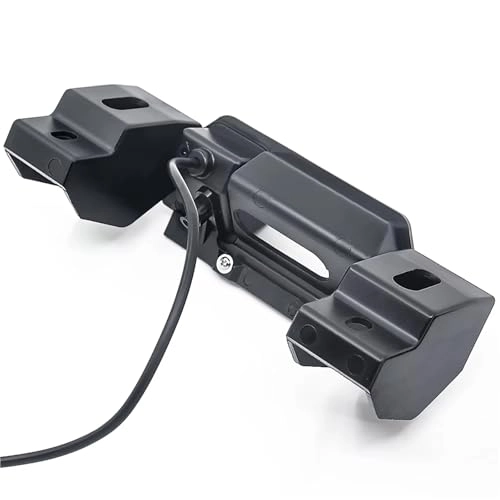

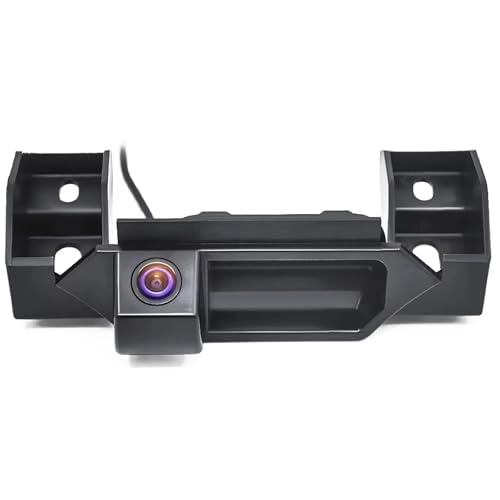

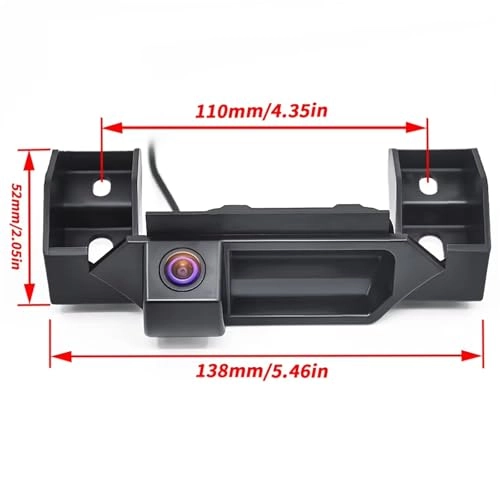

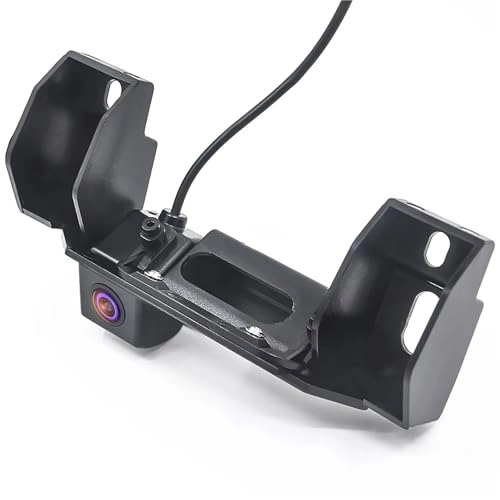

XingPuBhD Rear View Camera - 728 x 512

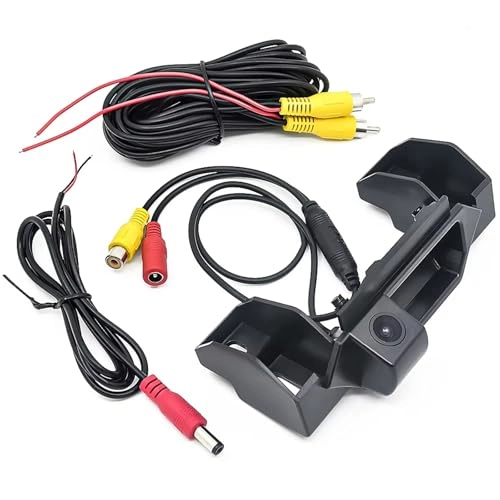

The rear view camera can be used for parking or driving. It provides a clear rear view and allows the driver to clearly see obstacles, pedestrians and other vehicles behind them when reversing. All cameras are tested before shipping. Features: Image sensor: 1/4 inch color TV Format: NTSC and PAL Effective pixels: 728 x 512 Resolution: 520 TVL Video Output: 1.0Vp-p 75 Electronic shutter: 1/60 (NTSC) - 1/10000 s 1/50 (PAL) - 1/10000 s Waterproof rating: IPX68 Operating temperature: -20°C to +80°C 95% RH Operating power (DCV): 12 Current consumption: maximum 90 mA Installation: 1. Mount the camera on the vehicle's license plate area. 2. Adjust the camera lens to the optimal position. 3. Connect the power cables (red and black) to the power cables of your vehicle's headlights. 4. Connect the video output (yellow cable) to the monitor. Package includes: 1 x Car Rear View Camera 1 x 6m video cable 1 x power cord. 1 x user manual. Please feel free to contact us with any questions. We will be happy to solve your problem. Thank you for your choice.
