Hardware configuration
Processor:MediaTek Filogic800 Dual-core A53 1.35GHz CPU
Memory:256MB
2.4GHz Wi-Fi:4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps)
5GHz Wi-Fi:4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

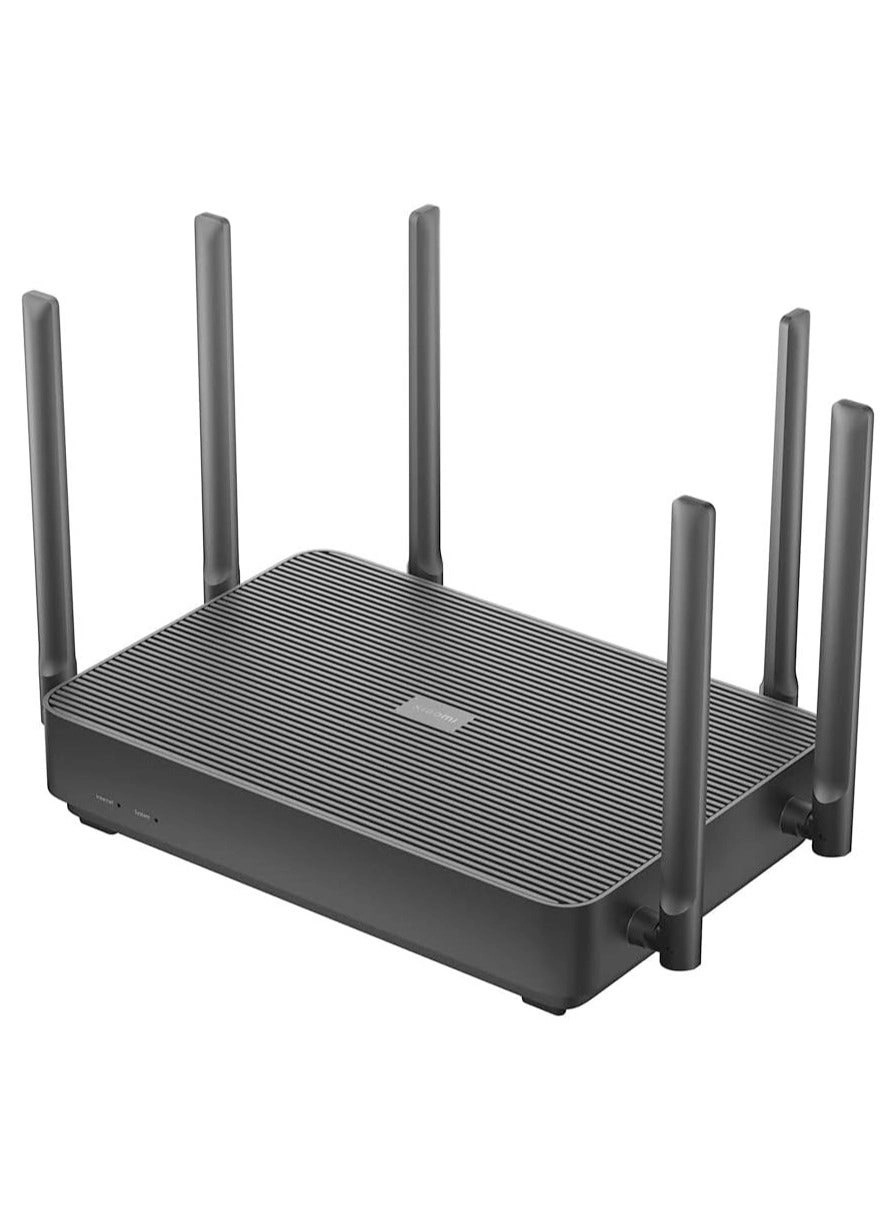

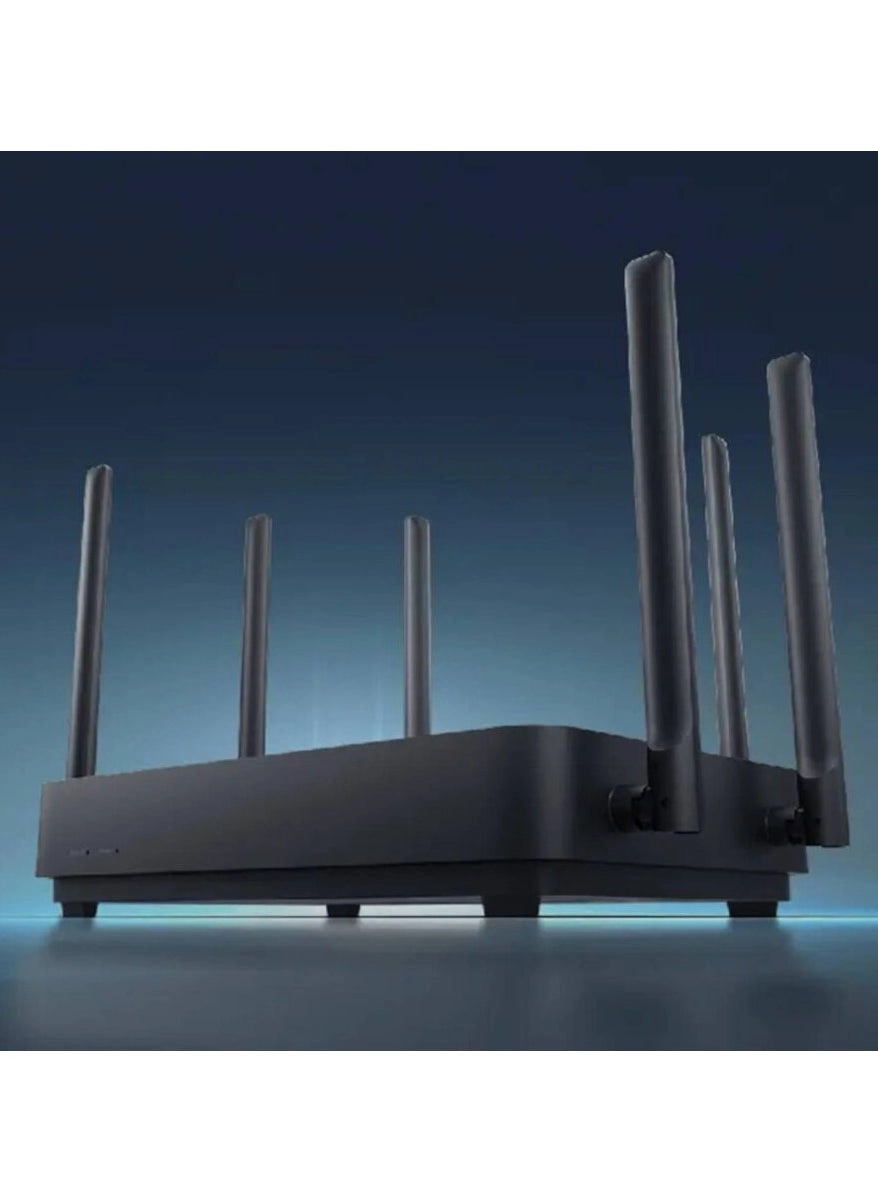

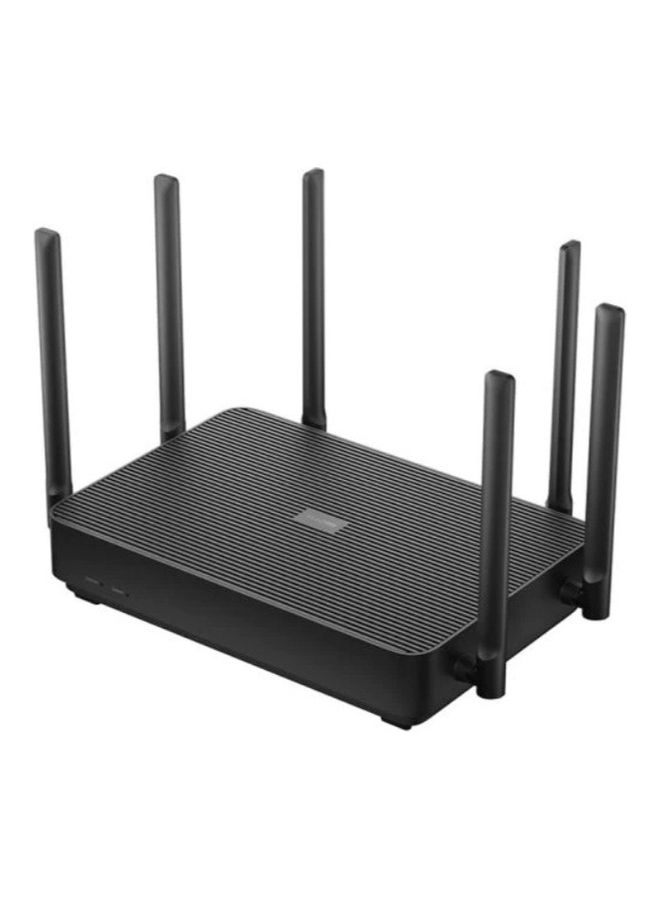

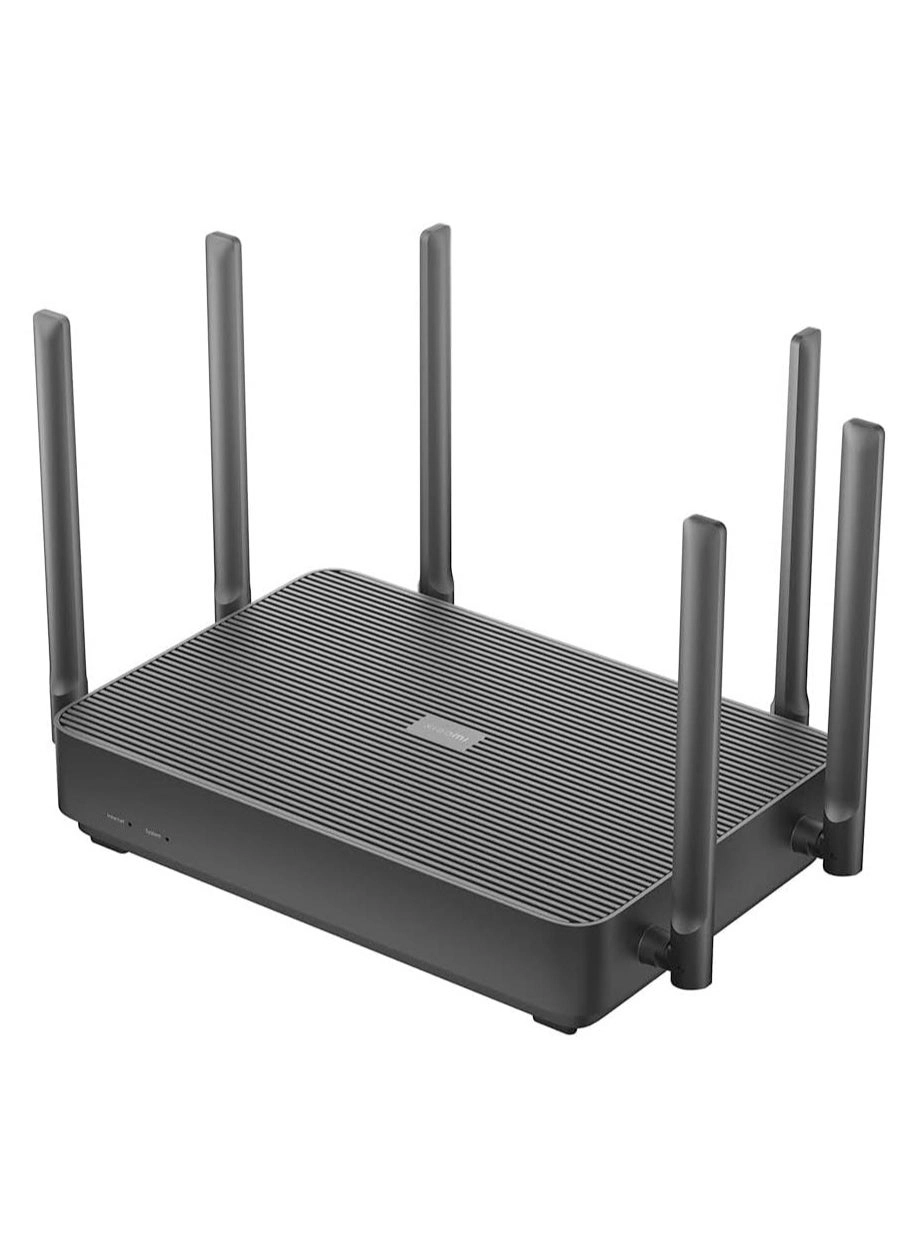

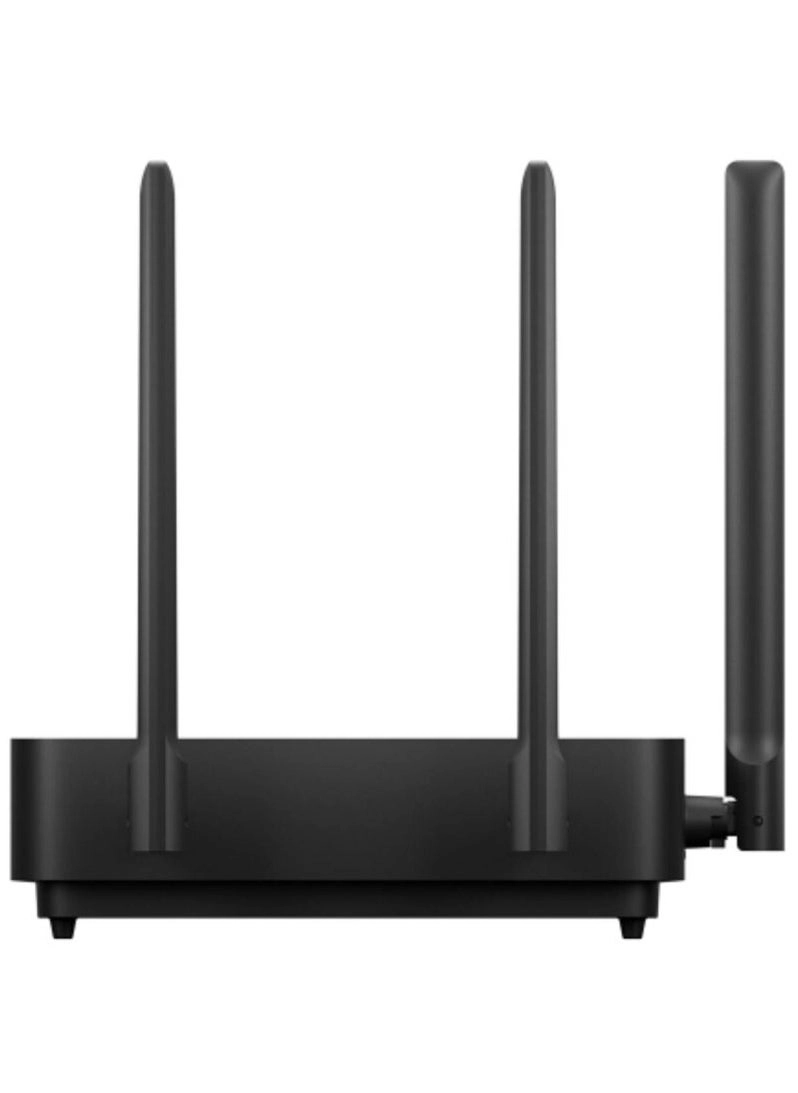

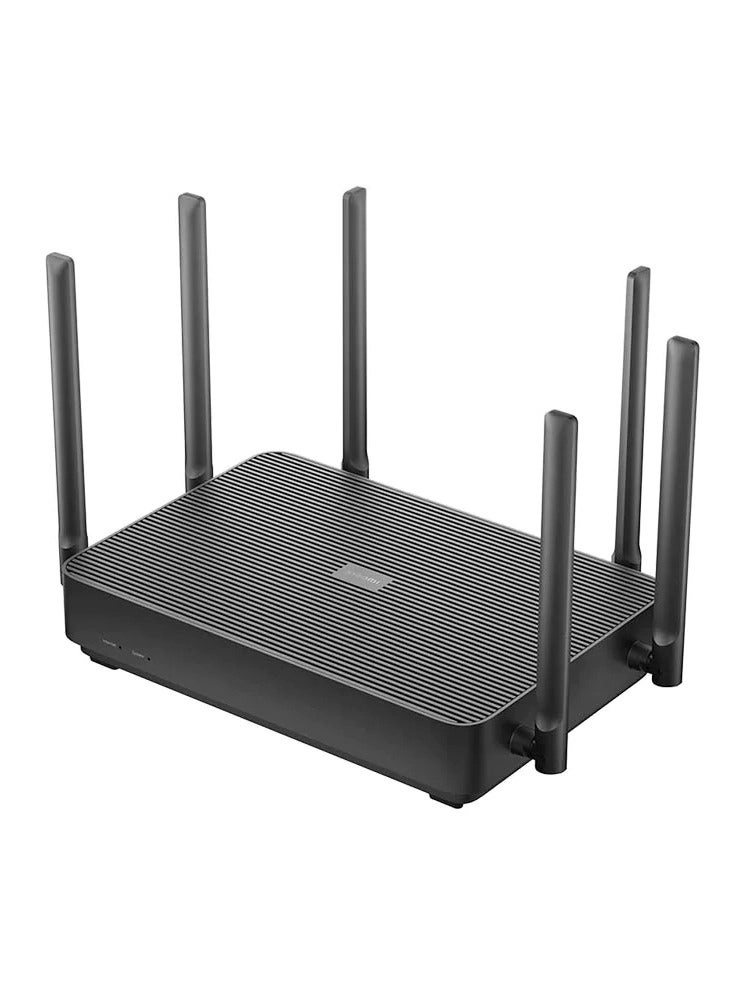

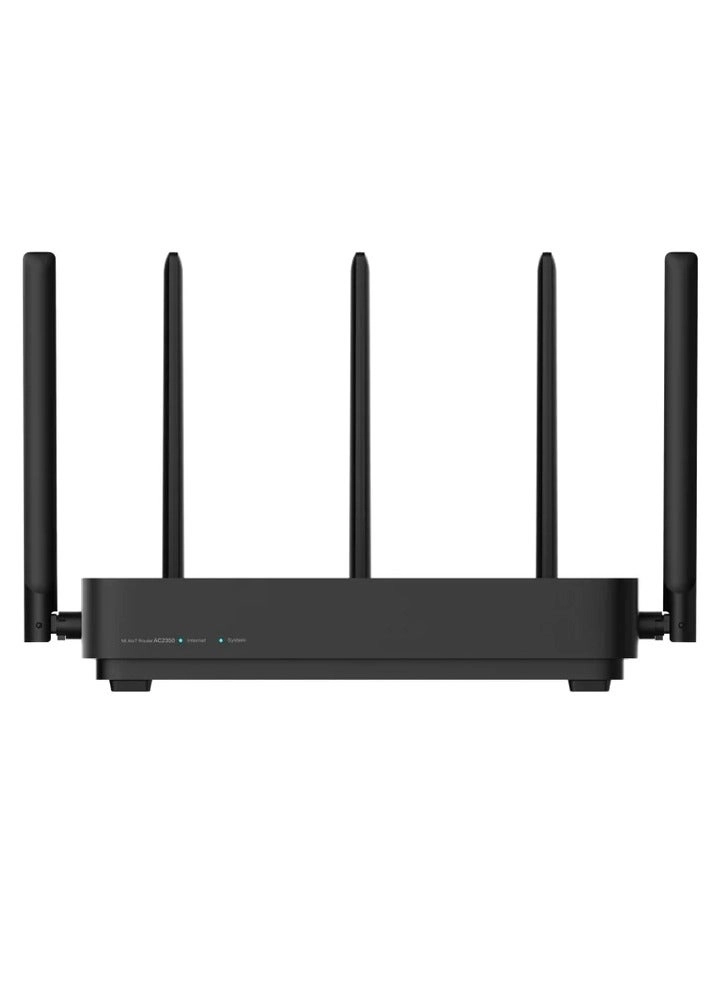

Antennas:External omnidirectional antennas

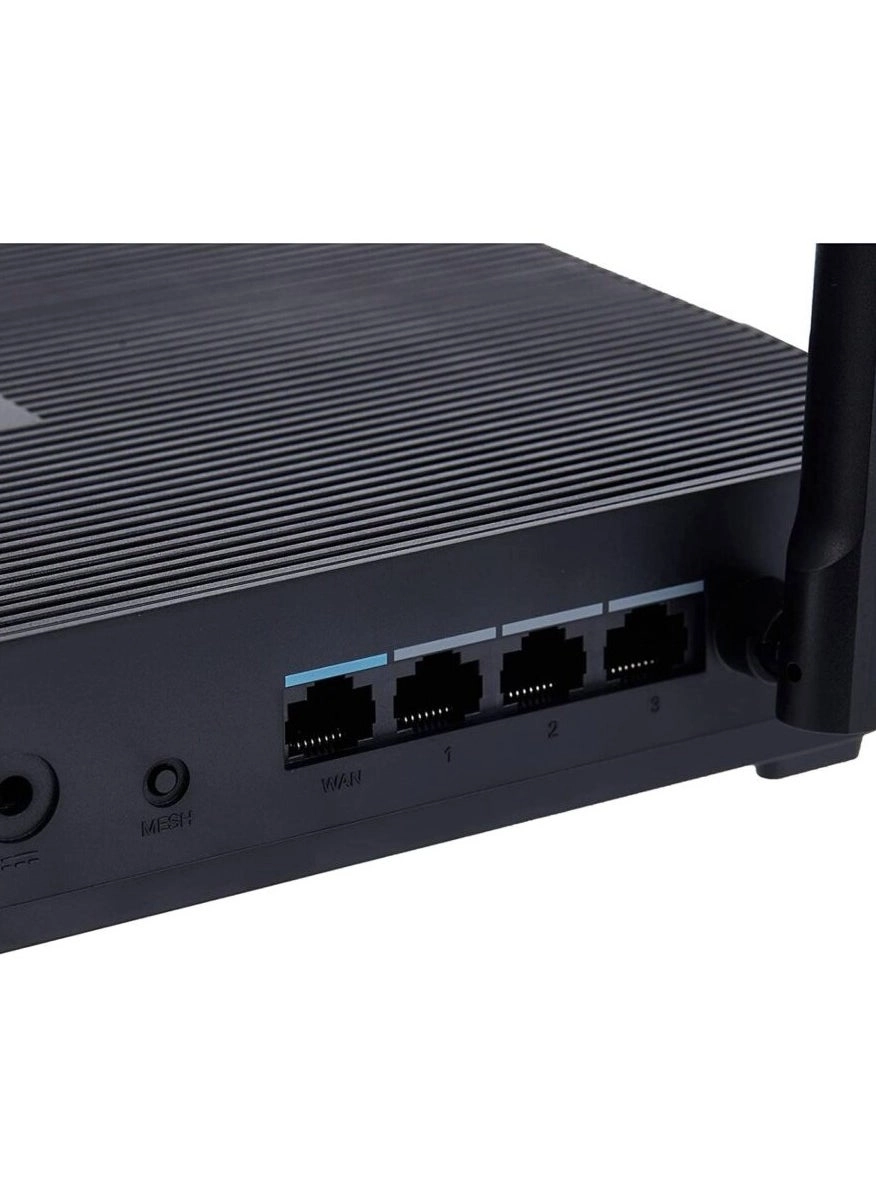

Total ports:10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1
10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3
LED indicator light:2 lights, incl. System indicator × 1, Internet indicator × 1
System reset button:×1
Mesh networking button:×1
Power input port:×1
Protocol standards:IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
Wireless specifications:Dual-band 2.4GHz, 5GHz
Modulation:
11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM.
11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
Software specifications
Operating system:MiWiFi ROM, a smart router operating system based on OpenWRT
Wi-Fi Encryption:WPA-PSK/WPA2-PSK/WPA3-SAE encryption
Management applications:Supports Web, Android, iOS
Working environment Temperature:0-40℃
Operating humidity:10%-90%RH (non-condensing)
Storage temperature:-40-70℃
Storage humidity:5%-90%RH (non-condensing)
