WWDZ VU Meter-P-200

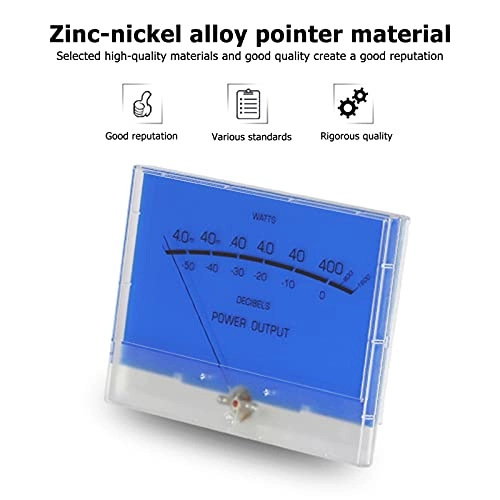

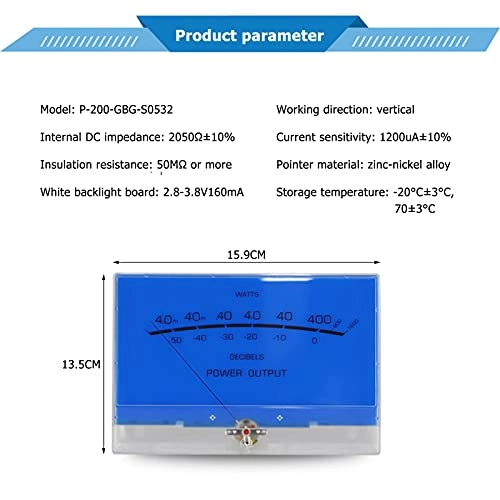

Specifications: Pointer material: zinc cupronickel Pointer swing direction: from left to right Pointer length: 107±1mm from the needle end to the axis Pointer width: 0.45±0.05mm Meter installation method: vertical White backlight board: 2.8-3.8V 160mA Maximum current sensitivity: 1200uA±10% Internal DC impedance: 2050Ω±10% Insulation resistance: above 50MΩ Friction: ±1mm Zero position: ±1mm Balance: ±1mm Vibration: The meter is packaged and fixed on a vibrating machine. Vibration frequency: 16.7 Hz (1000 times/min, amplitude 1.5mm, 3 minutes in each of X, Y, and Z directions). Operating temperature limit: 70°C±3°C Storage temperature limit: -20°C±3°C Packing list: 1 X VU meter
