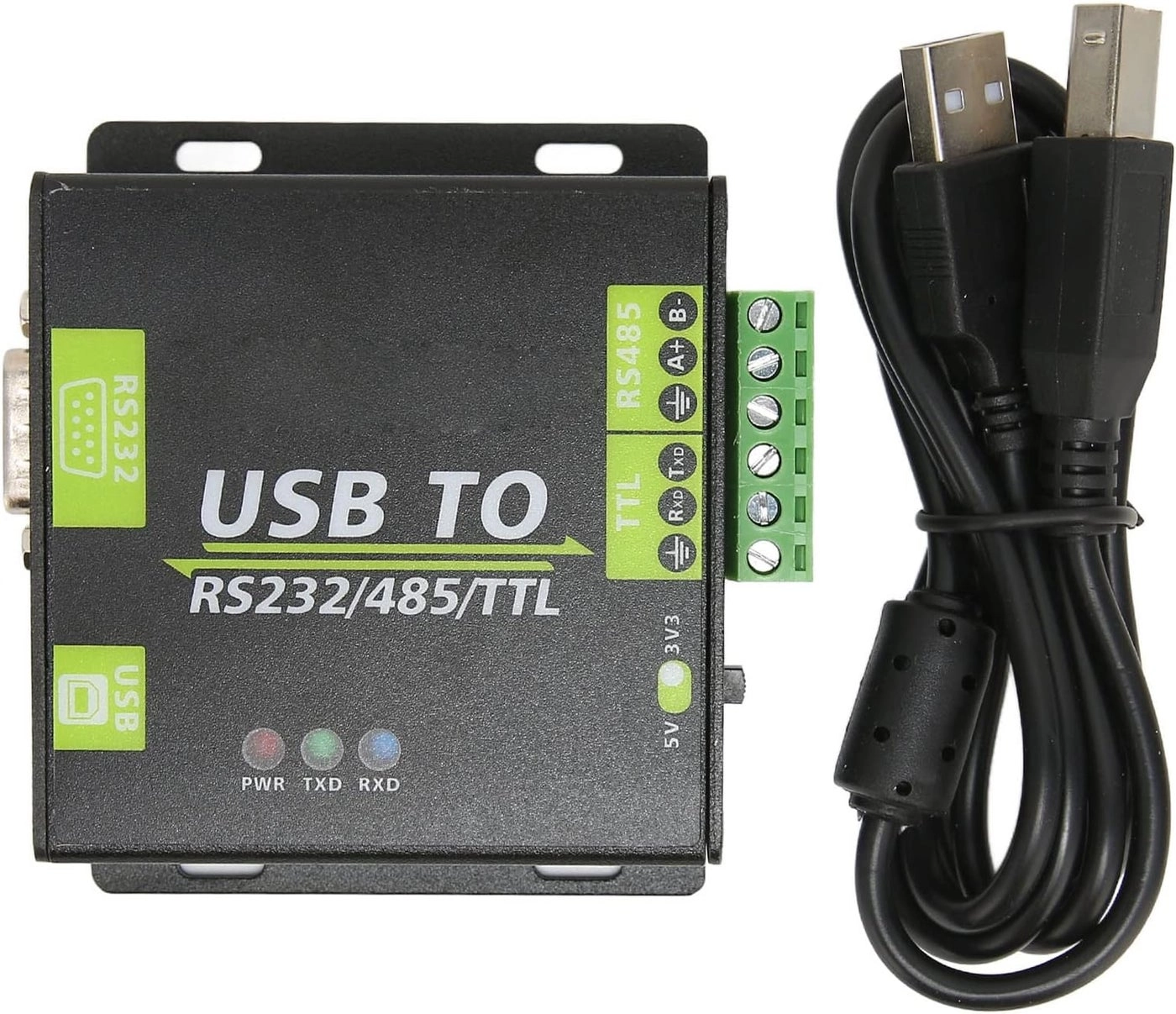

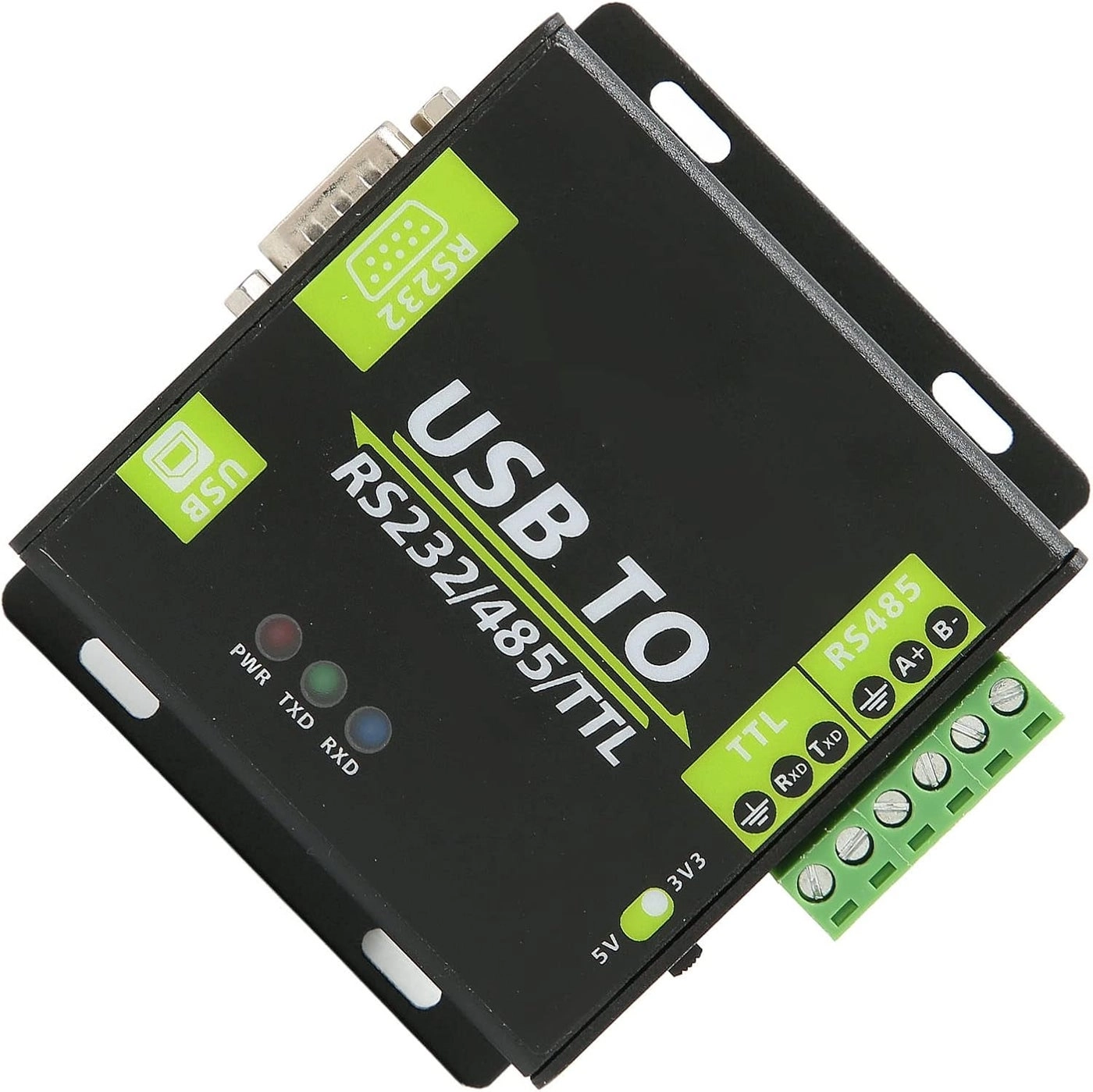

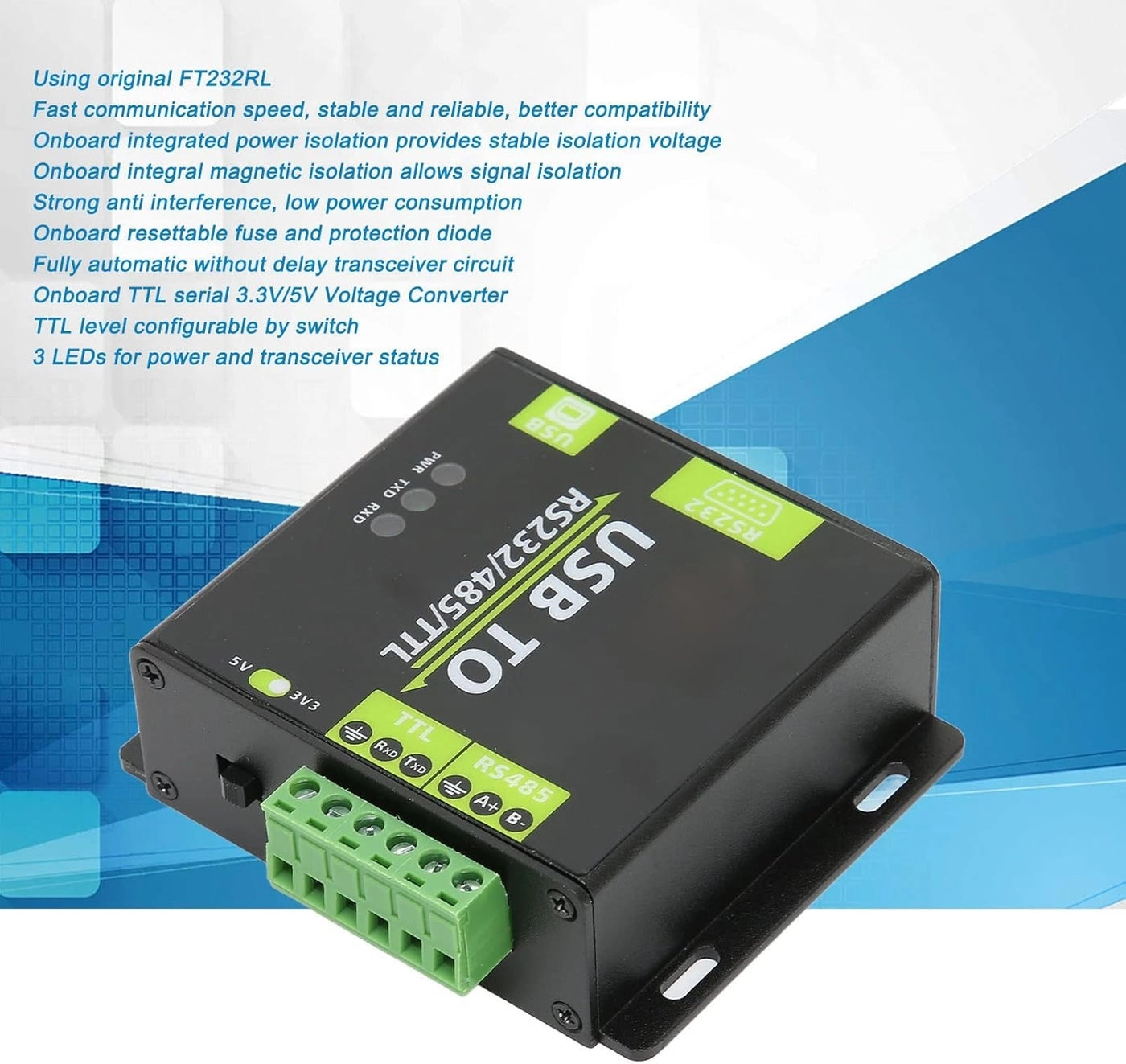

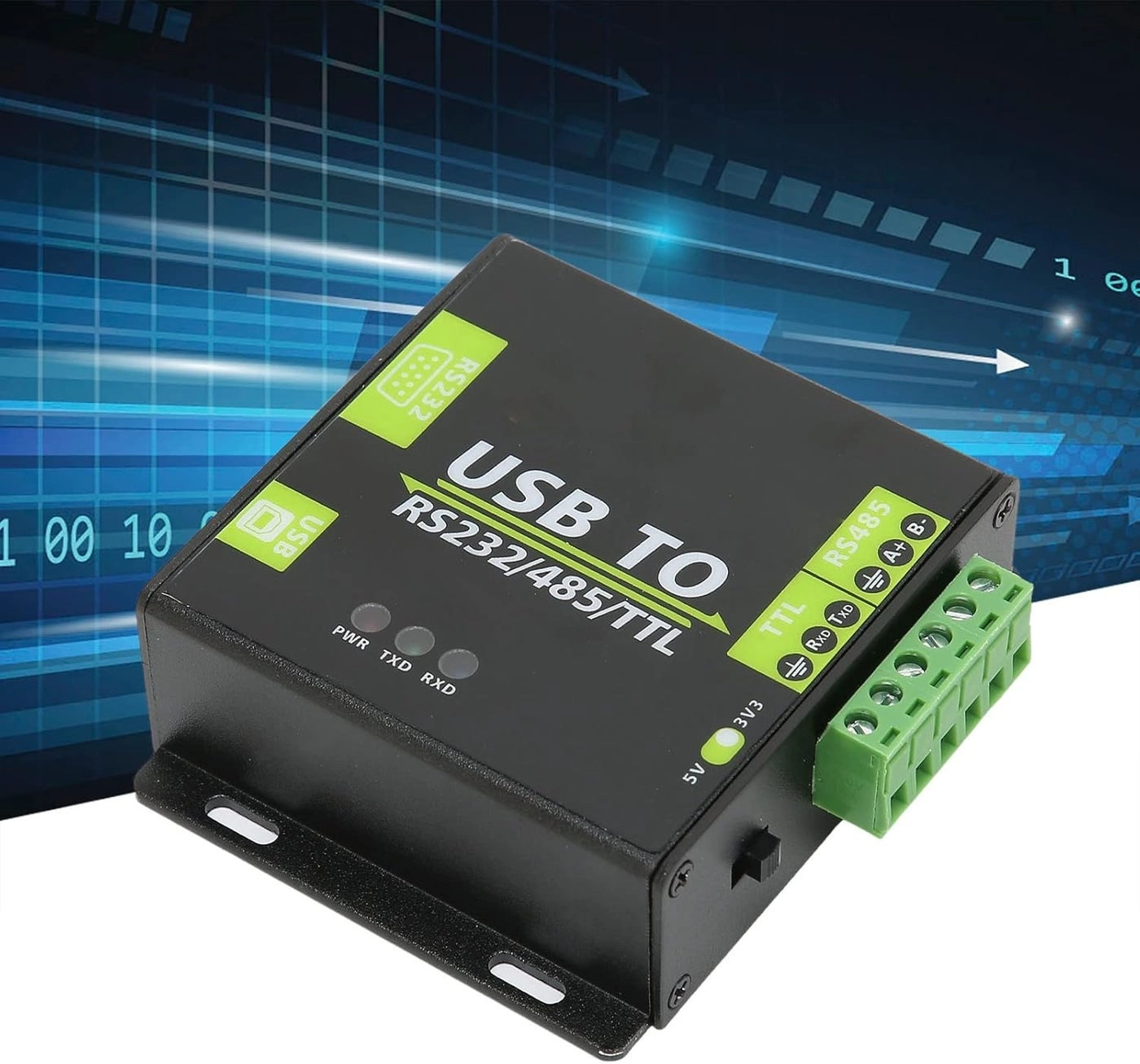

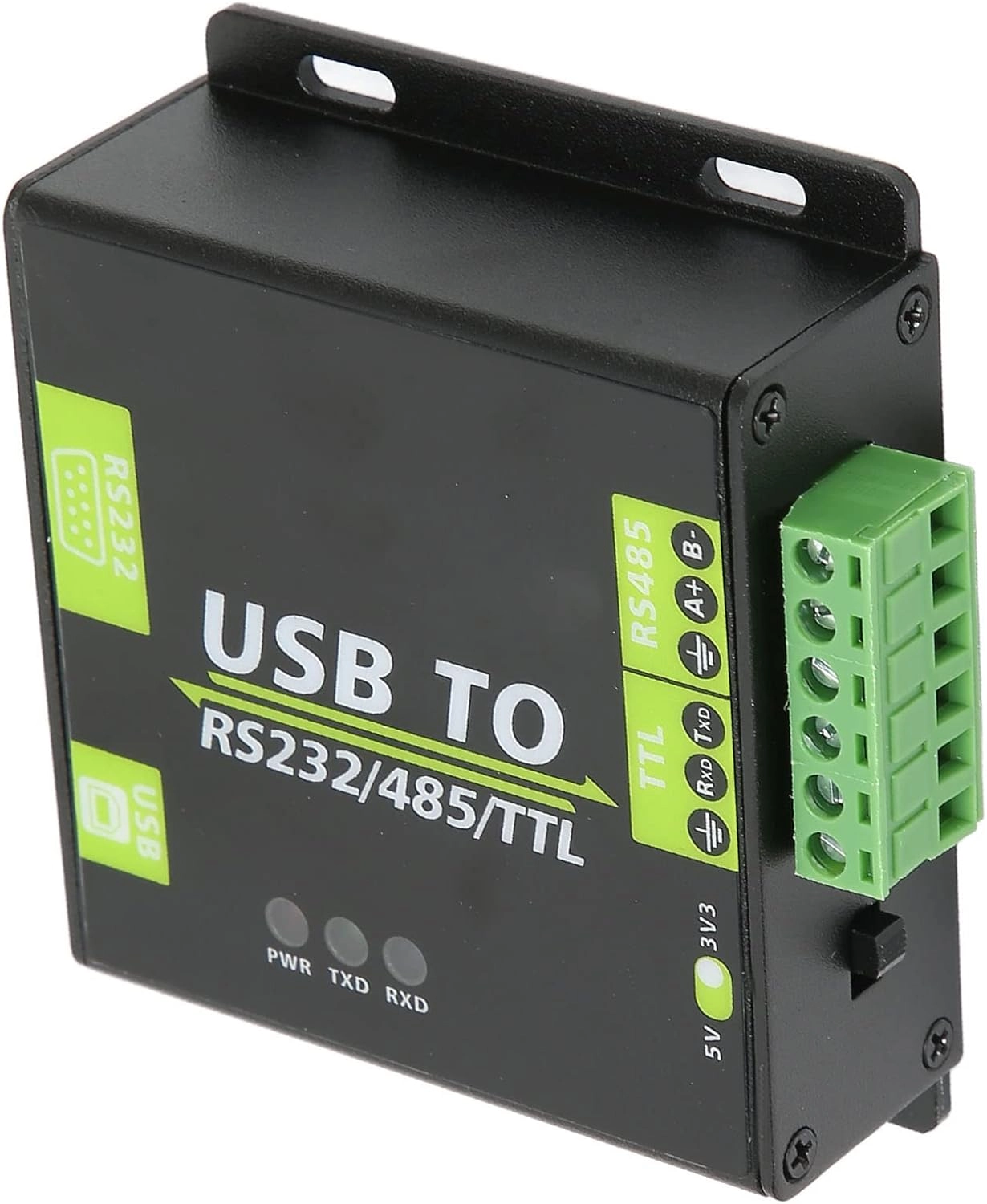

woobles USB To RS232/485/TTL Isolation Converter - FT232RL Fast Communication

Item Type: USB to RS232/485/TTL Isolation Converter Material: Aluminum Alloy Shell Product Type: Industrial Optical Isolation Converter Baud Rate: 300-921600bps Host Port: USB Device Port: RS485/RS232/TTL USB: Working Voltage: 5v Connector: USB-B Protection: 200mA Resettable Fuse, Isolated Output Transmission Distance: Approx. 5meters / 5.5yd RRS485： Connector: Screw Terminal Pins: A+, B-, GND Direction Control: Hardware Automatic Control Protection: 600w Antilightning Surge, 15KV ESD Protection (Reserved 120R Balance Resistance Pad) Transmission Distance: Approx. 1200meters / 1312.3yd Transmission Method: Point to Multipoint (Up to 32 Nodes, Repeaters Are Recommended for More Than 16 Nodes) RS232： Connector: DR9 Male Protection: Tvs Diode, Surge Protection, Esd Protection Transmission Distance: Approx. 15meters / 16.4yd Transmission Method: Point to Point TtlTTL(UART): Working Voltage: 3.3v/5v Connector: Screw Terminal Pins: TXD, RXD, GND Protection: Clamp Protection Diode, Antiover, Negative Voltage, Antishock Transmission Method: Point to Point Led Indicator: PWR: Red Power Indicator, on when There is a Usb Connection and a Voltage is Detected TXD: Green Tx Indicator, on when the Usb Port is Sending Data RXD: Blue Rx Indicator, on when the Device Port Sends Back Data Operating Environment: Temperature: -15℃-70℃ Humidity: 5%rh-95%rh Operating System: for 10 8.1 8 7 XP
