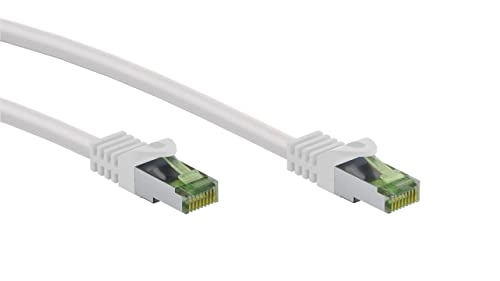

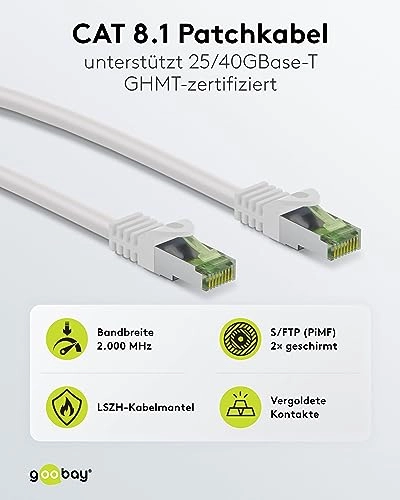

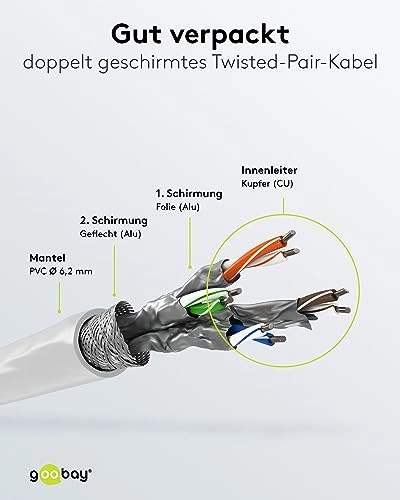

GHMT-certified CAT 8.1 patch cable, S/FTP (PiMF), white copper conductor, LSZH halogen-free cable sheath. Only in combination with the GHMT-certified components listed below, the flawless functionality of this patch cable for CAT 8.1 wiring distances is guaranteed. The transmission characteristics were tested in the 2-connector channel over a predefined transmission distance of 24 m according to the specifications for class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09): 2 connector channel copper, class I up. to 2 GHz GHMT Type Approval Balanced cord: Wentronic GmbH CAT 8 patch cord part no. CAT 8.1 – 1 m S/FTP PiMF white certified patch cable: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 6111111111111111111111111. 14, 61. 115, 61116, 61117 Certified Installation Cable: 61126, 61127, 61128 Certified Keystone Coupler: 61137 LAN Cable of 1m length supports 25GBase-T and 40GBase-T Ethernet net. 40 (40 - gigabit compatible) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T. With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has the 4x bandwidth of CAT-6A cables GHMT-certified for a transmission distance of 1 x 24 m. installation cable plus 2 x 3 m patch cord in 2-connector channel (8.1 standard class I with an operating frequency of up to 2 GHz) S/FTP total shielding: aluminium foil shielding for individual pairs of wires (PiMF) and aluminium braided shielding for the cable sheath both. equipped with RJ4 on side equipped 5 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection CAT-8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT. Low smoke and halogen-free LSZH cable jacket. The products are only marked with a paper label, plastic bags and plastic cable ties are avoided. Technical data: connections contact EIA/TIA-568B cable specification CAT 8.1 shielding class S/FTP (PiMF) AWG 26/7 (stranded) diameter cable sheath (approx.) 6.2 mm cable length: 1 m
