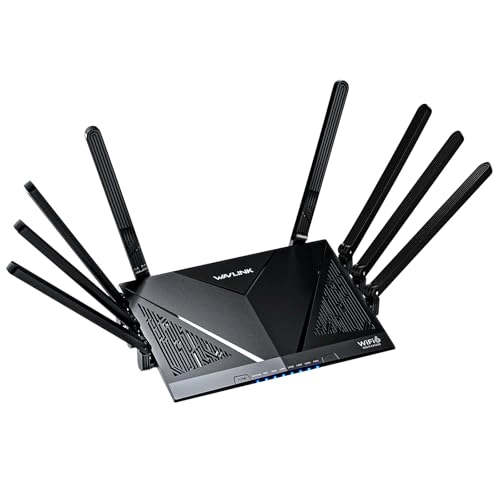

WAVLINK AX6000 Dual-band Mesh Router (MIGHTY-LX2)
The AX6000 router enhances your network with next-generation Wi-Fi capabilities. Offering combined wireless speeds of up to 1148 Mbps at 2.4 GHz and 4804 Mbps at 5 GHz, it ensures exceptional speeds and extensive omni-directional coverage. Equipped with dual-frequency 8 streams and support for 160 MHz bandwidth, this router enables seamless multitasking within large homes or offices. Whether it's sending emails, browsing the web, or engaging in bandwidth-intensive activities like online gaming or streaming 4K video, these tasks can be effortlessly completed.

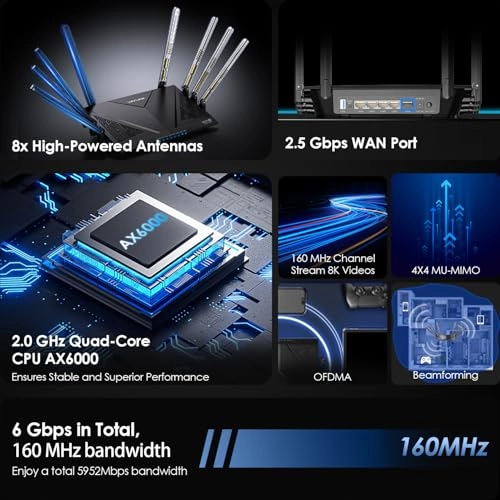

Enhanced Dual-Band Speed
Enjoy simultaneous high-speed connections with 5GHz (4804Mbps) and 2.4GHz (1148Mbps), totaling 5952Mbps bandwidth for fast browsing, streaming, gaming, and downloads all at once.
Full Gigabit Ethernet Ports
Benefit from a 2.5Gbps WAN Ethernet port for high-speed internet and four 1000Mbps Ethernet LAN ports to connect computers, game consoles, streaming players, and other wired devices effortlessly.
Super Speed USB 3.0 Port
With a SuperSpeed USB 3.0 Type-A port, this gaming router allows seamless sharing of media and storage across your local network, facilitating quick data transfers that are 10 times faster than USB 2.0.

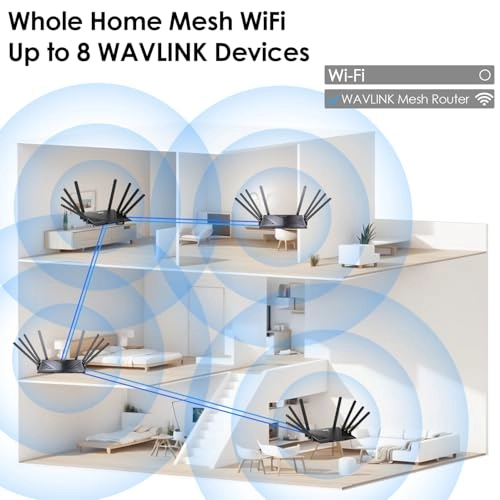

Optimal Wi-Fi Coverage & Seamless Mesh Networking
Enjoy broad Wi-Fi coverage up to 2000 sq.ft. and easily set up a mesh network using EverythingMesh technology, enabling the creation of seamless whole-home coverage with a single Wi-Fi name.
Reduced Latency Across Multiple Devices
Reduce network congestion with OFDMA+MU-MIMO, enabling seamless sharing among up to 32 devices concurrently. Enjoy improved networking and minimized latency for an optimized experience.

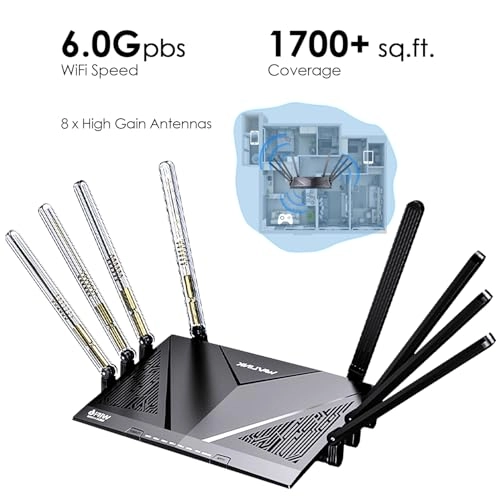

8x 5dBi Antennas with Beamforming
Expand your reach with 8x 5dBi high-gain antennas & beamforming technology for improved efficiency. Boost Wi-Fi signals to devices, amplify router reception & sensitivity for seamless linking.

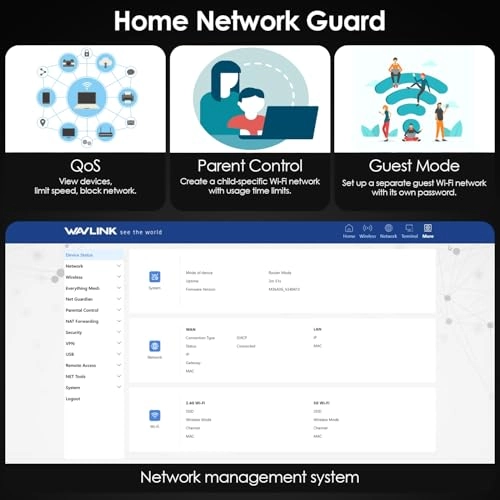

Enhanced Router Features
- Printer Server: Share printers across your network effortlessly.
- USB Tethering: Seamlessly share mobile phone network connections with the router.
- AdGuard Home: Block unwanted content like ads and malware from your network.
- Guest WiFi: Provide a separate network for guests with limited access.
- VLAN: Efficiently segment your network to improve data traffic management.
Basic Info
- Default IP: 192.168.20.1
- Login: http://wavlogin.link
- Mesh SSID: WAVLINK-Mesh XXXX
- Official Website:
- Technical Support: support@wavlink.com
Specification
- Model: WL-WN536AX6
- Ports: 1 x WAN(2.5Gbps); 4 x LAN(1000Mbps); 1 x USB-A 3.0; 1 x DC in
- Buttons: 1 x Power On/Off; 1 x Reset(6s); 1x Pair(2s); 1x Turbo
- Status LED(Blue): 4 x LAN, 1x WAN, 1x WiFi, 1x Power, 1x Status
- Power Adapter: DC 12V/1.5A 18W
- Antenna: 8 x 5dBi Omni Directional Antennas
- Wireless Standards: IEEE 802.11b/g/n/a/ac/ax
- Frequency Band/Speed: 2.4GHz(1148Mbps)+5GHz(4804Mbps)
- Wireless Security: WPA2/WPA3-PSK MIX, WPA/WPA2-Enterprise
- Unit Size(without antennas): 23.5 x 15.6 x 4cm /9.3 x 6.1 x 1.6in (L x W x H)
- Ethernet Cable Length: 100cm/39.4in
- Weight: 462g/16.3oz
Features
- Supports Wi-Fi 6 technology providing up to 4804 Mbps on 5.8 Ghz band and 1148 Mbps on 2.4 Ghz band.
- Supports reaching even further with 8 high-gain antennas equipped with Beamforming to ensure vast coverage.
- Supports EverythingMesh Simply form a Mesh network with a single Wi-Fi name for seamless whole-home coverage.

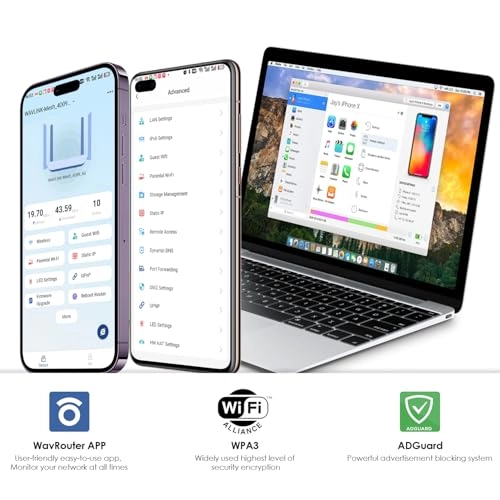

- Support APP remote management and control.
- Supports USB3.0 port: Share a storage drive with any connected device.

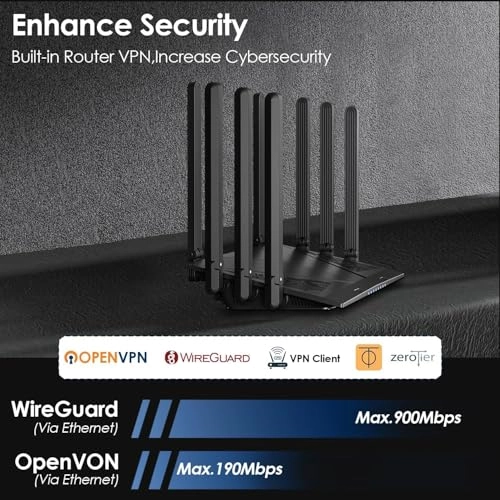

- Support PPTP, L2tp, OpenVPN, and WireGuard to encrypt connected network traffic, ensuring network security, even for public WiFi.
- 1x2.5G Ethernet for Internet, 4x1G Ethernet for computers, game consoles, streaming players and other wired devices.
In the Box
- 1 x AX6000 Dual-band Mesh Router
- 1 x Power Adapter
- 1 x Ethernet Cable
- 1 x Quick Start Guide
