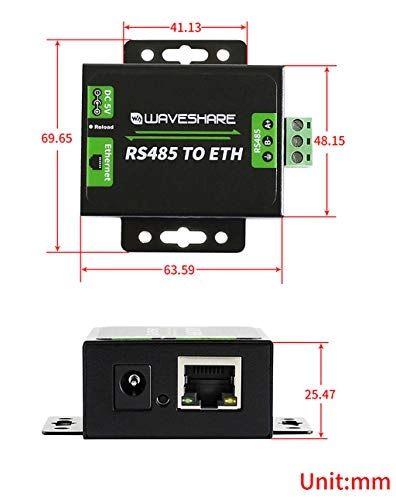

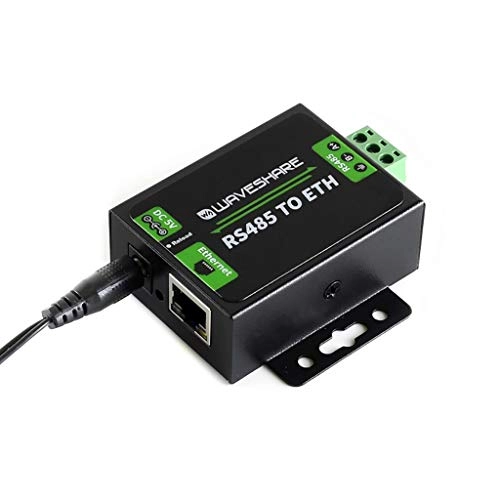

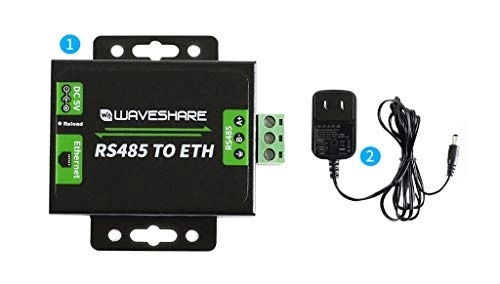

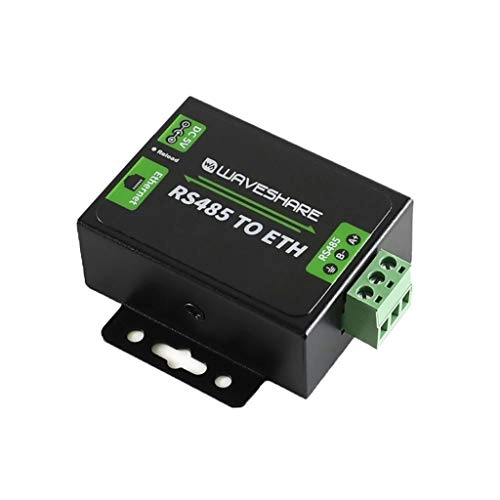

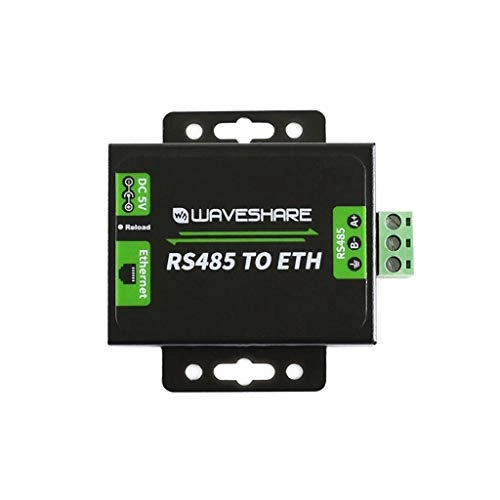

Waveshare RS485 to Ethernet Converter

The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage. Features

• M0 series 32-bit ARM processor, fast speed, high efficiency.

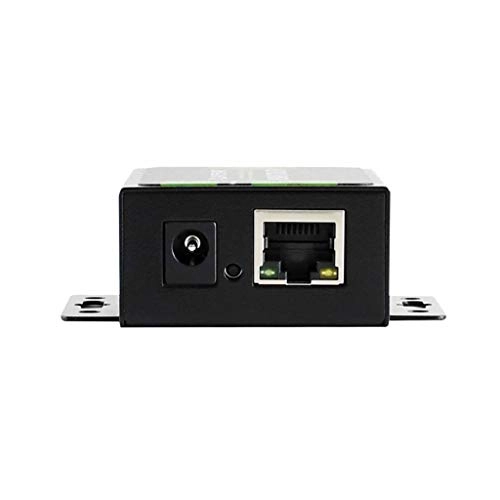

• 10/100M Auto-MDI/MDIX Ethernet interface, regardless of cross-over or straight-through cable.
• Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space.
• Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
• Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software.
• Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
• Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
• Supports customized webpage, allows user to customize the module configuration page
• Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
• KeepAlive mechanism, detects broken connection, auto re-connecting
• Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time.
• Supports DNS domain name resolution, configurable DNS server
• Supports DHCP, auto-obtained IP or static IP.
• Firmware is upgradable via the network
• Restore to factory settings via software and/or hardware
• Comes with default MAC address, which is customizable
• Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
• Example code: host computer (socket), VB, C++, Delphi, Android, iOS, etc.
