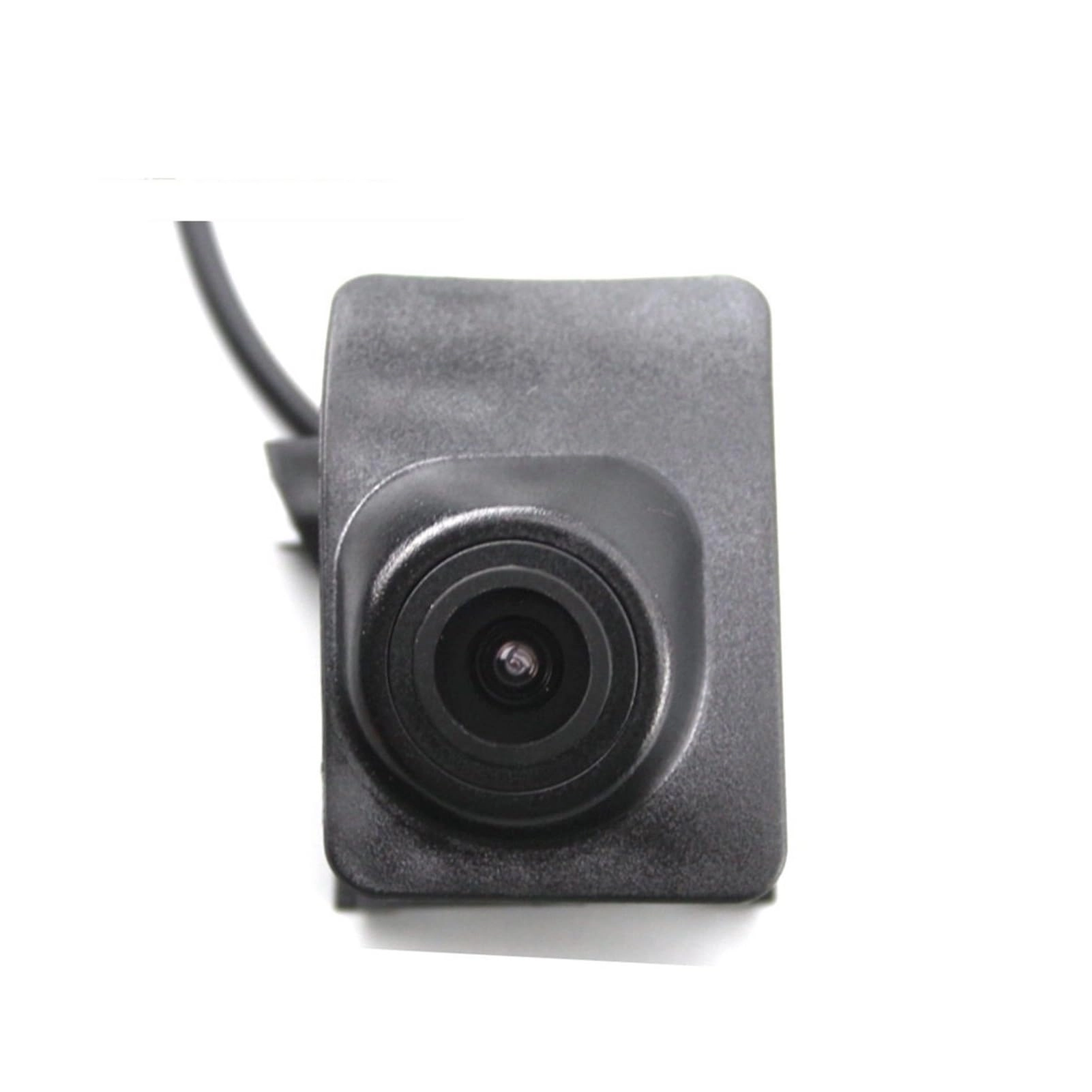

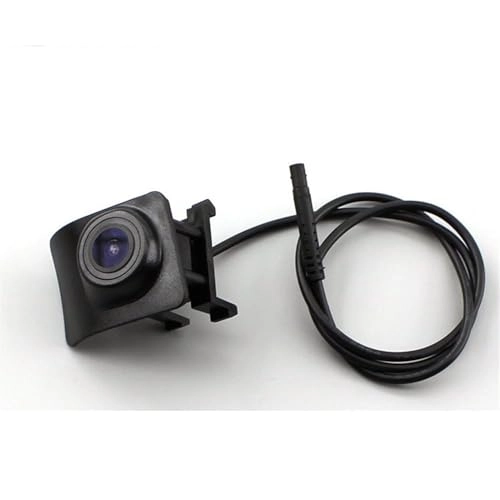

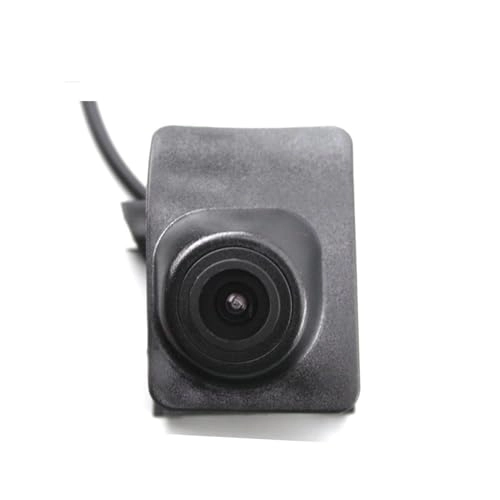

For Koleos logomark camera
WithSO/N/YCCD camera is better than CCDCamera
Please check your car front logo size before you buy,thanks.because in different contries,There may be different from the car model.
Notes: the frontlogo is default without guide line ,if you need guide line for logocamera ,please leave message to us,thanks.
Cable decription:
Specification for car rear camera
Image sensor
1/3" Color CCD(default) for 1/3" CCDSONY Color
Signal system
NTSC/PAL(NTSC will be sent as default ,if you need PAL ,
please leave message to us,thanks)
Horizontal resolution
520 TV lines 600 TV lines
Effective pixels
720x480 728x512
Lens viewing angle
wide angle
Minimum illumination
<;0.1LUX 0.05LUX
IP Rate IP67
Video output RCA, 1.0Vp - p,75ohm
Image pipeline features Auto exposure,AWB,AGC,Auto flicker detection and cancellation
Image Reverse Left-Right mirror
White Balance Automatically
AGC&BLC Automatically
S/N ratio Better than 48 dB(AGC OFF)
Shutter speed 1 / 60 - 1 / 15,000sec
Installation hung external
Power supply DC 12V
Current consumption 85-115mA
Remarks
Color/Warterproof/Shockproof
Operating temperature
-20 to 70 degree Celsius,RH95%
Storage Temperature
-30 to 60 degree Celsius,RH95%
Main Features
1,High Clear , Night Vision,Water Proof, Plastic material.
2,wide degree view angle, very small, and easy for installing
3,Low illumination and fill light automatic, waterproof
4,Special Designed For camera easy to install and run
5,Designed according to the license light hole install.
6,All you need is a screen and video input port.
wire camera:
1 x Car Rear View Camera
1 x6M video cable
1 x power supply cable
1 x user manual
Provides Clear Rear Visibility: This dedicated car reverse camera delivers a wide-angle, view behind your vehicle. It helps drivers park safely and avoid obstacles, improving confidence during reversing
Tailored for Seamless Fit: The vehicle specific backup camera kit integrates perfectly with your car’s rear design. It installs in the original mounting location, maintaining a clean, factory-style appearance
Reliable Real-Time Imaging: This custom fit rear view camera provides smooth, real-time video feed to your dashboard display. It enhances depth perception for safer and more accurate parking and reversing
Durable and Weather-Resistant: Built for outdoor conditions, the OEM style parking camera system resists rain, dust, and vibration. It delivers long-lasting performance, ensuring your reversing camera works reliably in all weather conditions
