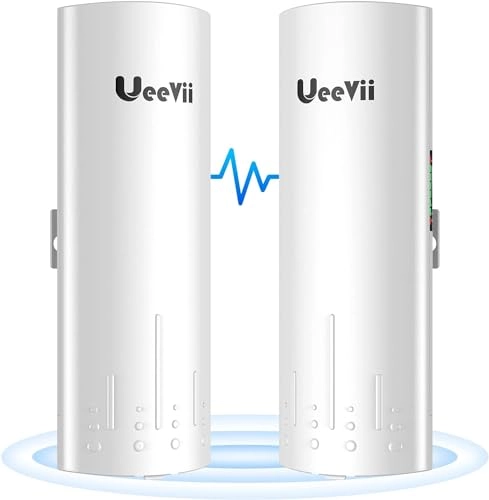

UeeVii CPE450

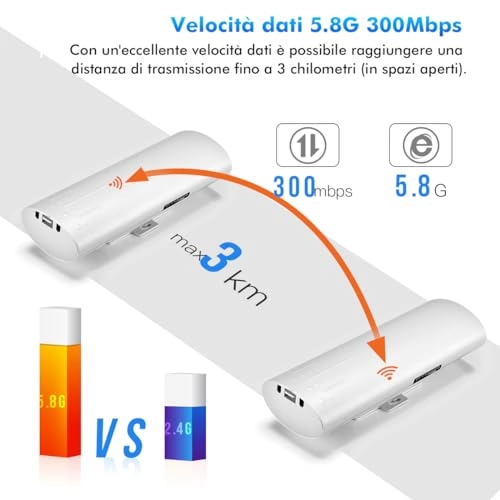

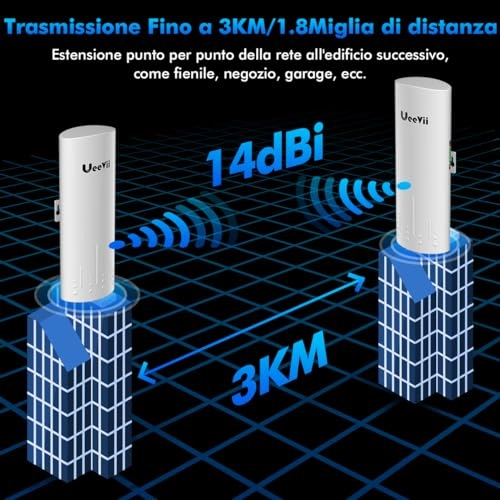

CPE450 is a long-distance 5.8G wireless transmission equipment. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point-to-multipoint interconnection. The working data link layer realizes the interconnection and transmission of local area networks. The distance can be up to 3km. Outdoor CPE Function: 1. Long-distance 5.8G wireless transmission equipment 2.Support point-to-point, point-to-multipoint mode 3.Transmission distance up to 3km(Barrier-Free) 4.WDS networking mode, video network dual compatible. 5. Dialing to set the transmitter and receiver, and also support the PC to modify the IP settings. 6.Dynamic MIMO power saving mode (DMPS) and automatic power-saving transmission (APSD) Specification: Master control： AR9344 DRAM： DDR2 64MByte FLASH：8MByte Wired Interface：10/100Mbps LAN*2 Transfer method: Direct Sequence Spread Spectrum (DSSS) Modulation: OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK Network Standard：IEEE802.11n,IEEE802.11a ,IEEE802.3u Supporting agreement: CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5 Frequency Range:4900～6100MHz Power consumption: ≤3W Power scheme: POE 24V 1A Antenna gain:14DBi Management settings：WEP management，Telnet，Serial Encryption：WEP encryption 64/128bits, WPA, WPA2, 802.1x Operating temperature：-30℃～65℃ Package Include: 2 * CPE450 Bridge 2 * POE Power Adapter (24V) 2 * Metal Hoop 1 * User Manual The FCC ID: 2A6EJ-CPE450, This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Accurate Operating Frequencies: The frequency range that complies with FCC Rule Parts 15E is 5180.1-5240.0 MHZ and 5745.0-5825.0 MHZ.
