Ubiquiti USW-PRO-XG-10-POE 10-ports

Name: Ubiquiti USW-PRO-XG-10-POE 10-ports
Brand: Ubiquiti
SKU: 855937
Availability: InStock

Best offer

AED

3 799⁰⁰

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 10
10G Ethernet (copper) ports quantity: 10
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Throughput: 120Gbit/s
DHCP features: DHCP relay, DHCP server, DHCPv6 snooping
Power over Ethernet 4PPoE (PoE++) ports quantity: 10
Static route: Yes
Port mirroring: Yes
SFP+ module slots quantity: 2
Switching capacity: 240Gbit/s
MAC address table: 32000entries
Jumbo frames support: Yes
Forwarding rate: 179Mpps
Multicast support: Yes

Specifications

Features

Quality of Service (QoS) support

✓

Rack mounting

✓

Stackable

✓

Virtual LAN features

Interface-based VLAN, Voice VLAN

Product colour

Grey

Packet buffer memory

2 MB

SFP+ module slots quantity

Switching capacity

240 Gbit/s

MAC address table

32000 entries

Jumbo frames support

✓

Forwarding rate

179 Mpps

Multicast support

✓

Static route

✓

Throughput

120 Gbit/s

Switch layer

L2/L3

Weight & dimensions

Weight

4600 g

Height

44 mm

Depth

285 mm

Width

442.40 mm

Power

Power connector

AC/DC

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

520 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

15.40 W

Total Power over Ethernet (PoE) budget

400 W

Power over Ethernet (PoE) type supported

PoE++ (4PPoE)

Power source

AC/DC

Redundant power supply (RPS) support

✓

Wireless LAN features

IGMP snooping

✓

Design

Housing material

SGCC

Reset button

✓

LED indicators

System

Display type

LCM

Form factor

Backlight display

✓

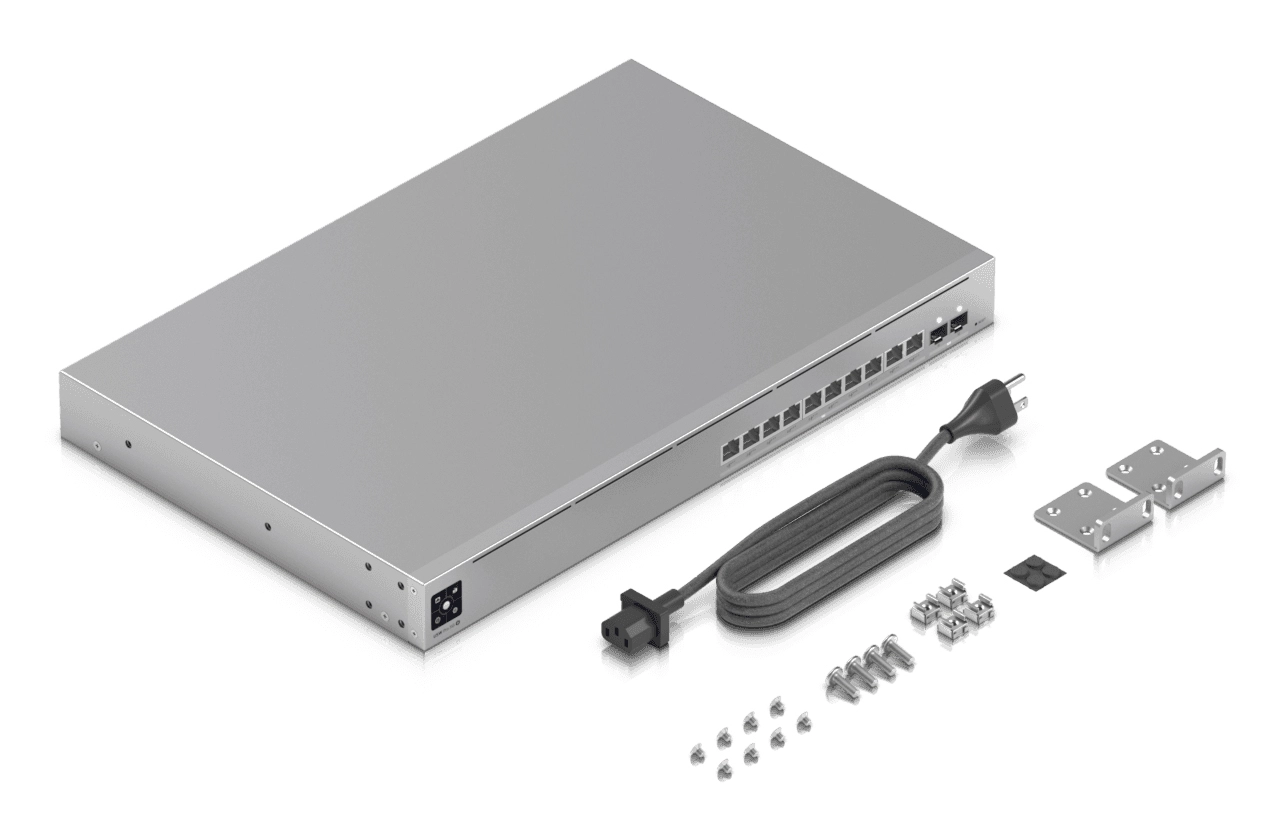

Packaging content

Manual

✓

Cables included

Power

Power supply included

✓

Rack mount kit

✓

Network

VLAN support

✓

Number of VLANs

1000

IPv4 routes

12000

Rate limiting

✓

10G support

✓

Flow control support

✓

Port mirroring

✓

Ports & interfaces

Power over Ethernet 4PPoE (PoE++) ports quantity

10G Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Technical details

Switch type

Managed

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)

Security

Broadcast storm control

✓

Loop protection

✓

DHCP features

DHCP relay, DHCP server, DHCPv6 snooping

Product Details

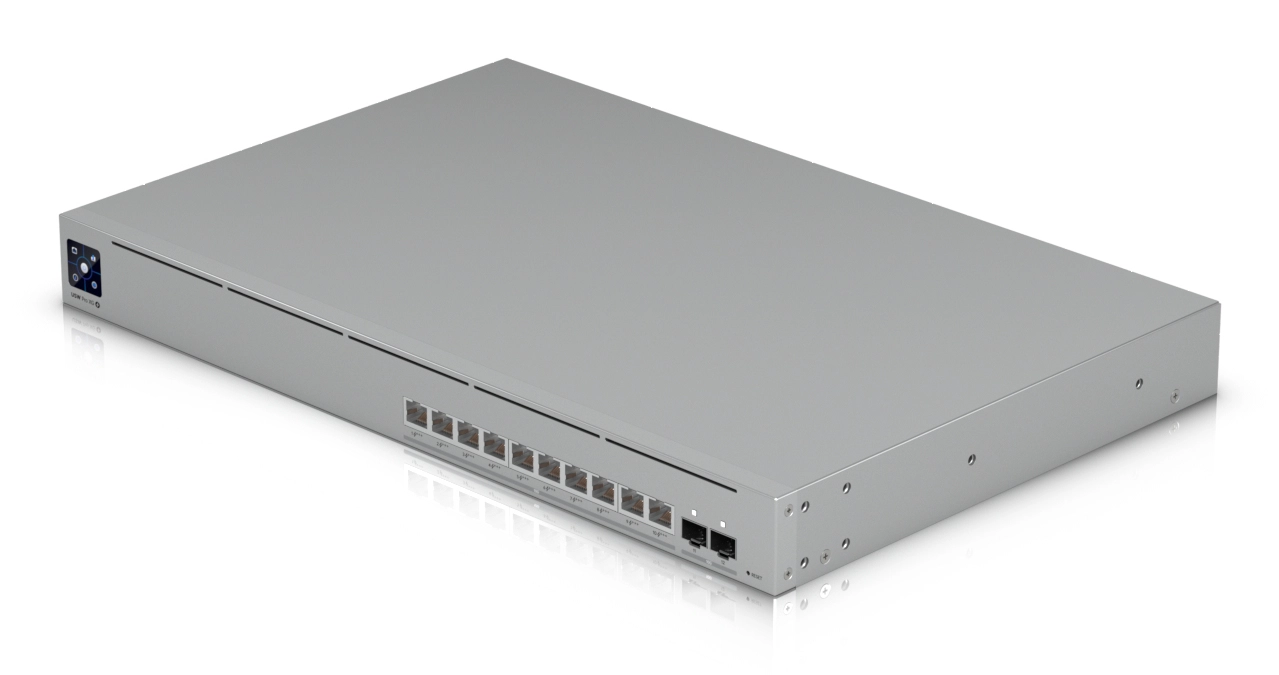

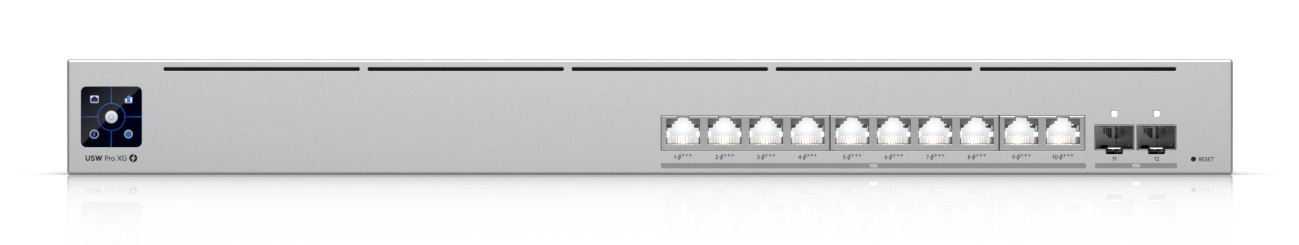

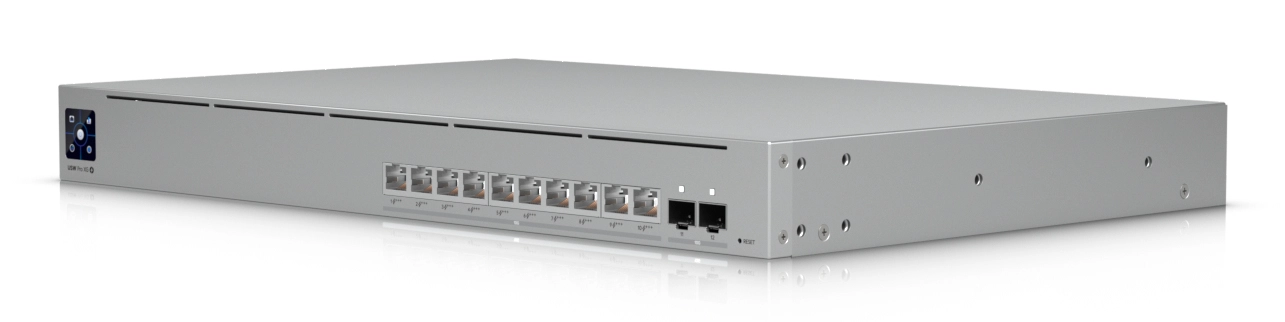

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Files

User manual

mmo_131062253_1762160209_1078_1349090.pdf

PDF• 485 KB
