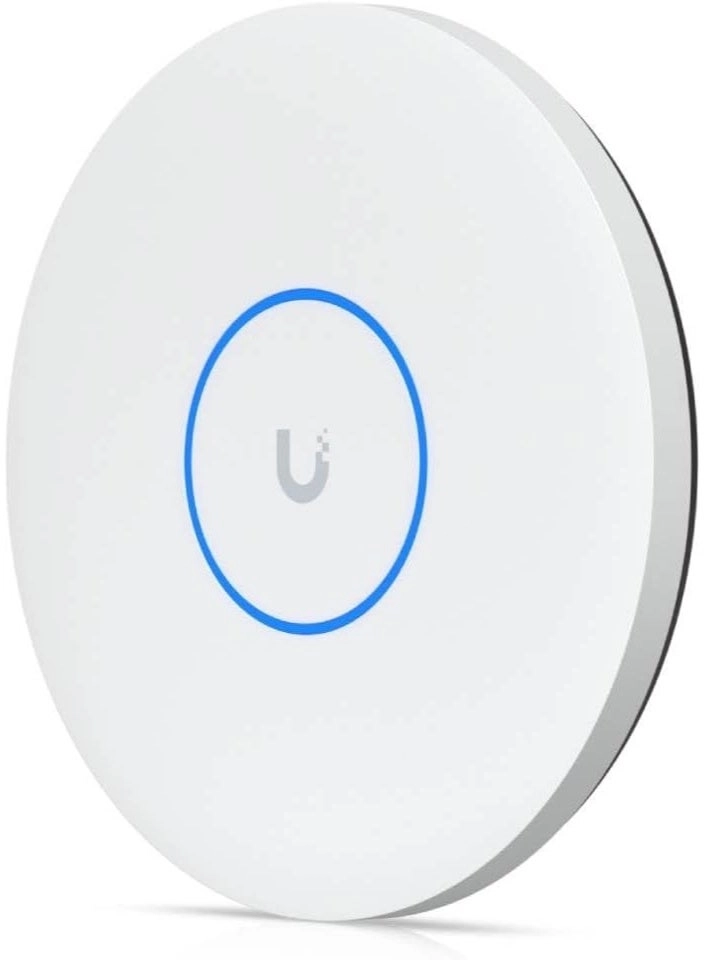

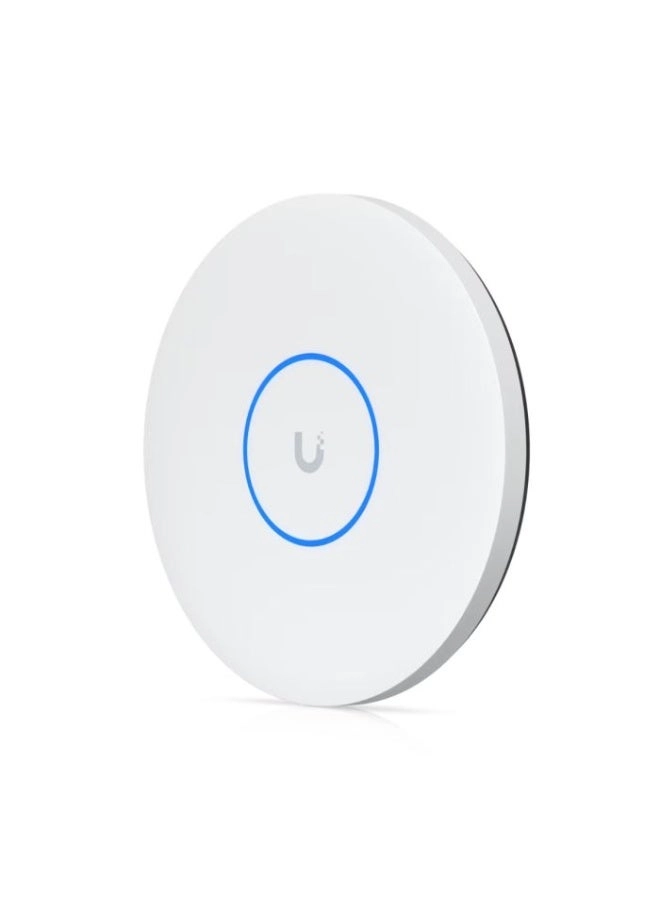

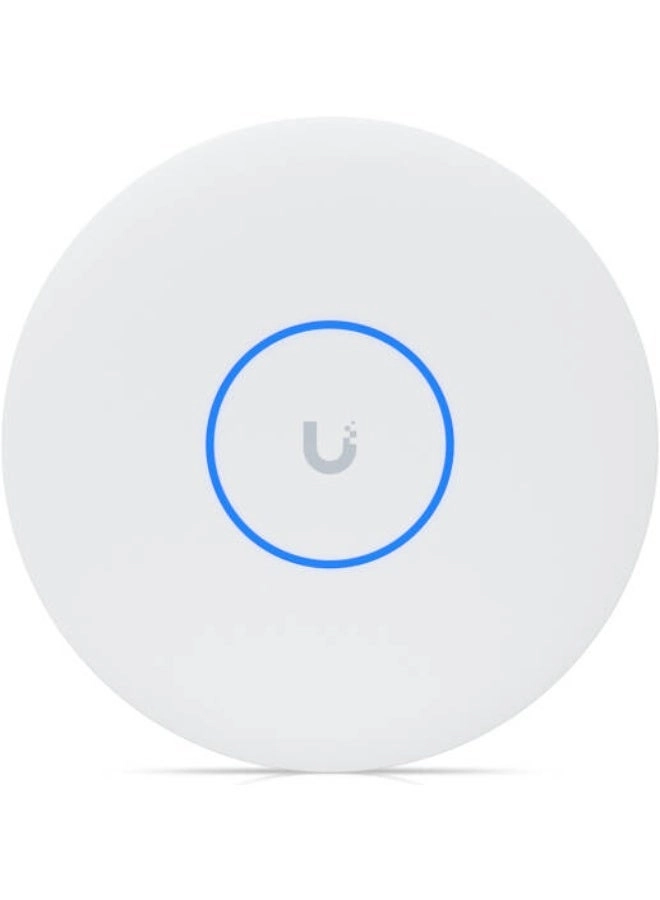

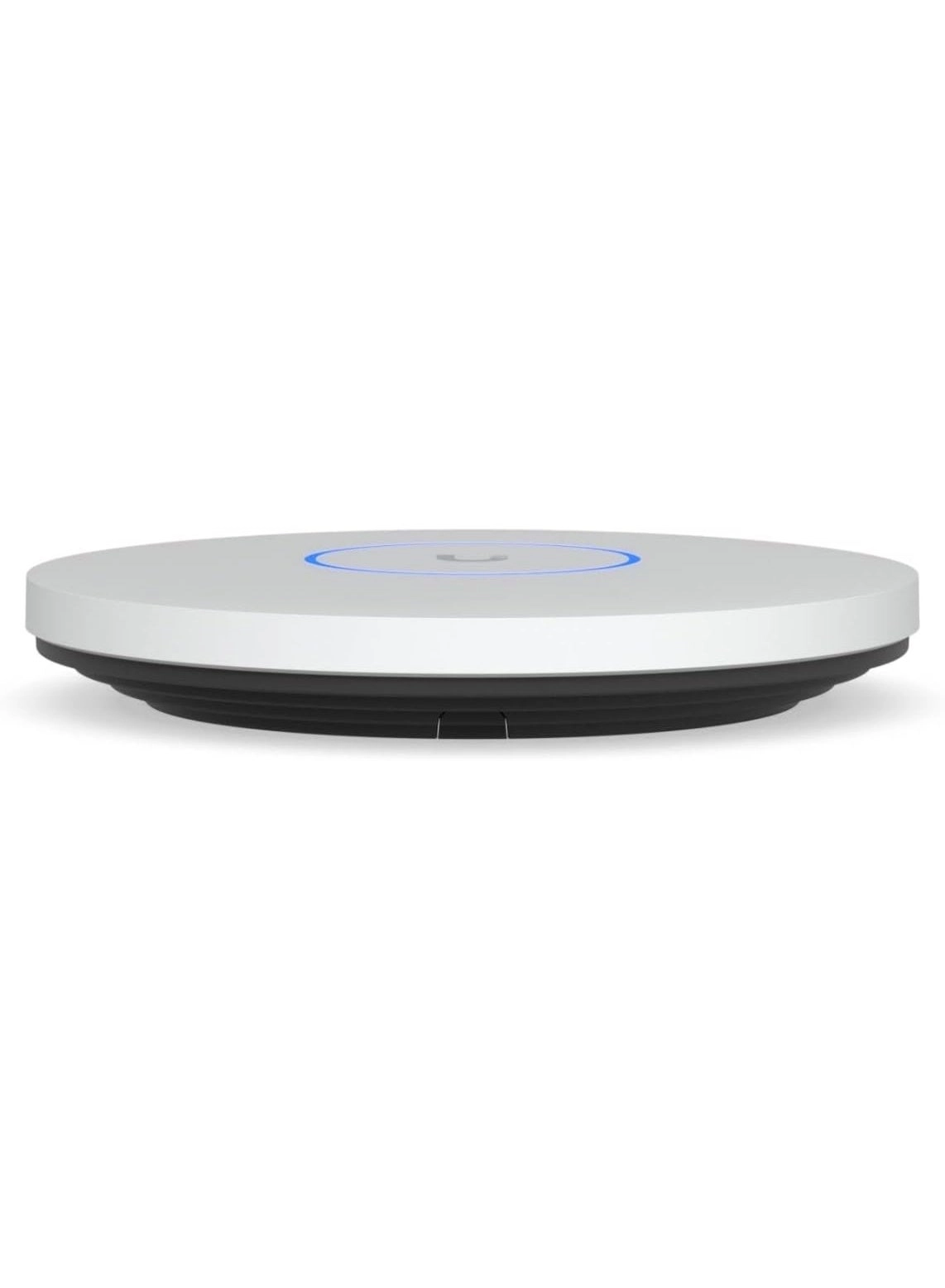

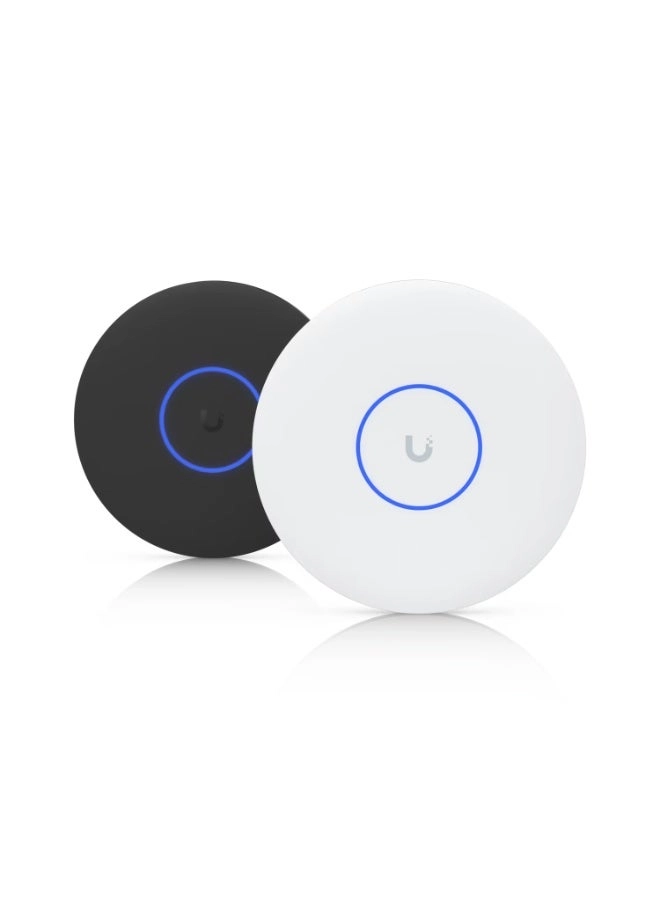

Ubiquiti U7 Pro XG

Name: Ubiquiti U7 Pro XG
Brand: Ubiquiti
SKU: 347924
Availability: InStock

Best offer

AED

899⁰⁰

AED

1 299⁰⁰

-30%

Key Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: Yes
Maximum data transfer rate (2.4 GHz): 688Mbit/s
Maximum data transfer rate (6 GHz): 5800Mbit/s
Maximum data transfer rate (5 GHz): 8600Mbit/s
Spatial streams: 8
Fit AP mode features: Hotspot 2.0
Fast roaming: Yes
Antenna gain level (max): 6dBi
Maximum data transfer rate: 8600Mbit/s
Placement: Ceiling, Wall
Band steering: Yes
Frequency band: 2.4, 5, 6 GHzGHz
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)

Specifications

Features

Security algorithms

PPSK

MIMO

✓

Product colour

Black

Antenna gain level (max)

6 dBi

Maximum data transfer rate

8600 Mbit/s

Placement

Ceiling, Wall

Band steering

✓

Frequency band

2.4, 5, 6 GHz

Fast roaming

✓

Fit AP mode features

Hotspot 2.0

Spatial streams

Maximum data transfer rate (6 GHz)

5800 Mbit/s

Maximum data transfer rate (5 GHz)

8600 Mbit/s

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

5 GHz

✓

6 GHz

✓

2.4 GHz

✓

Weight & dimensions

Weight

800 g

Height

215 mm

Depth

32.50 mm

Width

215 mm

Power

Power consumption (max)

29 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) type supported

PoE+, PoE++ (4PPoE)

Design

Housing material

Metal, Polycarbonate (PC)

Reset button

✓

LED indicators

Status

Computer system

Antenna type

Internal

Packaging content

Mounting kit

✓

Network

Networking standards

IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v

VLAN support

✓

MIMO type

Multi User MIMO

Rate limiting

✓

Ethernet LAN data rates

1000, 2500, 5000

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Technical details

Compliance certificates

CE, Federal Communications Commission (FCC), Industry Canada (IC)

Product Details

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Files

User manual

mmo_129543925_1741879703_2344_298998.pdf

PDF• 463.1 KB
