Printing distance: 2-5mm
Power input: DC-9V/2A
Charging interface: Type-c

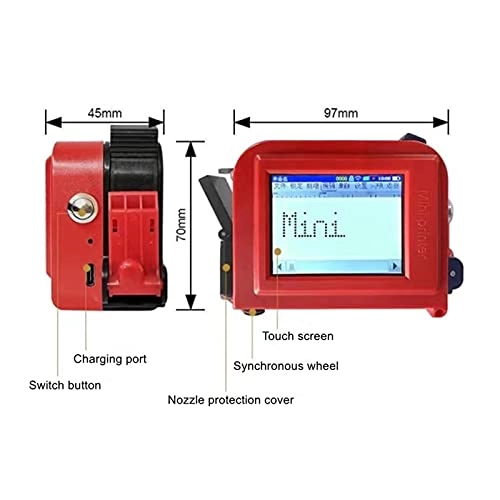

Product size: 97*70*45mm
System language: Chinese, English
Printing content: time, date, count, QR code, barcode, LOGO, etc.
Picture format: 24-bit image in BMP format
Picture input method: data cable connected to computer
Printing material: wood, carton, pipe, cable, metal, plastic, uneven surface, etc

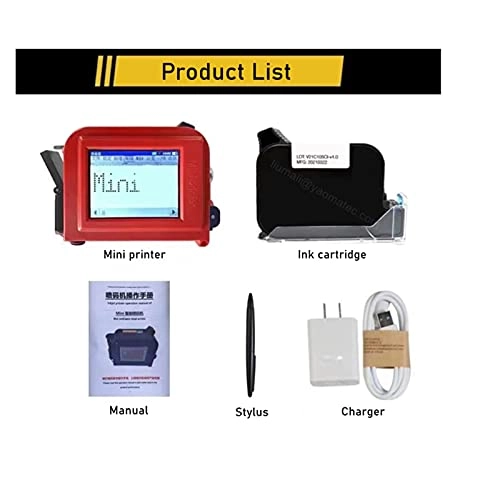

Package List:
How to use phone WIFI connection
step 1:
Find the customer service for the APP installation package, and install the APP on the phone
Step 2:
Turn on the machine, connect the WiFi name as: Mini Print,
Enter the password: 87654321, wait for the connection to be successful and then print it
Method:
Power:
Long press the print switch for 4S, two beeps will be heard after the machine is turned on, and the WIFI inside the machine will be turned on. After the machine is turned on, the three indicator lights are on and the digital tube is on.
Shut down:
Long press the print switch for 4S, a beep prompts to shut down and the light goes out.
Print:
After turning on, the print head is aligned with the printing position, the main wheel under the print head is close to the printing surface, and after clicking the print switch, let go, with a beep, slide from left to right to make the main wheel rotate and print. After printing, it will beep twice.
Notice:
1. There is a slight color difference between the computer and the mobile phone.
2. The product size is measured manually, there may be an error of 1-2cm.
FQA:
Q: How high can I print the font?

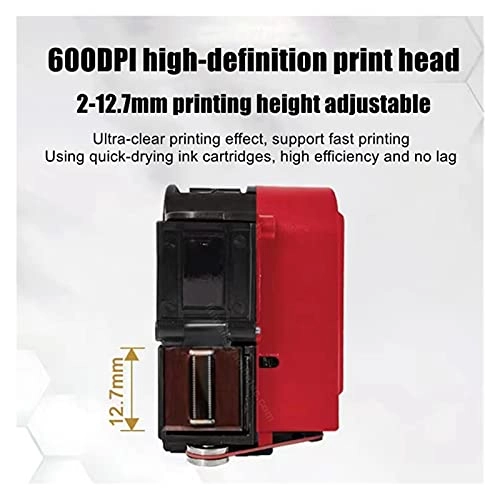

A: The print font height is 2-12.7mm, and the length is not limited.
Q: How to install the ink cartridge?
A: The ink cartridge is installed and the machine is turned off. Open the cover of the ink cartridge and align the ink jet port of the ink cartridge with the print surface. Install it up and lock the cartridge. Remove the ink cartridge from the machine after use and cover the ink cartridge with the cover.
Q: After the ink cartridge is used up, can it be added quickly?
A: Yes, our original ink cartridges are available for sale. If you need more ink cartridges, you can visit our store.
Q: How long does it take to dry the ink?
A: Generally 3S is needed, but for some glasses, printing on plastic may require 5-6S.
Q: What is the print distance of the machine?
A: The distance of the print from the nozzle is 2-5 mm
Q: The font is not clear when printed, and the ink is blurred.
A: It is not necessary to pressurize the inkjet machine when printing. It is only necessary to place the inkjet machine on the plane to be printed, and then the inkjet printer does not need to move the ink.
Q: When I print, I need to print the QR code, text, time, and logo at the same time. Can it be achieved?
A: Yes. These can all be achieved.
Q: What functions can this printer implement?
A: There is also a counting function, which can set the count and automatically print different count numbers for each print product.
