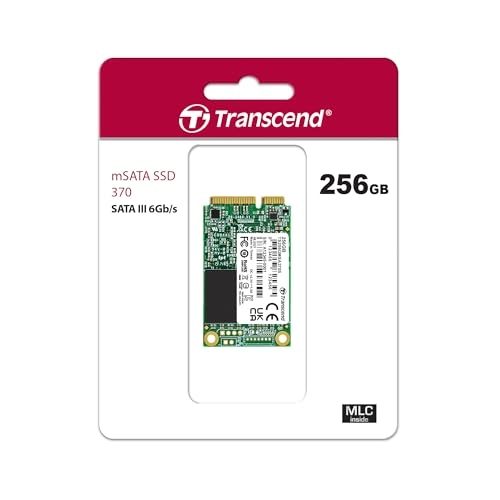

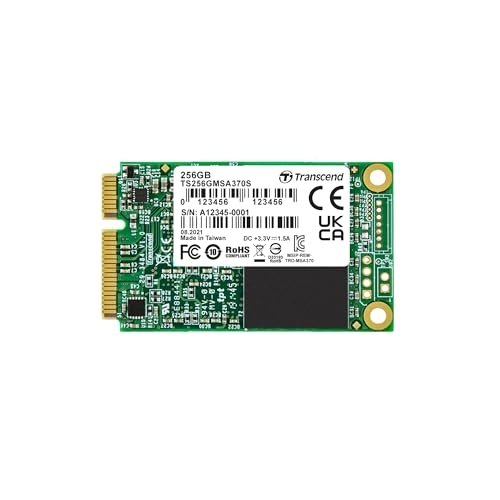

Transcend TS256GMSA370S - 256GB mSATA

Name: Transcend TS256GMSA370S - 256GB mSATA
Brand: Transcend
SKU: 367723
Availability: InStock

Best offer

AED

440²²

Key Features

NAND flash type: MLC (Multi Level Cell)
Random read (4KB): 70000IOPS
Random write (4KB): 75000IOPS
Component for: Laptop
Data transfer rate: 6Gbit/s
S.M.A.R.T. support: Yes
Power consumption (average): 2.38W
Power consumption (sleep): 0.3W
SSD capacity: 256GB
SSD form factor: mSATA
Internal: Yes
Compliance certificates: RoHS
TRIM support: Yes
Hardware encryption: Yes
Memory type: MLC

Specifications

Features

Mean time between failures (MTBF)

1500000 h

JEDEC standard

✓

Vibration resistance

5 G

Native Command Queuing (NCQ)

✓

Product colour

Black

Data transfer rate

6 Gbit/s

S.M.A.R.T. support

✓

Component for

Laptop

NAND flash type

MLC (Multi Level Cell)

Weight & dimensions

Weight

8 g

Height

50.80 mm

Depth

4.85 mm

Width

29.90 mm

Power

Operating voltage

3.30 V

Power consumption (average)

2.38 W

Power consumption (sleep)

0.30 W

System requirements

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows 8.1

Other features

TBW rating

740

Storage

SSD capacity

256 GB

SSD form factor

mSATA

Design

Internal

✓

Ports & interfaces

Interface

Serial ATA, Serial ATA III

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Operating relative humidity (H-H)

0 - 95 %

Operating vibration

3 G

Technical details

Certification

BSMI, CE, CE/FCC/BSMI, FCC

Compliance certificates

RoHS

Memory

ECC

✓

Security

TRIM support

✓

Hardware encryption

✓

Logistics data

Harmonized System (HS) code

84717070

Solid state drive

Memory type

MLC

Read speed

530 MB/s

Write speed

400 MB/s

Random write (4KB)

75000 IOPS

Random read (4KB)

70000 IOPS

Product Details

Supporting the next-generation Serial ATA interface and built around a powerful controller, Transcend's SATA III 6Gb/s MSA370 mSATA SSDs deliver blazing fast performance and long-term reliability. The compact mSATA form factor makes it perfect for use in space-restricted portable devices such as Ultrabooks, tablet PCs, and slim servers. - MLC flash-based performance and reliability. - Supports Intel® Smart Response Technology (ISRT). - DDR3 DRAM cache. - Maximizes notebook battery life when not in use thanks to full support of SATA Device Sleep Mode (DevSleep). - S.M.A.R.T., TRIM and NCQ support to maintain a healthy, efficient SSD. - Built-in wear-leveling algorithm ensures highly reliable of data transfer. Intel Smart Response Technology. Transcend's SATA III 6Gb/s MSA370 mSATA SSD supports Intel® Smart Response Technology (ISRT), which allows you to configure your computer system with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive for maximum storage capacity while delivering an SSD-like overall system performance experience. ISRT works by monitoring which programs and files you access most frequently and stores them on the SSD. As a result, application launch speed and overall system responsiveness are significantly improved, while the large capacity of the hard drive is free to store all your other programs and files. In this configuration, only one drive letter is displayed; no additional drive letter is required for the SSD used as cache.
