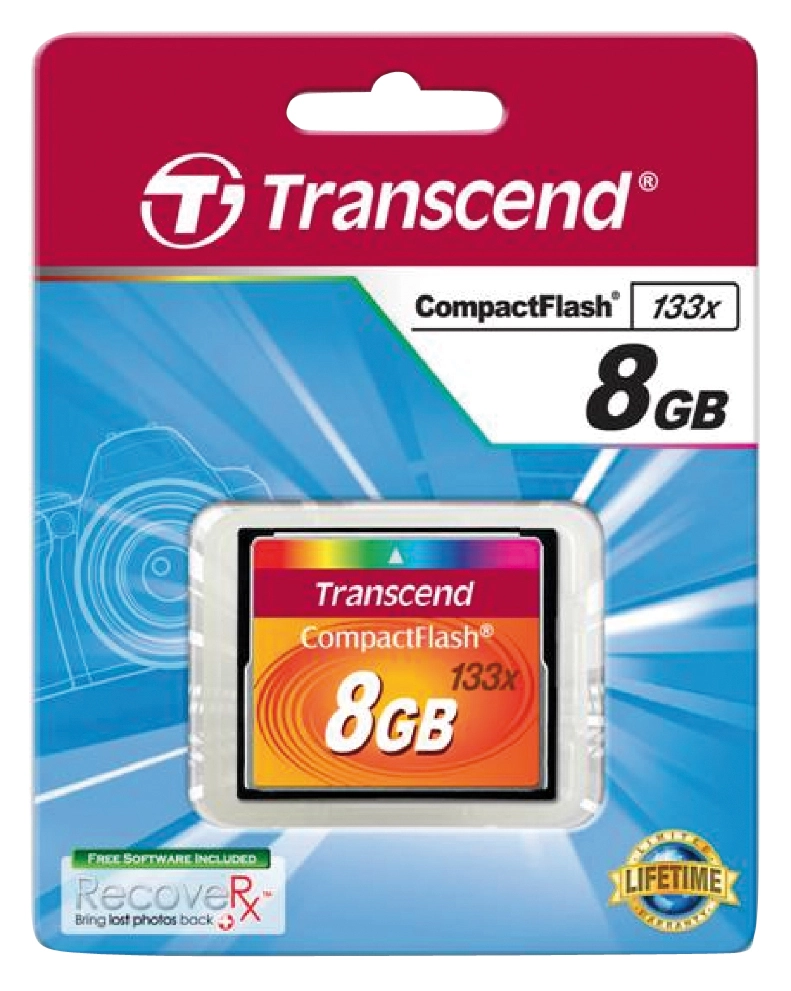

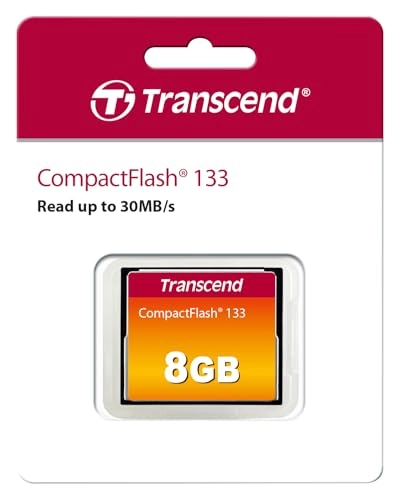

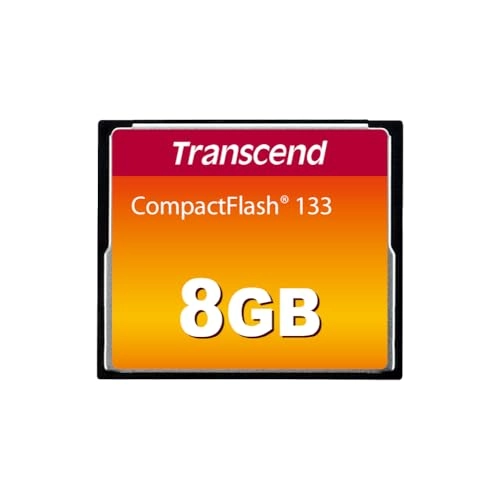

Transcend CompactFlash Memory Card 133x - 8GB

Name: Transcend CompactFlash Memory Card 133x - 8GB
Brand: Transcend
SKU: 244323
Availability: InStock

Best offer

AED

190⁵¹

Key Features

Endurance: 2000000cycles per logical sector
Flash card type: CompactFlash
Capacity: 8GB
Memory adapter included: No
X-speed rating: 133
Internal memory type: MLC
Memory voltage: 3.3V
Read speed: 30MB/s
Write speed: 12MB/s
Product colour: Black
Interface type: 50pin
Power consumption (read): 88.6mA
Power consumption (write): 137.1mA
Dimensions (WxDxH): 36.4 x 42.8 x 3.3mm
Width: 42.8mm

Specifications

Features

Capacity

8 GB

Country of origin

China

Mean time between failures (MTBF)

1000000 h

Plug and Play

✓

Vibration resistance

20 G

Product colour

Black

Weight & dimensions

Width (imperial)

0.79 "

Weight

11.40 g

Height

130 mm

Depth

3.30 mm

Width

42.80 mm

Power

Power consumption (write)

137.10 mA

Power consumption (read)

88.60 mA

Other features

Expansion voltage

3.30 V

Dimensions (WxDxH)

42.80 x 3.30 x 36.40 mm

Endurance

2000000 cycles per logical sector

Ports & interfaces

Interface type

50pin

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Operating shock

1500 G

Technical details

Storage

8 GB

Certification

CE, CE/FCC/RCM/EAC, FCC & BSMI, RoHS

Flash card type

CompactFlash

Capacity

8 GB

Memory adapter included

Memory

X-speed rating

133

Internal memory type

MLC

Memory voltage

3.3

Logistics data

Harmonized System (HS) code

85235190

Solid state drive

Read speed

30 MB/s

Write speed

12 MB/s

Product Details

Transcend’s CF150 CompactFlash card is compliant with CompactFlash specification V4.1, and uses strong error correction code (ECC) which can correct up to 24 bit errors per 1 kilobyte. Engineered for long life and maximum durability, the CF150 memory card adopts global wear leveling for better protection against uncorrectable errors, and supports S.M.A.R.T functionality and Security Command. The CF150 CF card is offered with an extended operating temperature range of -25°C to 85°C. It supports Ultra DMA mode 5 and three operation modes, including PC Card Memory Mode (PCMCIA), PC Card IO Mode, and True IDE Mode. The CF150 will appear as a fixed disk when used in True IDE mode, making it perfect for use in an industrial environment. Features - Rugged design - Built with superior quality MLC flash memory - Hardware ECC BCH 24bit /1K bytes - Supports StaticDataRefresh & EarlyRetirement technologies for enhanced reliability - Global static wear leveling - Supports Flash Life Guard software - Compliant with CompactFlash specification 4.1 PCMCIA, and ATA standards - Supports PIO mode 0-6 - Supports Ultra DMA mode 0-5(5 as default) - Supports Multi-Word mode 0-4 - Supports auto-standby, power-off and sleep modes - Supports S.M.A.R.T function - Supports Security function - Fixed-disk operation in True IDE & PCMCIA mode
