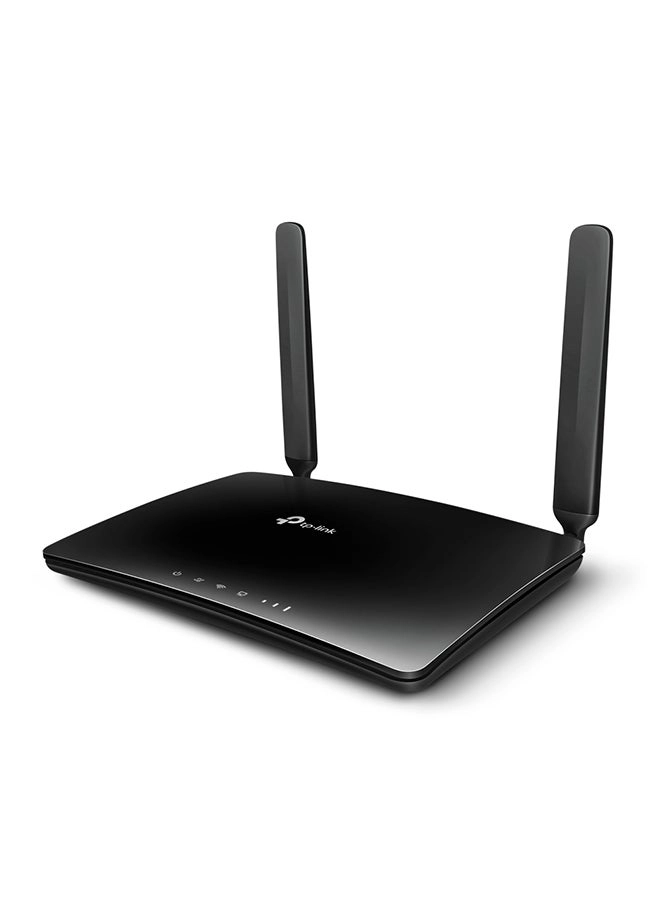

TP-Link TL-MR150

Name: TP-Link TL-MR150
Brand: TP-Link
SKU: 106410

Best offer

AED

178⁵⁰

Key Features

DSL WAN: Yes
3G/4G USB modem compatibility: Yes
3G: Yes
4G: Yes
Firewall: Yes
WLAN data transfer rate (max): 300Mbit/s
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Guest access: Yes
Antenna design: External
Ethernet LAN interface type: Fast Ethernet
VPN Passthrough: Yes
Access Control List (ACL): Yes
DHCP client: Yes
DHCP server: Yes
Antenna connector type: N-type

Specifications

Features

Antennas quantity

Universal Plug and Play (UPnP)

✓

Quality of Service (QoS) support

✓

On/off switch

✓

Security algorithms

128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Product colour

Black

Access Control List (ACL)

✓

DHCP client

✓

DHCP server

✓

Antenna connector type

N-type

Product type

Tabletop router

Packaging data

Package type

Box

Weight & dimensions

Height

33.60 mm

Depth

141 mm

Width

202 mm

Management features

WPS push button

✓

Power

Output current

0.85 A

Output voltage

9 V

Power source type

Performance

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wireless LAN features

VPN support

PPTP

Dynamic DNS (DDNS)

✓

Guest access

✓

WLAN data transfer rate (max)

300 Mbit/s

System requirements

Windows operating systems supported

Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP

Other features

Browser supported

Chrome 20.0, Firefox 12.0, Internet Explorer 11, Safari 4.0

Software

Firewall

✓

Design

Reset button

✓

Packaging content

Cables included

LAN (RJ-45)

AC adapter included

✓

Quick installation guide

✓

Network

4G bands supported

1800, 1900, 2100, 2300, 2500, 800, 900

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Supported network protocols

IPv4, IPv6

3G standards

DC-HSPA+, HSPA, UMTS

Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)

20 dBmW

Wi-Fi band

Single-band (2.4 GHz)

Cabling technology

10/100Base-T(X)

Mobile network generation

SIM card slot

✓

Ethernet LAN data rates

4G standard

LTE-TDD & LTE-FDD

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN

✓

UMTS bands supported

900

Ethernet LAN interface type

Fast Ethernet

VPN Passthrough

✓

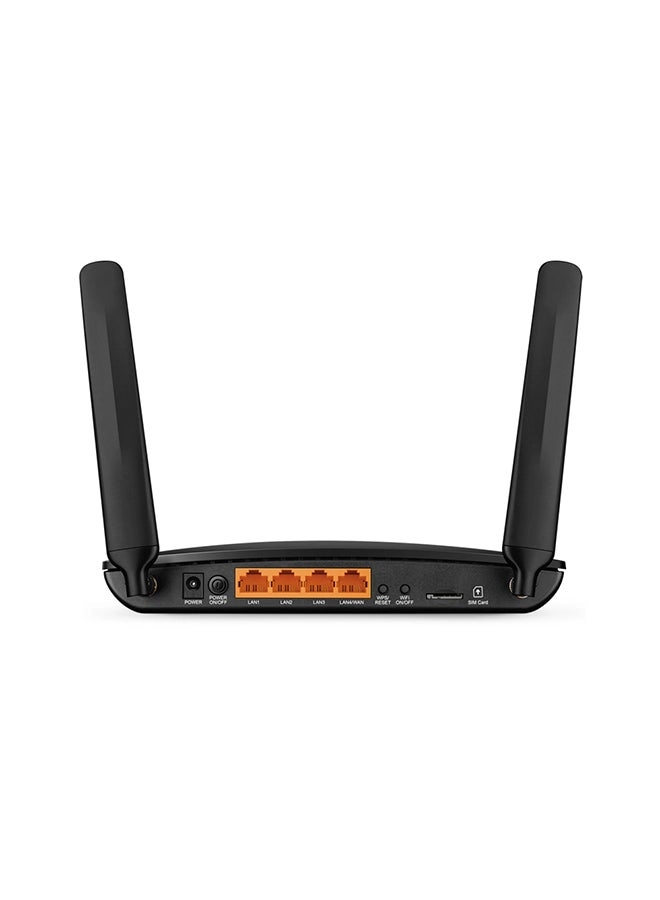

Ports & interfaces

DC-in jack

✓

Memory card slot(s)

✗

Ethernet LAN (RJ-45) ports

USB port

✗

Ethernet WAN

✓

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 90 %

Technical details

Certification

CE, RoHS

Security

Stateful Packet Inspection (SPI)

✓

IP address filtering

✓

MAC address filtering

✓

DMZ support

✓

DoS attack prevention

✓

Antenna

Antenna design

External

Receiver

Receiver sensitivity

11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm

Mobile network

✓

WAN connection

WAN connection type

RJ-45

3G/4G USB modem compatibility

✓

DSL WAN

✓

Product Details

Superfast 4G LTE Speed for Reliable Wi-Fi The TL-MR150 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a Wi-Fi network with maximum speed of 300Mbps on 2.4GHz for gaming, streaming, and more. Design for Maximum Network Coverage Advanced LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home. Plug and Play with a Micro SIM Card Simply insert your 3G/4G Micro SIM card into the built-in slot, turn on the TL-MR150 and start surfing! Available WAN Connection Backup With a fully functional WAN/LAN port, TL-MR150 can work as a router which is compatible with cable, fiber, and DSL modems.
