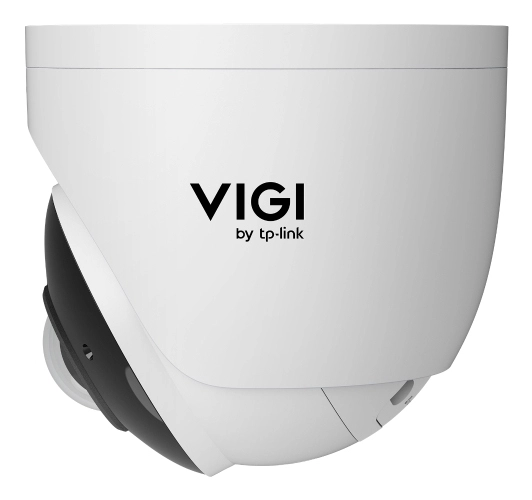

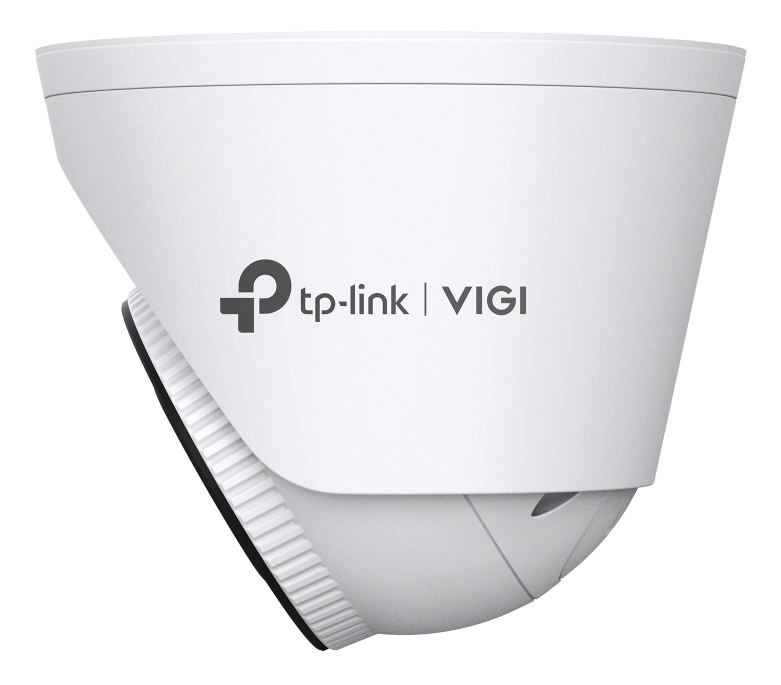

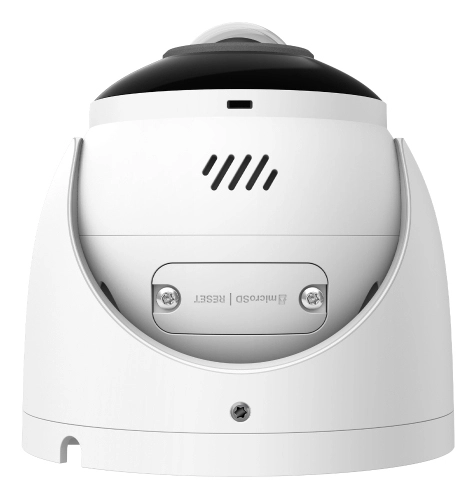

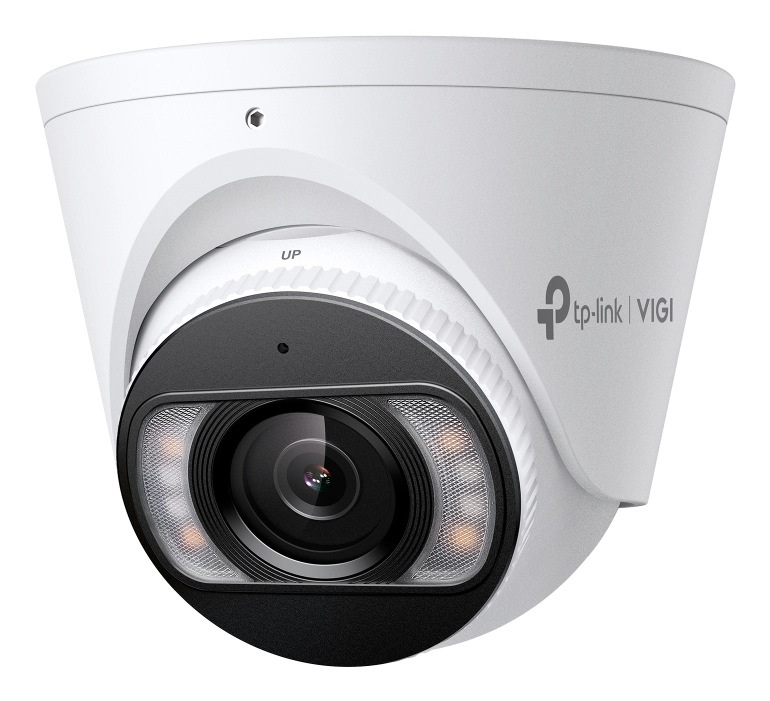

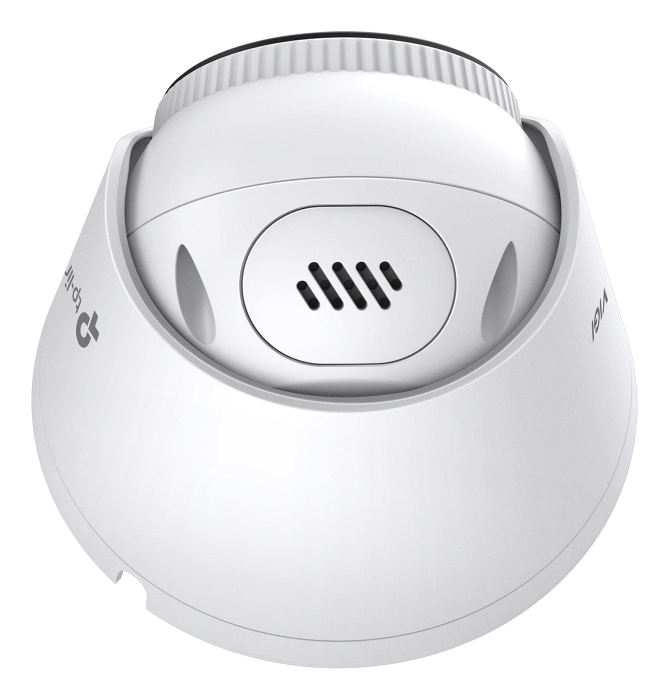

TP-Link Insight S485

Best offer
AED
1 18760

Key Features

  • Sensor type (panoramic camera): CMOS
  • Detect distance: 44m
  • Observe distance: 44m
  • Recognize distance: 21m
  • Lens viewing angle, vertical: 46.1°°
  • Lens viewing angle, diagonal: 134°°
  • Power consumption (Power over Ethernet (PoE)): 12.5W
  • Identify distance: 8m
  • Infrared (IR) cut-off filter: Yes
  • Fixed focus: Yes
  • Alert notification type: Push notification
  • Type: IP security camera
  • Audio output channels: 1channels
  • Built-in siren: Yes
  • Mirror: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Web browser
✓
Protection features
Waterproof
Weatherproof
✓
Screws included
✓
Built-in microphone
✓
Audio formats supported
G.711 A-law
Cloud-managed
✓
Maximum memory card size
512 GB
Password protection
✓
Video motion detection
✓
Connectivity technology
Wired
Product colour
White
Fixed focus
✓
Alert notification type
Push notification
Type
IP security camera
Audio output channels
1
Built-in siren
✓
Mirror
✓
Motion sensor
✓
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620, 3840 x 2160
Sample rate
8 kHz
Detect distance
44 m

Packaging data

Package type
Box

Weight & dimensions

Weight
480 g
Height
83.70 mm
Depth
112.30 mm
Width
111 mm
Length
111 mm

Management features

Web-based management
✓

Power

Power consumption (max)
11.50 W
Power source type
PoE
DC output voltage
12
Power consumption (Power over Ethernet (PoE))
12.50 W

Storage

Compatible memory cards
MicroSD (TransFlash)

Design

International Protection (IP) code
IP67
Housing material
Metal
Placement supported
Outdoor
Reset button
✓
Mounting type
Ceiling, Wall
Form factor
Turret

Packaging content

Mounting kit
✓
Manual
✓
Drilling template included
✓

Network

Wi-Fi
✗
Bluetooth
✗
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
ARP, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, RTP, RTSP, SSL/TLS, TCP/IP, UDP, UPnP UDP
SIM card type
MicroSIM
Live view
✓
SIM card slot
✓
Ethernet LAN
✓

Ports & interfaces

DC-in jack
✓
Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating relative humidity (H-H)
0 - 95 %
Storage relative humidity (H-H)
0 - 95 %

Technical details

Remote viewing
✓

Audio

Audio system
2-way
Built-in speaker(s)
✓

Lens system

Maximum aperture number
1.60
Fixed focal length
2.80 mm
Identify distance
8 m
Recognize distance
21 m
Observe distance
44 m

Video

Video compression formats
H.264, H.265
Image quality adjustment
Brightness, Contrast, Mirror, Saturation, Sharpness
Video recording
✓

Security

IP address filtering
✓
Digest authentication
✓
HTTPS encryption
✓

Camera

Day/night mode
✓
Back Light Compensation (BLC)
✓
Camera shutter speed
1/3 to 1/10000
Maximum operating distance
85 m
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
Main Stream: 256 Kbps to 8 Mbps
Total megapixels
8 MP
Number of cameras
1
Sensor type
CMOS
Lens viewing angle, horizontal
180°
Human and vehicle targets classification
✓
Progressive scan
✓
Wide Dynamic Range (WDR)
✓
Highlight Compensation (HLC)
✓
Digital Wide Dynamic Range (DWDR)
✓
Lens viewing angle, diagonal
134°
Lens viewing angle, vertical
46.1°

Pan-tilt unit

Tilt angle range
0 - 90 °

Image sensor

Maximum resolution
3840 x 2160 pixels
Minimum illumination
0 lx
Dynamic range
120 dB
Infrared (IR) cut-off filter
✓

Night vision

Night vision
✓
LED type
IR/White

Radar

Detection distance
120 m

Panoramic camera

Sensor type (panoramic camera)
CMOS

Product Details

One Shot, Huge Vision 8MP IR Panoramic Turret Network Camera Cut Project Costs with 180° View and 4K (8MP) Clarity General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area. Powerful, Efficient Monitoring with Active Defense Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio. Red-Blue Warning Lights with Stronger Deterrence Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms. Flexible Audio & Alarm Integration The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices. Instant Event Notifications When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone. VIGI AI Detection Technology People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.*2 Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications. Smart Video Enhancement Technology True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting. Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage. 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details. White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions. Efficient H.265+ Compression Technology H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Files

User manual

mmo_128768167_1741266547_8179_1388120.pdf

PDF• 3.5 MB
