TP-Link Archer MR202

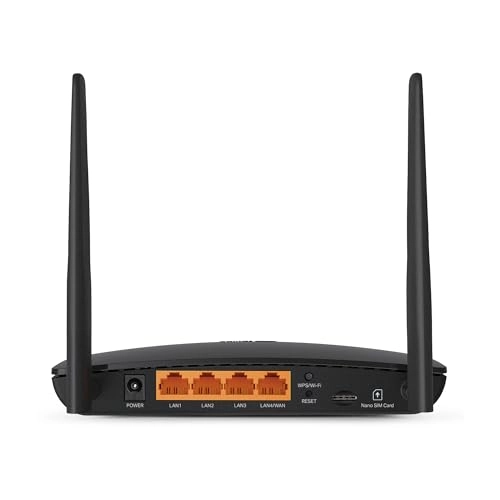

HARDWARE FEATURES Interface 3× 10/100Mbps LAN Ports 1× 10/100Mbps LAN/WAN Port 1× Nano SIM Card Slot 2× External SMA-F Antenna Interface Button WPS/Wi-Fi Button，Reset Button External Power Supply 12V/1A Dimensions ( W x D x H ) 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm) Antenna 2 Detachable External 4G LTE Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4 GHz and 5 GHz Signal Rate 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz Reception Sensitivity 5 GHz: 11a 54M: -78 dBm 11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm 11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm 11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm Transmit Power < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics WAN Failover Yes Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) SOFTWARE FEATURES Quality of Service Prioritizes network traffic by device or application Operating Modes 3G/4G Router, Wireless Router WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Management Access Control, Local Management, Remote Management, reboot schedule DHCP Server, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP, TP-Link DDNS Access Control Firewall Security DoS, SPI Firewall, IP and MAC Address Binding Protocols Supports IPv4 and IPv6 Guest Network 2.4GHz guest network x 1, 5GHz guest network x 1 VPN Server PPTP VPN, OpenVPN OTHERS Certification CE, RoHS Package Contents AC750 Wireless Dual Band 4G LTE Router Archer MR202 RJ45 Ethernet Cable 1.5m Power Adapter Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
