Product Description
Using 500GB-per-platter technology, the MQ01ABD series is a 2.5-inch, 5,400 RPM hard disk drive line featuring up to 1TB of capacity for mainstream applications requiring power-efficiency and reliability from their storage solution.
∙ Up to 1,000GB* of Storage Capacity
∙ 5,400 RPM Rotational Speed
∙ Advanced Format 512e
∙ Eco-conscious Design
∙ MTTF of 600,000 Hours
Toshiba Storage Device Division offers a line of 5,400 RPM 2.5-inch HDDs in a new slim design optimized for industry-leading storage applications. The latest HDD series, MQ01ABD050, provides a wide capacity range from 250 GB to 1TB in a 9.5-millimeter-high design with only maximum 2 platters.
The advanced MQ01ABD050 targets markets such as portable multimedia and gaming notebooks, mobile workstations and other capacity-hungry applications like external HDDs. In addition, the drives also feature very good power efficiency value of 0.00055 for the 1TB model. Due to the "Silent-Seek" technology featured in these drives, the HDDs are extremely quiet: Ultra-silent single-platter drives boast acoustic specifications of 19dBA (seek) and 17dBA (idle) making them almost indistinguishable to the human hear.
With its compact size and best-in class specifications, the SATA MQ01ABD050 series is the perfect choice for use in devices where a combination of sleek form factor and high capacity capabilities are essential.
As with all Toshiba HDDs, the complete series is halogen-free and RoHS compatible, therefore, exceptionally environmentally friendly.
Specification
Specification
Performance
Track-to-track Seek - 2 ms
Average Seek Time - 12 ms
Rotational Speed - 5,400 RPM
Average Latency - 5.55ms
Buffer Size - 8MB
Power Requirements
Voltage - 5V (+/- 5%)
Spin up (start) Power - 4.5 watts
Seek Power - 1.85 watts
Read/Write Power - 1.5 watts
Low Power Idle - 0.55 watts
Standby Power - 0.18 watts
Sleep Power - 0.15 watts
Physical Size
Dimensions (W) x (D) x (H) - 69.85 mm (2.75") x 100.0 mm (3.94") x 9.5 mm (0.37")
Weight - 102 g (3.60 oz)
Environmental
Temp – Operating - 5° to 55°C (41° to 131°F)
Temp - Non-Operating - -40° to 65°C (-40° to 140°F)
Vibration – Operating - 9.8 m/s² (1.0G) 5 to 500 Hz
Vibration – Non-Operating - 49 m/s² (5.0G) 15 to 500Hz
Shock – Operating - 3,920 m/s² (400G) 2ms
Shock – Non-Operating - 8,820 m/s² (900G) 1ms
Acoustics
Acoustics (idle) - 17 dB
Acoustics (seek) - 19 dB
Warranty
Limited Warranty - 3 years (from date of purchase)
Set Contains:

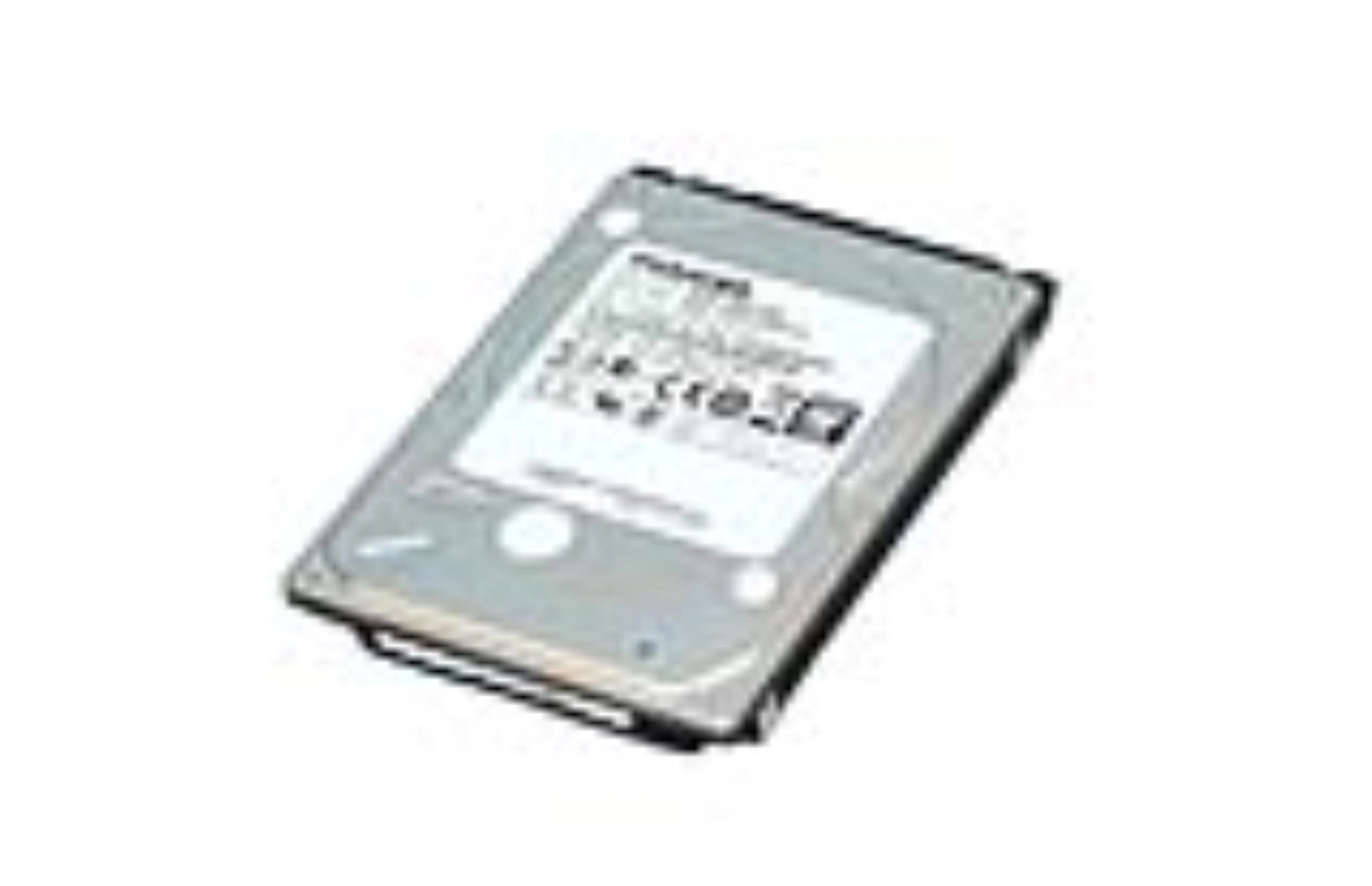

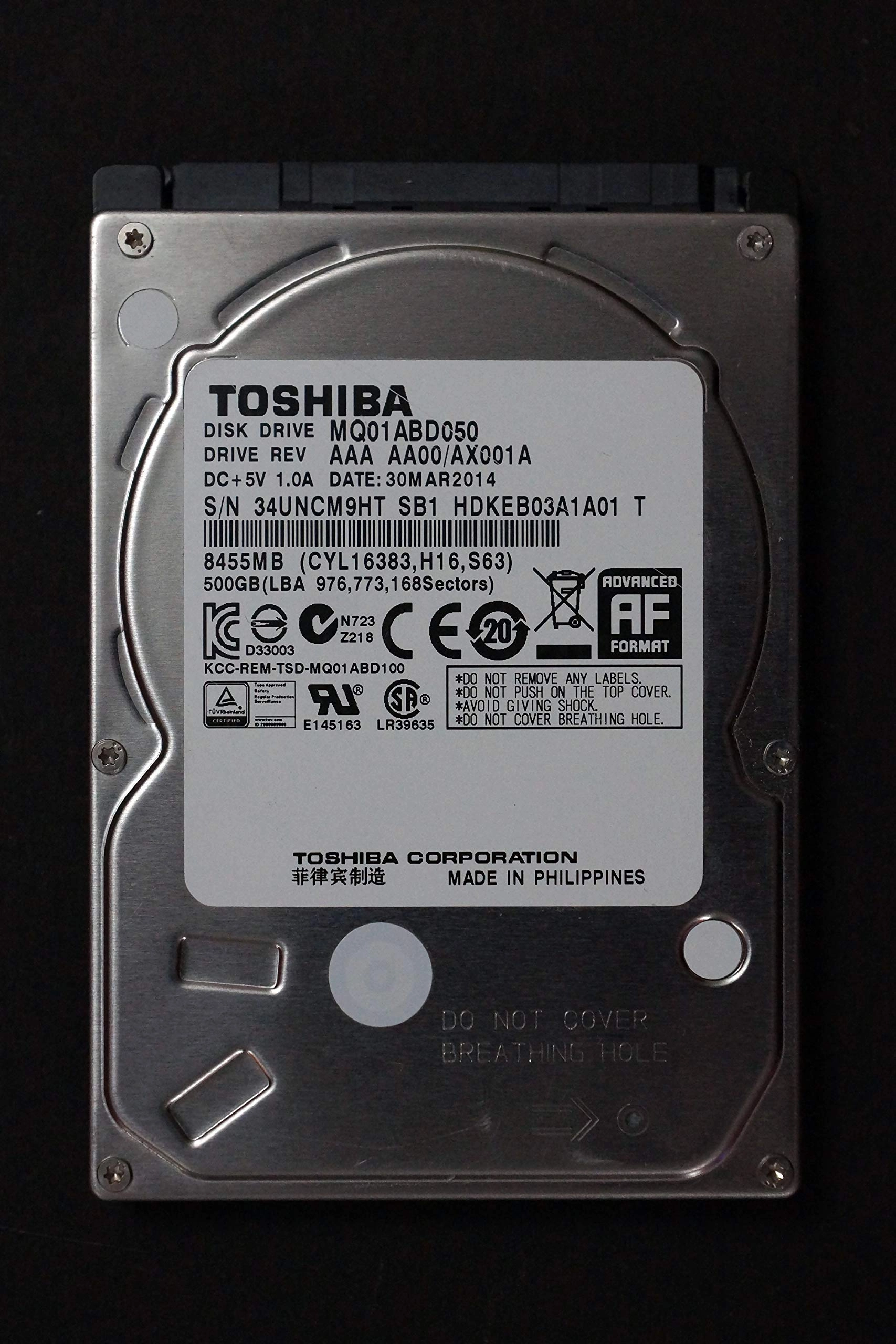

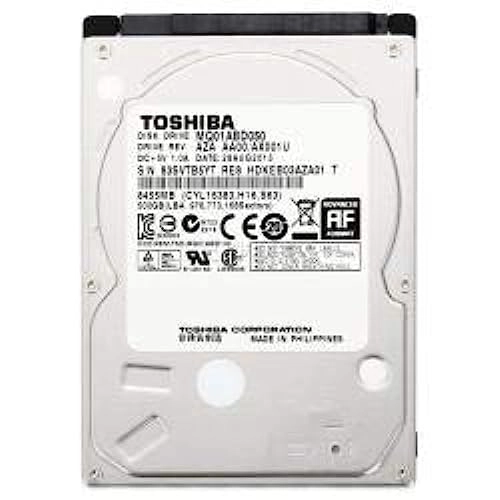

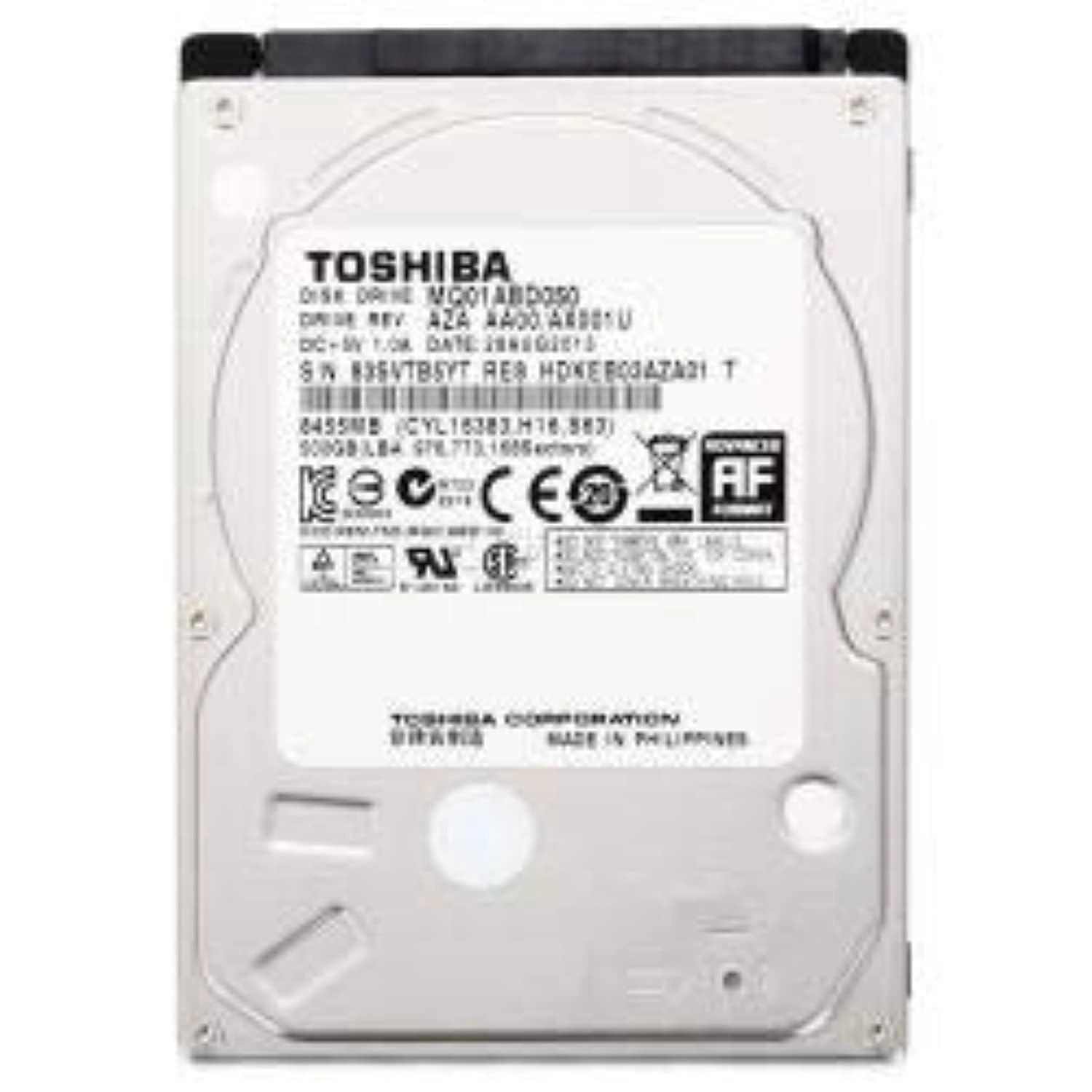

Toshiba MQ01ABD050 500GB 2.5 inch Internal 5400rpm 9.5MM Hard Drive
