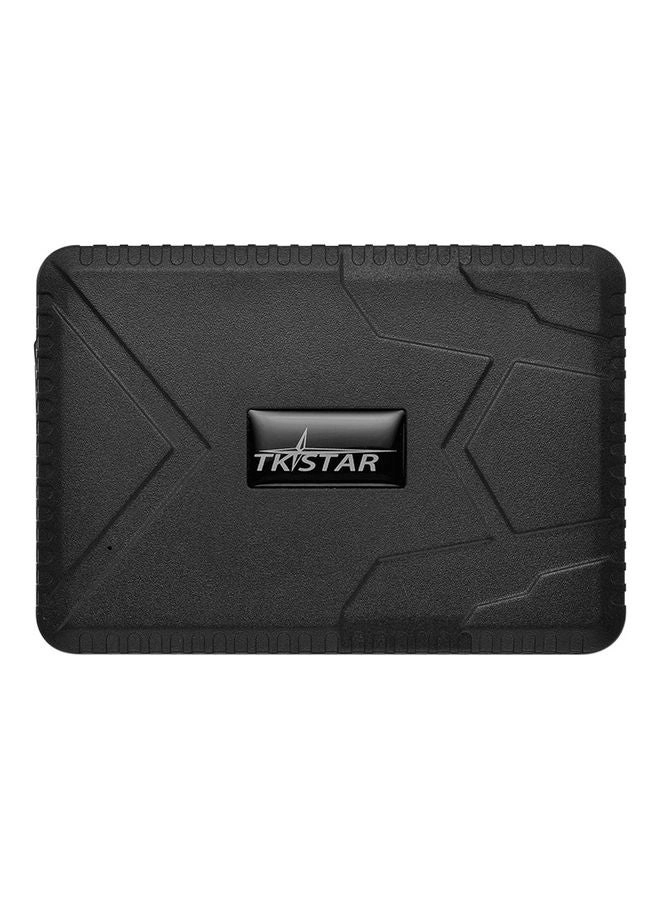

Overview: This Waterproof GPS Device TKSTAR TK905 is a 2G GSM GPS locator that operates using existing 2G GSM/GPRS networks and GPS satellites. It can locate and manage any targets remotely via SMS, mobile app, or web-based monitoring software, with no distance restrictions. The device utilizes advanced GPS and LBS dual positioning technology.

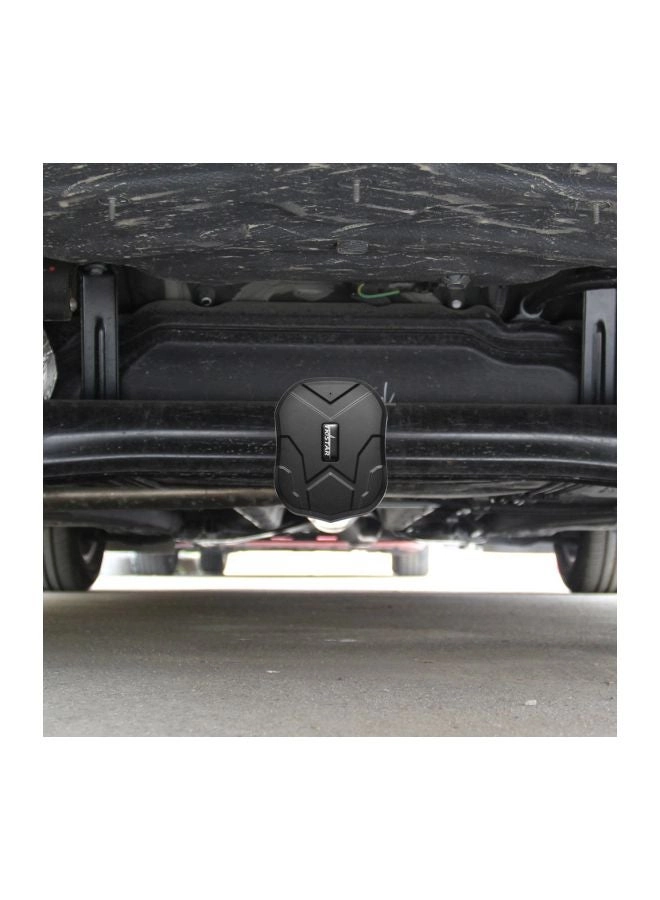

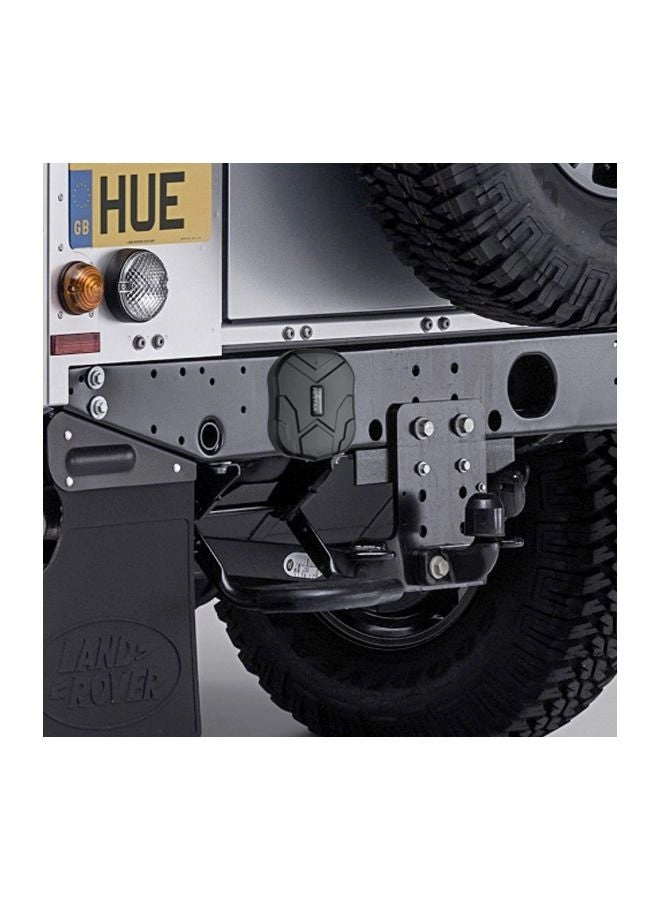

Additionally, its built-in powerful magnet allows for easy and secure installation on cars, trucks, or any metal surface. Designed for versatile vehicle management applications, the TK905 is a fully functional GPS device that supports optional hard-wired car charging for continuous external power.
Its high-sensitivity built-in GPS receiver ensures fast and precise positioning. The quad-band GPRS/GSM system (850/900/1800/1900 MHz) enables real-time location monitoring or periodic position updates through a backend server and mobile devices worldwide.System integration is straightforward as complete documentation is provided for GPRS communication protocol. The GPRS communication protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, shock alarm and scheduled GPS position. Specification: * Dim: 90mm * 72mm * 22mm (3.54" * 2.83" * 0.87") * Weight: 168g * Network: 2G GSM/GPRS * Band: 850/900/1800/1900Mhz * GPS chipset: u-blox UBX-G7020 * GPS sensitivity: -159dBm * GPS accuracy: 5m * Wall charger: 110-220V input 5V-1A output * Battery: Chargeable 3.7V 5000mAh Li-ion battery * Standby time: 90days * Storage Temp.: -40°C to +85°C * Operation Temp.: -20°C to +55°C * Humidity: 5%--95% non-condensing

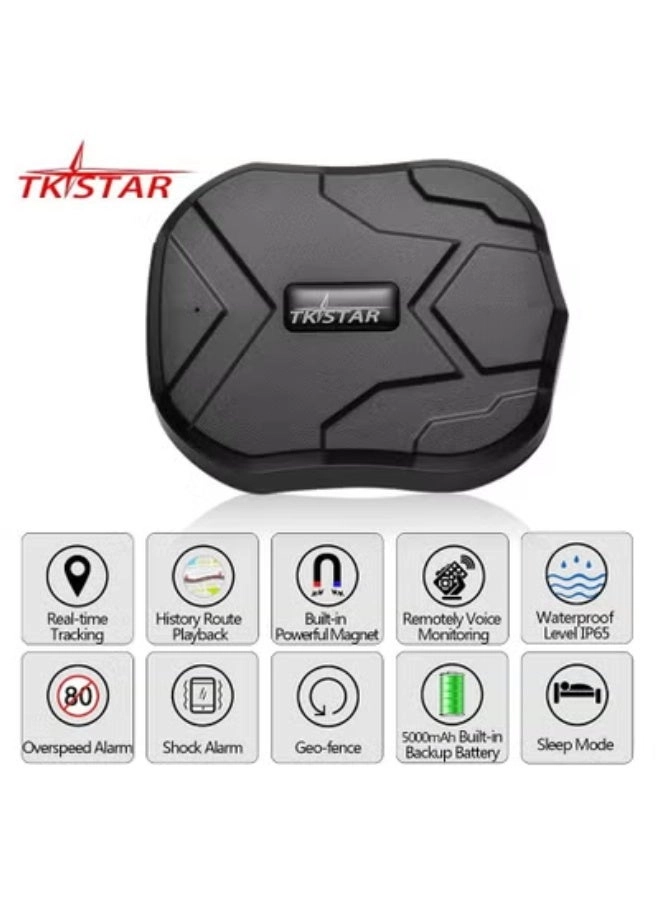

Main Functions:
1. GPS+LBS Dual Positioning Ways: If the GPS signal is good, the device will locate via GPS satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!
2. Instant Location Access: Check the device's current position anytime via Google Maps on any device, with new location data available every 10 seconds.

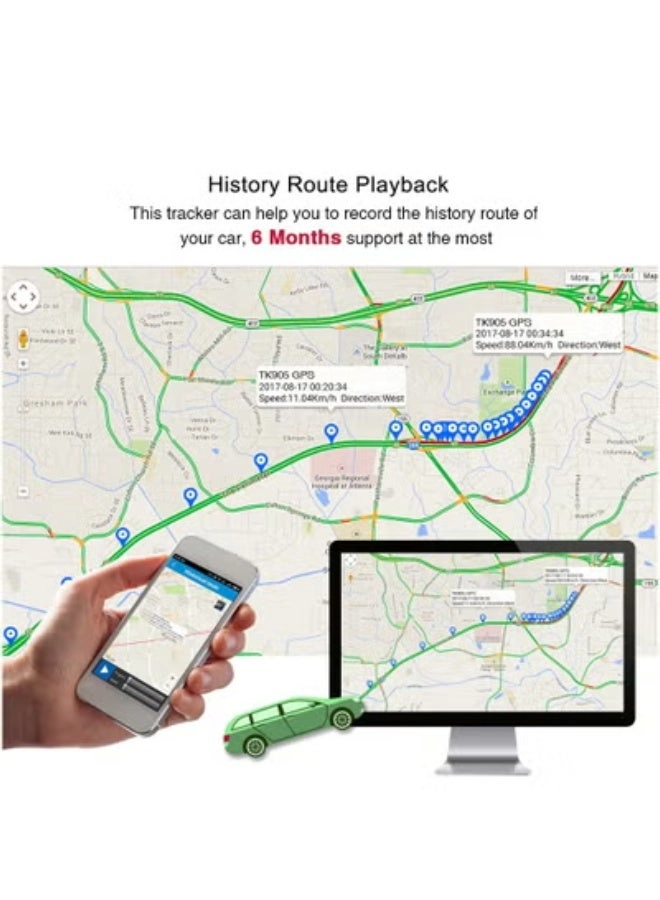

3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time! 4. Long Standby Time: It has built-in 3.7V 5000mAh Li-ion battery, can standby up to 90 days.

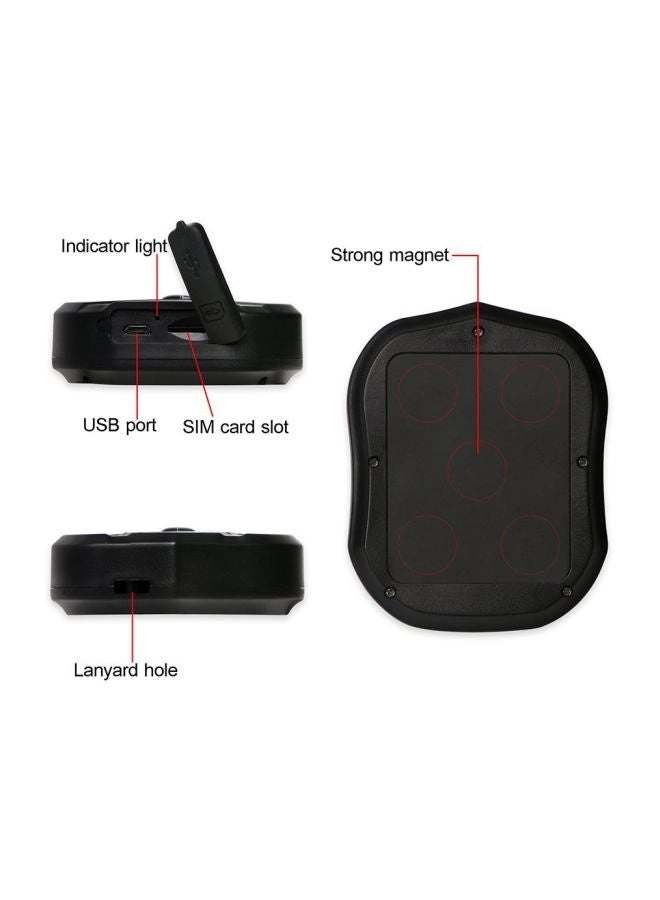

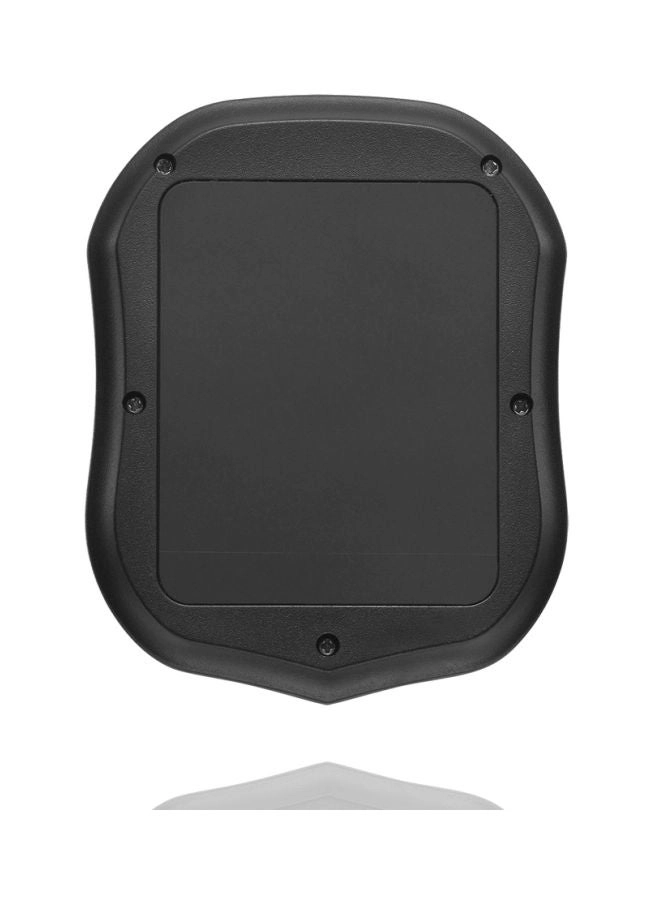

5. Secure Mounting Design: Featuring an integrated attachment system with exceptional holding strength, the device can be installed quickly and firmly on any metal surface.
6. Waterproof IP65: The waterproof level of this device is IP65, it can resist splash water but can't be put under water!
7. Send "Monitor+Password" to the device first, then the device will turn into monitor mode, now if you make call to the SIM number in the device, it will pick up your call automatically and you will can check the voice around the device!
8. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
9. Shock/Vibration Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked. Important Notice:
* This device just can work with 2G GSM network, and this item will not include Sim Card,please buy it from your local.
* Please make sure the GSM SIM card supports making calls, sending messages, GPRS network
* Please make sure the GSM SIM card has sufficient balance.
* Please make sure the GSM card has opened the call ID display function and turned off the call transfer.

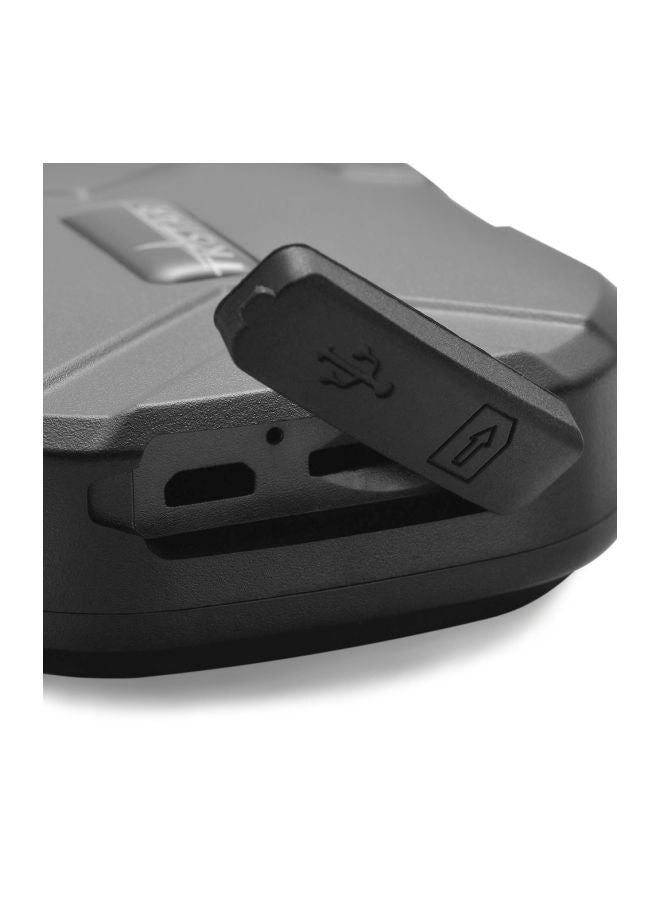

* Please insert the GSM SIM card into the device correctly.
* Please use the normal SIM card for the tracker, not Micro SIM or Nano SIM.
