PoE Injector - 48V 15.4W IEEE 802.3af 10/100Mbps

Tenda PoE Injector - 48V 15.4W IEEE 802.3af 10/100Mbps

Name: Tenda PoE Injector - 48V 15.4W IEEE 802.3af 10/100Mbps
Brand: Tenda
SKU: 474293
Availability: InStock

Best offer

AED

267⁰⁰

Key Features

Output power: 15W
Power over Ethernet (PoE) voltage: 48V
Ethernet LAN data rates: 10Mbit/s
Ethernet interface type: Fast Ethernet
Product colour: Black
Maximum operating distance: 100m
LED indicators: Power
Power over Ethernet (PoE): Yes
Dimensions (WxDxH): 29.8 x 84.5 x 44mm
Ethernet LAN (RJ-45) ports: 2
Storage relative humidity (H-H): 5 - 90%
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Operating relative humidity (H-H): 10 - 90%
Plug and Play: Yes
Operating temperature (T-T): 0 - 45°C

Specifications

Features

Plug and Play

✓

Product colour

Black

Power

Power over Ethernet (PoE)

✓

Output power

15 W

Power over Ethernet (PoE) voltage

48 V

Other features

Dimensions (WxDxH)

84.50 x 44 x 29.80 mm

Design

LED indicators

Power

Network

Networking standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3u

Ethernet LAN data rates

Ethernet interface type

Fast Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 90 %

Camera

Maximum operating distance

100 m

Logistics data

Harmonized System (HS) code

85044095

Product Details

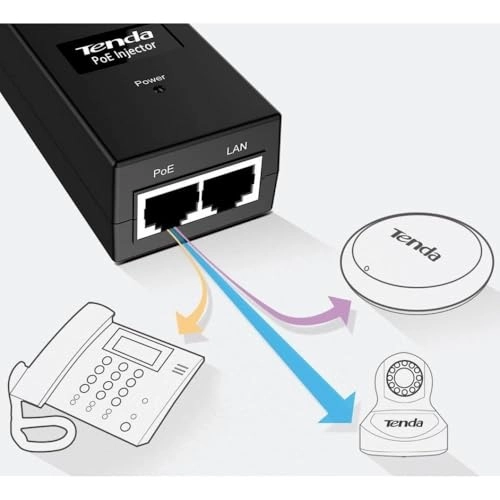

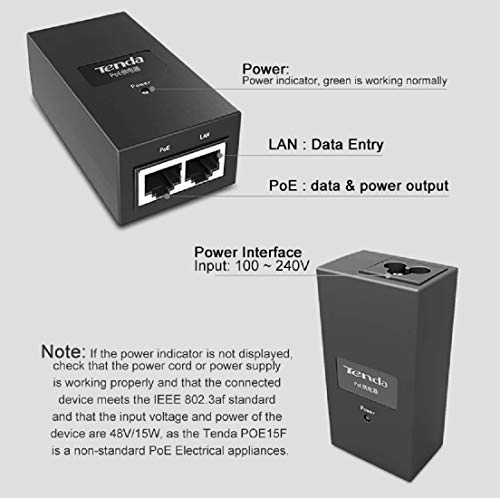

The PoE injector PoE15F can realize synchronous delivery of device network data and power via one Ethernet cable. The output power of per port is up to 15W, which can serve as an outlet for a PoE device. You can connect PoE15F to an IEEE 802.3af compliant PD, such as wireless AP, IP camera, IP phone, etc. In a sense, it is a good choice for you to reduce the installation cost and improve the network perfor. - Delivers power and data through one Ethernet cable for easy network extension; - Compatible with IEEE 802.3af compliant powered devices; - PoE Port Delivers power up to 100 meters; - Plug and Play, no configuration required. Power Over Ethernet One PoE port to power connected devices for flexible network deployment. IEEE 802.3af compliant Compatible with IEEE 802.3af compliant powered devices. Extend Power Supply Distance of power transmission via Ethernet cable is up to 100 meters. Plug and Play Hassle-free setup, no configuration required.
