Teltonika RUT955 - 802.11b

Name: Teltonika RUT955 - 802.11b
Brand: Teltonika
SKU: 326358

Best offer

AED

802⁰⁰

Key Features

DSL WAN: No
3G/4G USB modem compatibility: Yes
3G: Yes
4G: Yes
Firewall: Yes
WLAN data transfer rate (max): 300Mbit/s
SSID-based VLAN assignment: Yes
Static route: Yes
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
GPS compatibility: Yes
Antenna design: External
Ethernet LAN interface type: Fast Ethernet
Wall mountable: Yes
DHCP server: Yes
Antenna connector type: SMA/RP-SMA

Specifications

Features

Mean time between failures (MTBF)

230000 h

Antennas quantity

Safety

IP30

Authentication method

Radius

Universal Plug and Play (UPnP)

✓

NAT functionality

NAT-T

VoIP protocols

H.323, SIP-alg protocol

Internal memory

128 MB

Suitable for use in country/location

Europe, India, Korea, Thailand

Processor frequency

550 MHz

Quality of Service (QoS) support

✓

Maximum memory card size

32 GB

Number of WLAN connections (max)

100

Security algorithms

128-bit AES, 192-bit AES, 256-bit AES, 3DES, 802.1x RADIUS, AES-CCMP, DES, HTTPS, IPSec, PEAP, SNMP, SSH, SSL/TLS, TKIP, TLS, TTLS, WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK

Short Message Service (SMS)

✓

Product colour

Black

Wall mountable

✓

DHCP server

✓

Antenna connector type

SMA/RP-SMA

Full duplex

✓

Product type

Tabletop router

Port forwarding

✓

Static route

✓

Weight & dimensions

Weight

280 g

Height

80 mm

Depth

46 mm

Width

106 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

Power

Power consumption (typical)

7 W

Output voltage

9 - 30 V

AC input voltage

100 - 240 V

Power source type

Performance

Load balancing system

✓

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wireless LAN features

VPN support

Stunnel

Dynamic DNS (DDNS)

✓

Wi-Fi Multimedia (WMM)/(WME)

✓

WLAN data transfer rate (max)

300 Mbit/s

Other features

Filtering

✓

Storage

Compatible memory cards

MicroSD (TransFlash)

Software

Firewall

✓

Design

Housing material

Aluminium, Plastic

Reset button

✓

LED indicators

LAN, Power, Status

Detachable antenna(s)

✓

Indication light

✓

Computer system

Built-in processor

✓

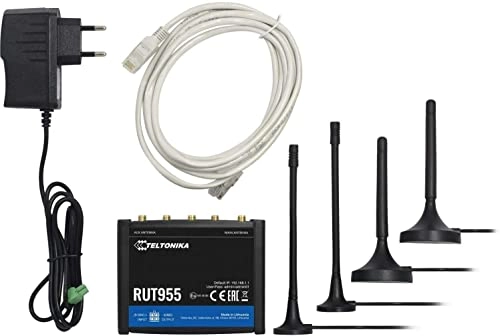

Packaging content

Quick start guide

✓

Cables included

LAN (RJ-45)

AC adapter included

✓

Network

4G bands supported

1800, 2100, 800, 900

Networking standards

IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Supported network protocols

ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, MQTT, NTP, PPP, PPPoE, SMPP, SMTP, SSH, SSL v3, TCP, TLS, Telnet, UDP, UPNP, VRRP, WakeOnLan

Management protocols

HTTP/HTTPS, JSON-RPC, MQTT, RMS, SNMP, SNMP trap, TR-069

3G standards

DC-HSPA+, HSPA, TD-SCDMA, UMTS, WCDMA

2G standards

EDGE, GPRS, GSM

VPN tunnels quantity

Wi-Fi band

Single-band (2.4 GHz)

Cabling technology

10/100Base-T(X)

Auto MDI/MDI-X

✓

Ethernet LAN data rates

4G standard

LTE

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN

✓

URL filtering

✓

Flow control support

✓

Mobile network generation

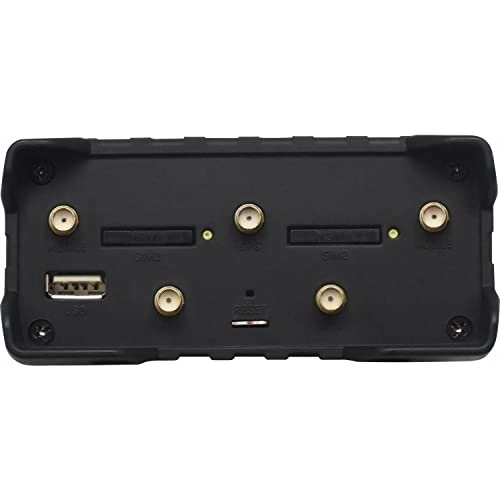

SIM card slot

✓

GSM bands supported

1800, 800, 850, 900

UMTS bands supported

850, 900

Wake-on-LAN ready

✓

Ethernet LAN interface type

Fast Ethernet

SSID-based VLAN assignment

✓

Ports & interfaces

DC-in jack

✓

Memory card slot(s)

✓

Ethernet LAN (RJ-45) ports

USB port

✓

Ethernet WAN

✓

USB 2.0 ports quantity

GPS compatibility

✓

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

5 - 95 %

Technical details

Certification

7.1 / ITU-T K21 ISO 7632-2:2004 EN 61000-4-6:2009 EN 61000-4-11:2004 EN 300 328 V2.1.1, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017 FCC 47 CFR Part 15C (2017), CE/RED, EAC, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-13 V11.1.1, EN 301 908-2 V11.1.1, EN 303 413 V1.1.0 AS/CA S042.1:2018, EN 62311:2008 FCC 47 CFR Part 1 1.1310 RSS-102 Issue 5 (2015) LST EN 60529:1999+A1+AC:2002 EN 60068-2-6:2008, FCC, FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017) RSS-Gen Issue 4 (2014), IC/ISED, PTCRB, R&TTE, RCM, RSS-130 Issue 1 IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 AS/NZS 60950.1:2015 EN 50665:2017, RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-247 Issue 2 (2017), RoHS, WEEE, Wi-Fi Alliance EN61000-4-2:2009 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2006 EN 61000-4-5:2014

Memory

Flash memory

16 MB

Protocols

Routing protocols

BGP, OSPF, RIP-1, RIP-2

Security

IP address filtering

✓

MAC address filtering

✓

Network address translation (NAT)

✓

DMZ support

✓

DoS attack prevention

✓

Antenna

Antenna design

External

Mobile network

Dual SIM support

✓

Logistics data

Harmonized System (HS) code

85176990

WAN connection

WAN connection type

RJ-45

3G/4G USB modem compatibility

✓

DSL WAN

✗

Product Details

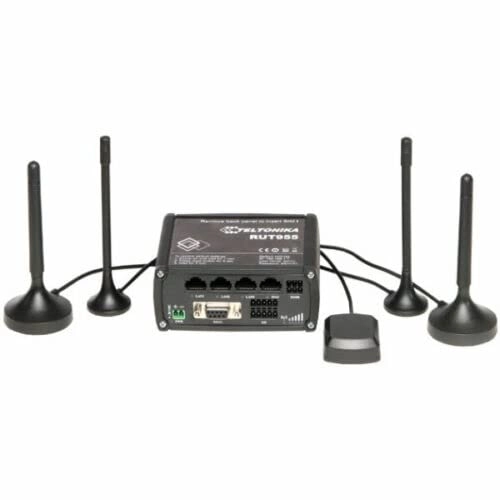

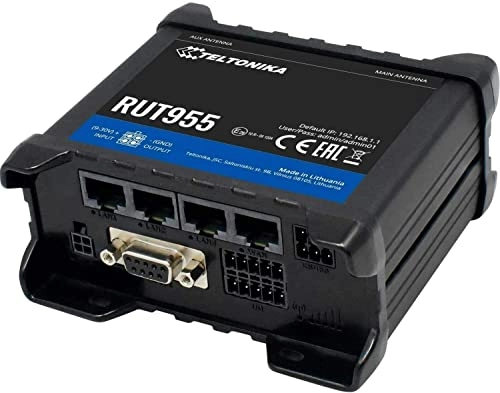

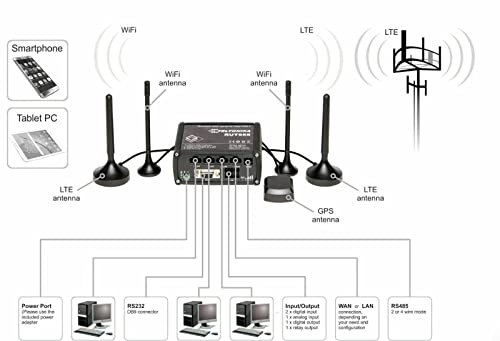

Professional rugged Dual-SIM 4G/LTE & WiFi cellular router. This highly secure and reliable industrial device is equipped with Ethernet, Digital & Analogue I/Os, RS232, RS485, GNSS (GPS), microSD and USB interfaces. RUT955 is a highly reliable and secure 4G/LTE router with I/O, GNSS and RS232/RS485 intended for professional applications. The device delivers high performance, mission-critical cellular communication and GPS location capabilities and is equipped with connectivity redundancy through Dual-SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
