Product Description
This industrial 4G LTE router is designed for reliable connectivity in demanding environments such as IoT deployments, industrial automation, remote monitoring, and smart infrastructure. The device supports dual SIM failover, advanced networking features, secure VPN connectivity, and industrial protocols, making it suitable for professional and enterprise applications.
With support for 4G LTE Cat 4 speeds up to 150 Mbps download and 50 Mbps upload, along with Wi-Fi 4 connectivity and multiple industrial interfaces such as RS232 and RS485, this router enables seamless communication between field devices, cloud platforms, and enterprise networks.
The device runs on a powerful RutOS operating system based on Linux, offering extensive networking capabilities, remote management, automation support, and high-level security.
Mobile Connectivity
Supports multiple cellular technologies for stable global connectivity.
• 4G LTE Cat 4 with speeds up to 150 Mbps download and 50 Mbps upload
• 3G speeds up to 21 Mbps download and 5.76 Mbps upload
• 2G speeds up to 236.8 kbps
• Dual SIM slots with automatic switching for network failover
• Automatic switching triggered by weak signal, roaming, data limit, or connection failure
Mobile status monitoring includes IMSI, ICCID, operator status, network type, signal strength (RSSI), SINR, RSRP, RSRQ, cell ID, and data usage statistics.
SMS and USSD Features
• SMS status monitoring and configuration
• SMS to Email, Email to SMS, SMS to HTTP, SMS forwarding
• Scheduled SMS and automatic SMS replies
• SMPP support
• USSD message sending and reading
Wi-Fi Connectivity
The router provides wireless connectivity for up to 50 simultaneous users.
• Wi-Fi 4 (802.11 b/g/n)
• Access Point and Station modes
• Fast roaming support (802.11r)
• Wireless roaming management (802.11k and 802.11v)
• Client isolation and MAC filtering
• QR code generator for easy network access
Security options include WPA2, WPA3, enterprise authentication, AES encryption, and protected management frames.
Ethernet Interfaces
• 1 × WAN port (10/100 Mbps)
• 1 × LAN port (10/100 Mbps)
• Auto MDI/MDIX support
• IEEE 802.3, 802.3u and 802.3az compliance
Advanced Networking
Supports a wide range of enterprise networking protocols and routing technologies.
• Static routing and dynamic routing (BGP, OSPF, RIP, EIGRP, NHRP)
• IPv4 and IPv6 support
• DHCP server and relay
• Dynamic DNS support
• DNS over HTTPS secure resolution
• QoS traffic prioritization
• Load balancing and failover
• Captive portal hotspot functionality
Security Features
Advanced security functions ensure safe and stable network operation.
• Firewall with custom rules and port forwarding
• NAT, NAT-T, NAT64, DMZ support
• DDoS protection and port scan prevention
• Web filtering with whitelist and blacklist
• VLAN support with port and tag-based separation
• Access control for SSH, web interface, and CLI
VPN Support
Supports multiple secure VPN technologies for remote connectivity.
• OpenVPN client and server
• IPsec with IKEv1 and IKEv2
• WireGuard VPN
• GRE and GRE over IPsec
• L2TP and PPTP support
• ZeroTier VPN client
• SSTP client support
• Tinc VPN support
Industrial Protocol Support
Designed for industrial and IoT environments with built-in protocol support.
• MODBUS TCP and RTU (client and server)
• OPC UA client and server
• BACnet router support
• DNP3 TCP master and outstation
• DLMS protocol for utility meter communication
The router also includes a Modbus MQTT gateway for sending Modbus data through MQTT brokers.
Cloud and IoT Integration
Supports integration with major IoT platforms and cloud services.
• MQTT broker and publisher
• Azure IoT Hub integration
• AWS IoT Core connectivity
• ThingWorx and Cumulocity support
• Data to server functionality via HTTP or MQTT
Monitoring and Management
Multiple management options allow easy device monitoring and configuration.
• Web user interface with HTTP or HTTPS
• Remote management system support
• SNMP monitoring
• TR-069 remote device management
• JSON-RPC API support
• SMS and call commands for remote control
System Specifications
• CPU: Mediatek 580 MHz MIPS processor
• RAM: 128 MB DDR2
• Flash storage: 32 MB
• Operating system: RutOS based on Linux
Developers can customize firmware using supported programming languages such as Lua, C, and C++.

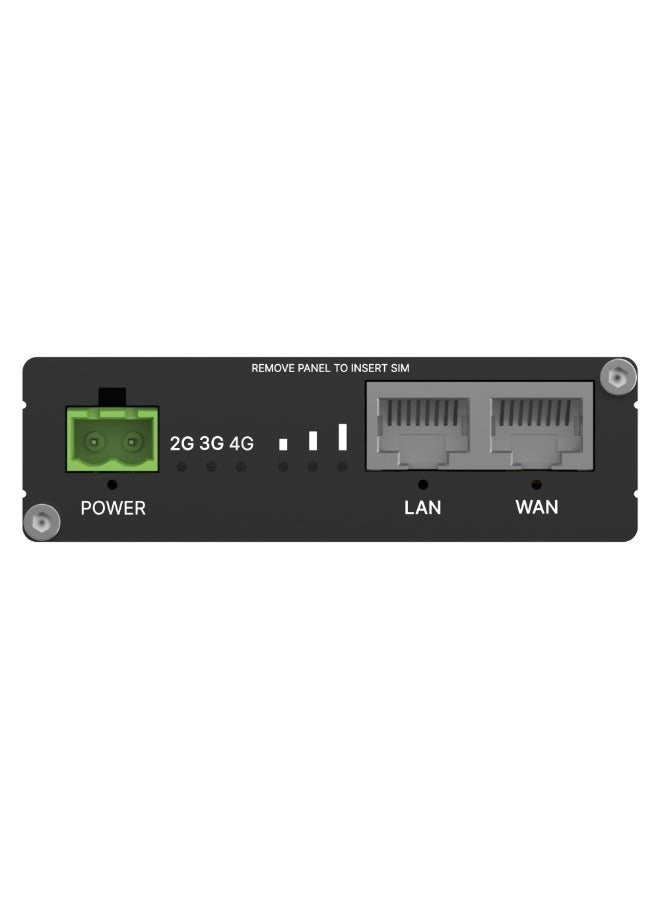

Interfaces and Expansion
• 2 × Ethernet ports
• 2 × SMA connectors for cellular antennas
• 1 × RP-SMA connector for Wi-Fi antenna
• RS232 interface
• RS485 interface
• Micro SD card slot supporting up to 2 TB storage
Power Specifications
• Input voltage: 9 to 57 VDC
• Reverse polarity protection
• Surge protection
• PoE input support (802.3af)
• Passive PoE support through Ethernet port
Power consumption:
• Idle: less than 2 W
• Maximum: less than 3.5 W
Physical Specifications
• Durable anodized aluminum housing
• Dimensions: 83 × 25 × 83 mm
• Weight: 132 g
• Mounting options: DIN rail, wall mount, or flat surface
Operating Environment
• Operating temperature: -40°C to 75°C
• Humidity: 10% to 90% non-condensing
• Ingress protection rating: IP30
Certifications
• CE
• UKCA
• CB
• RCM
• EAC
• UCRF
