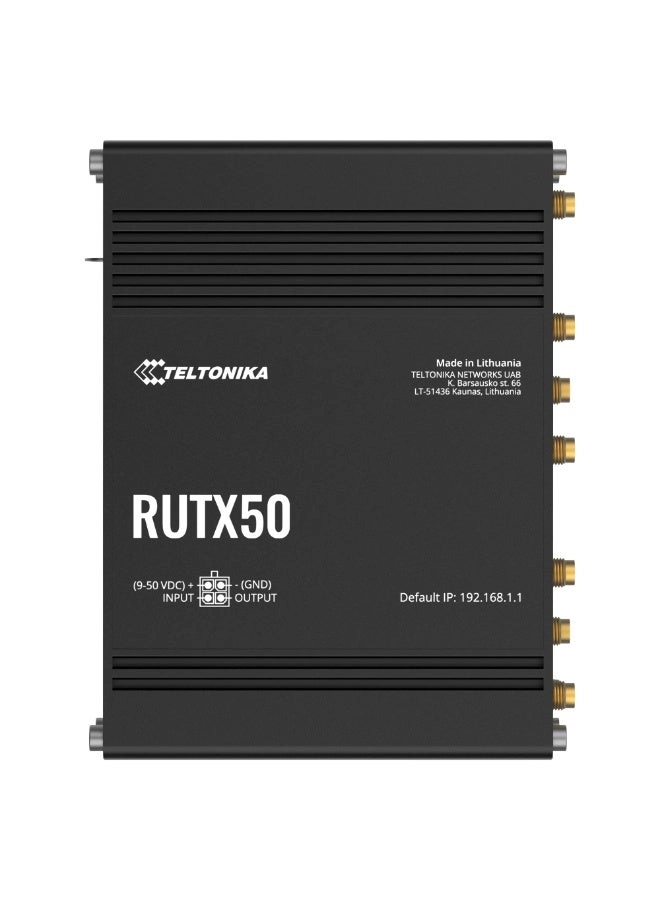

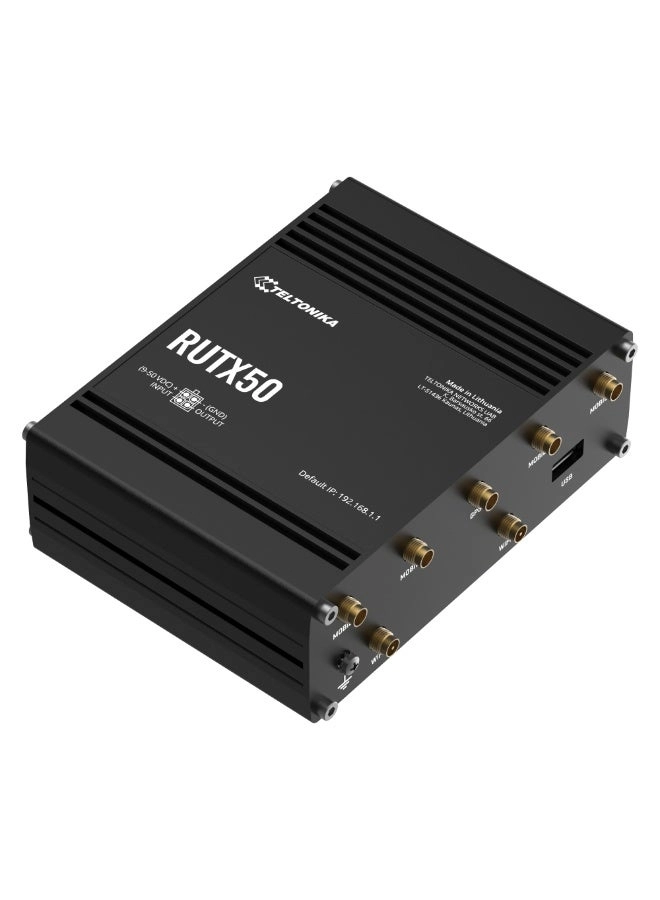

Teltonika Networks RUTX50 - 867 Mbps WiFi 5

Manufacturer: Teltonika Networks

• Product type: Industrial 5G router

Mobile connectivity

• 5G Sub-6 GHz SA/NSA, up to 3.3 Gbps download / 900 Mbps upload
• 4G LTE Cat 20, up to 2.0 Gbps download / 200 Mbps upload
• 3G support up to 42 Mbps download
• 3GPP Release 15/16 (hardware dependent)
• Dual SIM + eSIM (consumer type, up to 7 profiles; availability by order code)
• Automatic SIM switching (signal, data/SMS limits, roaming, network failure, etc.)

Wireless

• Wi-Fi 5 (802.11 b/g/n/ac Wave 2), dual-band, MU-MIMO
• Up to 867 Mbps wireless throughput
• Up to 150 concurrent Wi-Fi users
• Fast roaming (802.11r/k/v), mesh (802.11s)
• WPA2/WPA3 security, Enterprise support, QR code Wi-Fi access

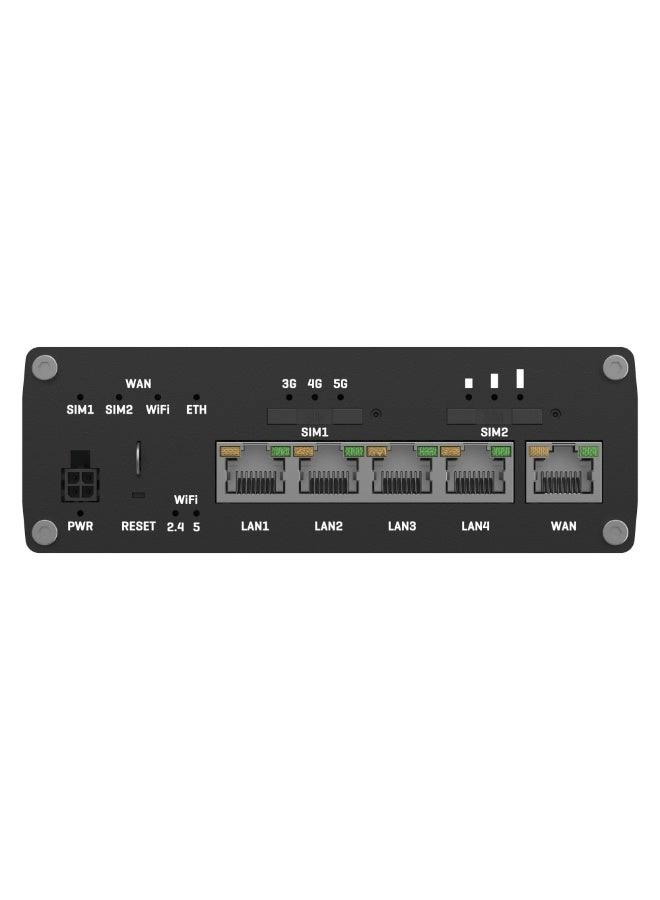

Ethernet

• 1 × Gigabit WAN port (10/100/1000 Mbps)
• 4 × Gigabit LAN ports (10/100/1000 Mbps)
• Auto MDI/MDIX support

Networking features

• Static and dynamic routing (BGP, OSPF, RIP, EIGRP, policy routing)
• IPv4/IPv6 support
• Firewall, NAT, port forwarding, DMZ
• Load balancing and failover (mobile, wired, Wi-Fi WAN, VRRP)
• Hotspot / captive portal with RADIUS, SMS auth, SSO

VPN

• OpenVPN (client/server), IPsec, GRE
• WireGuard, L2TP, PPTP, SSTP
• DMVPN, ZeroTier, Tailscale

Industrial & IoT protocols

• Modbus TCP (client/server), Modbus MQTT gateway
• OPC UA (client/server)
• DNP3, DLMS/COSEM
• MQTT, HTTP(S), Azure MQTT
• JSON-RPC and Web API

Management & monitoring

• Web UI (HTTP/HTTPS), SSH, SMS control
• TR-069 support
• SNMP v1/v2/v3
• FOTA and RMS (Teltonika Remote Management System)
• Cloud integrations: Azure IoT Hub, AWS IoT Core, ThingWorx, Cumulocity

System

• CPU: Quad-core ARM Cortex-A7, 717 MHz
• RAM: 256 MB
• Flash: 256 MB
• OS: RutOS (OpenWrt-based Linux)

GNSS & location

• GPS, GLONASS, Galileo, BeiDou, QZSS
• Geofencing, NMEA, NTRIP support

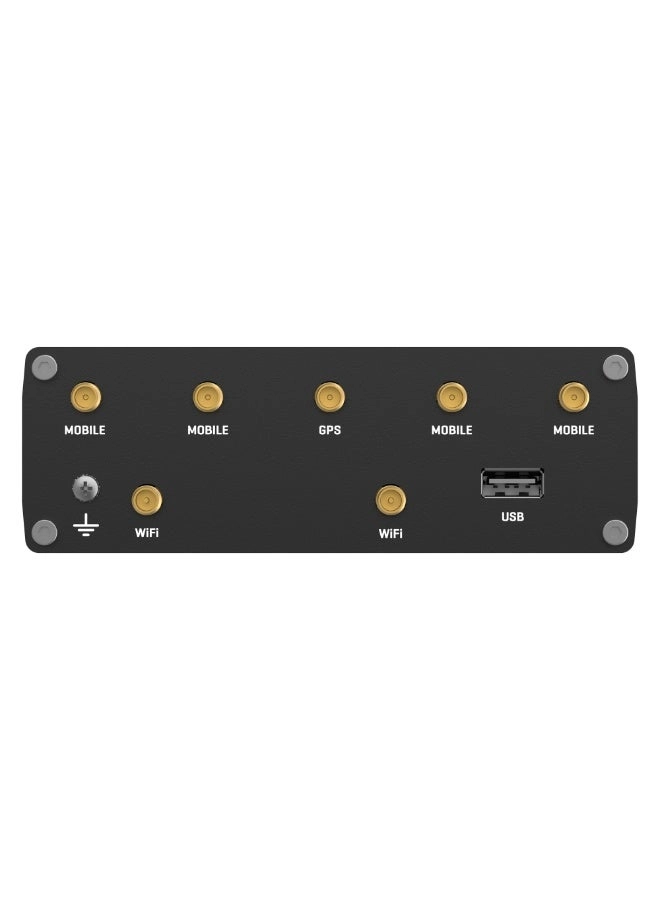

I/O & interfaces

• 1 × Digital Input, 1 × Digital Output
• 1 × USB 2.0 (storage, serial, modem, peripherals)
• 4 × SMA mobile antenna connectors
• 2 × RP-SMA Wi-Fi antenna connectors
• 1 × SMA GNSS antenna connector
• Grounding screw

Power

• Input voltage: 9–50 VDC
• Passive PoE via LAN1 (Mode B, 9–50 VDC; not 802.3af/at/bt)
• Power consumption: <4 W idle, <16.5 W max

Physical

• Aluminium housing
• Dimensions: 132 × 44.2 × 95.1 mm
• Weight: ~533 g
• Mounting: DIN rail, wall, flat surface (kits required)
• IP30 protection rating

Environment & compliance

• Operating temperature: −40 °C to +75 °C
• CE/RED, UKCA, RCM, CB, E-mark and other regional approvals
• HS code: 851762
