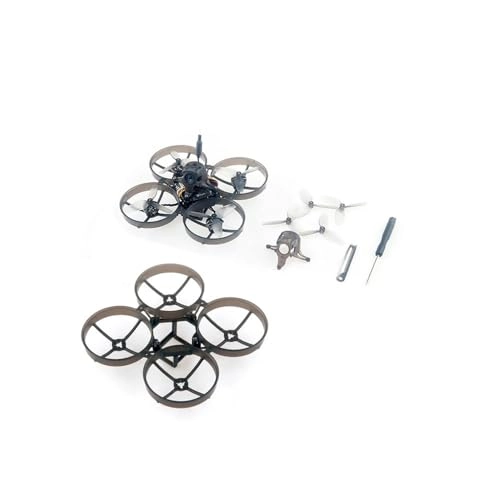

SxRakiO M80 + CrazyF405HD + RS1102 + DO4

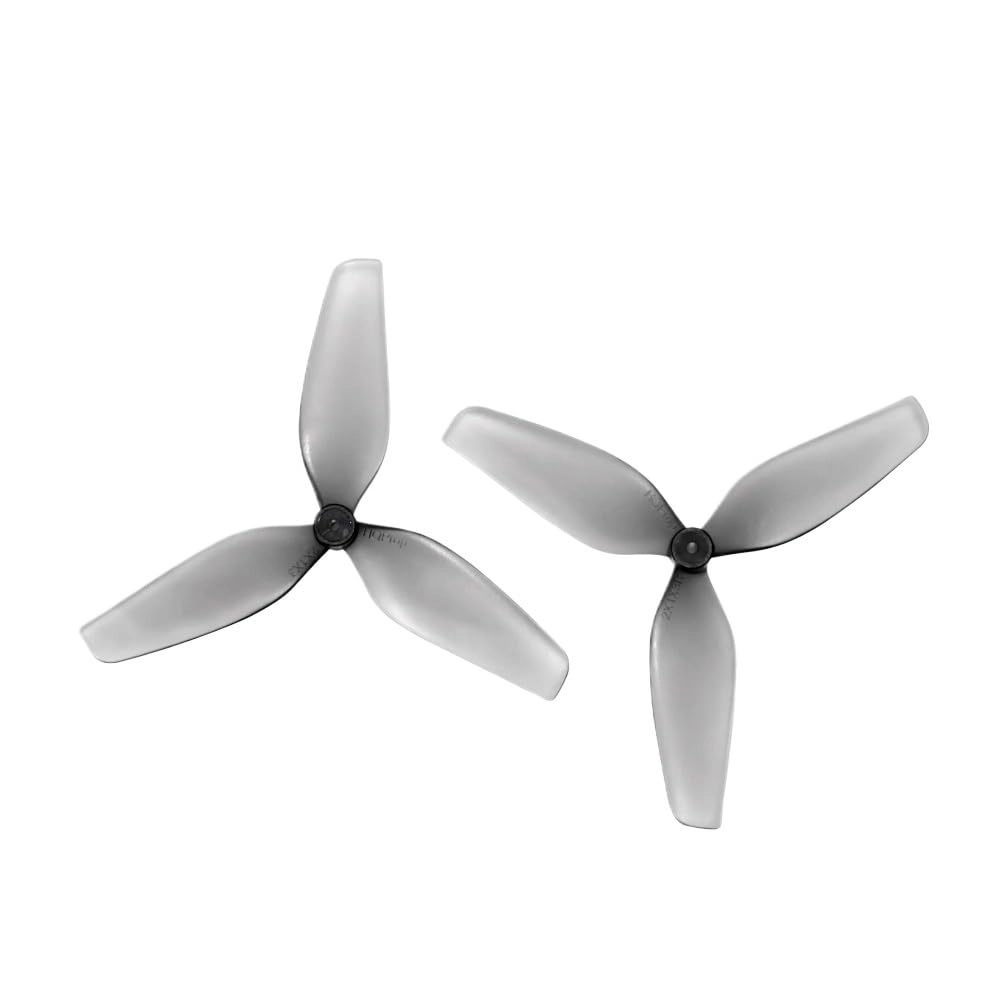

Package includes: Product Name Quantity Frame M80*1 CrazyF405HD Flight Controller Firmware: FLIGHTF4*1 RS1102 KV10000 Brushless Motor 45MMX3 Triple Propellers (4 Front + 4 Rear)*4 Air unit DO4*1 Canopy*1 Spare Parts Specifications: Motor Model: RS1102 KV10000 Configuration: 9N12P Stator diameter: 11 mm Stator length: 2 mm Shaft diameter: 1.5 mm Motor dimensions (diameter x length): 13.5 mm x 14 mm. Weight (g): 2.8 g Number of batteries at: 1-2S Propeller Weight: 0.3 g Pitch: 0.9 mm Blade diameter: 45 mm Propeller Hub Thickness: 5mm Propeller shaft: 1.5 mm flight controller Microcontroller: STM32F405RGT6 (168MHz, 1MB FLASH memory) Gyro sensor: BMI270 (SPI interface) Mounting Hole Size: 25.5mm x 25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Blheli_S 12A 4-in-1 Electronic Speed Controller Integrated Integrated Serial Express LRS 2.4G Built-in BMP280 barometer Built-in 8 Mbps black box Built-in voltmeter sensor, 110 voltmeter scale Built-in ammeter sensor, 470 amperometric scale ESC 4 in 1 embedded Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous, 15A peak (3 seconds) Factory firmware: ESC V0.19 Firmware Target: ZH-30 Default protocol: DSHOT300 When using 1S battery and high KV 0702/0802 engines, the starting power should be set to 1100/1200 On-board 2.4GHz ExpressLRS UART Receiver Selectable packet rates: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: 31mm enamelled copper wire <;12dBm Default Firmware Version: V3.0.1 Firmware Target: EP 2400 Firmware update via E*LRS configurator Compatible with D O4 air system Weight: Aerial system (including camera): about 8.2g Transmitter: 30 × 30 × 6 mm (L × W × H) Camera: 13.44×12.36×16.50mm (L×W×H) Camera Cable Length: 50mm Coaxial cable: 50mm Three in one cable: 50mm Operating frequency: 5.170-5.250GHz 5.725-5.850GHz Operating frequency varies by region; please refer to local regulations. Transmitter Power (EIRP): <;23 dBm (EC) 5.8GHz: <;30dBm (FCC) <;14 dBm (CE) <;30dBm (SR) Real-time image: 1080p, 30/50/60/100 fps If you want to use a FPV D remote control, please flash the flight firmware first and add the socket of the "SBUS" protocol when charging online. Next, import the default settings dump file into the CLI command and change the flight settings as shown below. No hardware modification of the flight controller is required:
