SxRakiO ES900TX - 2.4GHz + EPW5 - 2.4GHz 5-channel + EPW6 - 2.4GHz 6-channel

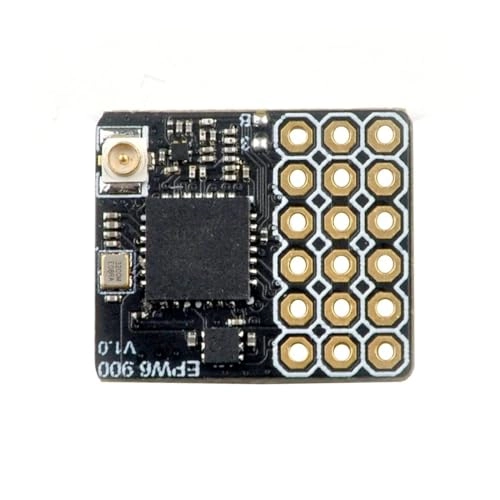

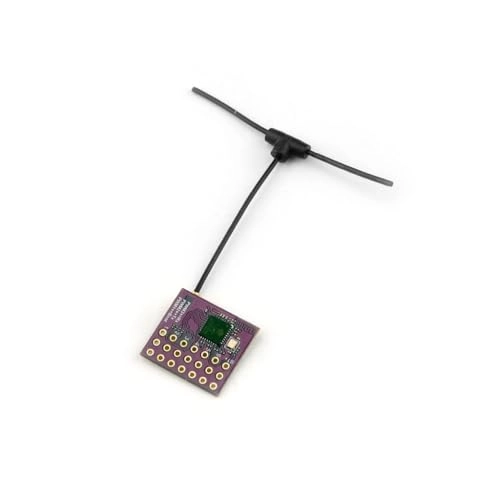

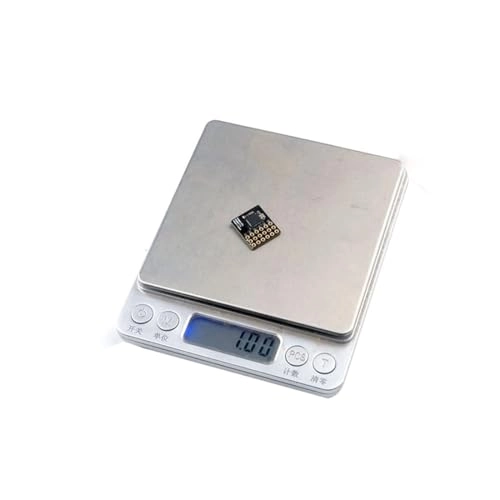

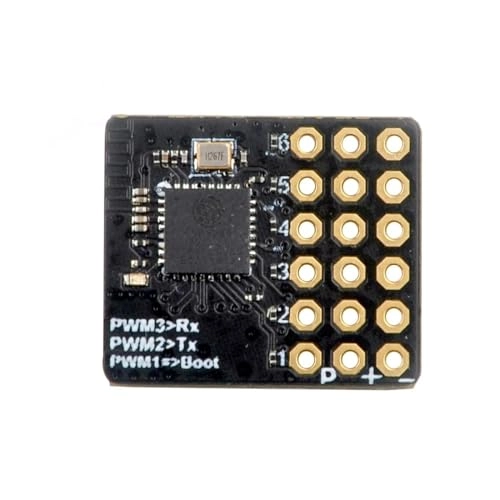

EPW6 900 6-channel PWM receiver for fixed-wing aircraft RM1641845738819428 Specifications: Product: EPW6 900 PWM Receiver ESP8285, SX1276 Antenna interface: IPEX MHF 1/U.FL 6 PWM outputs RF frequency: 868 (EU), 915 (FCC) <;17bm Receive protocol: PWM or CRSF Input Voltage: +5V C to "+" pa PCB size: 18.5mm x 16mm Weight: 1g without antenna Default firmware version: ExpressLRS v2.0 Firmware target: IY_900_RX_PWMP (factory default firmware), PWM receiver with 1 to 6 PWM outputs _RX_ES900_RX, CRSF serial receiver with one output Firmware update via UART or Wifi Package includes: 1 x EPW6 900 PWM Receiver 1 x 915 Antenna 1 x 868 Antenna 3 x 2.54mm 6 Pin Connector Binding Steps: 1. Turn on the EPW6 receiver. When the receiver LE green indicator turns off, turn it off immediately and repeat the above steps. When turning on the receiver for the third time, the LE green indicator will flash twice, indicating that the receiver has entered link mode. 2. Access the .LUA V2.0 menu on the remote and press the BIN button. If the pairing is successful, the green LE indicator of the module will light up. Receiver LE status: LE lighting indicates successful or established connection; double flashing LE indicates module is in bin moe status; LE slow flashing indicates TX module has no signal; LE fast flashing means that in WiFi hotspot mode, it can access receiver's Wi-Fi network in 10.0.0.1 via web browser and update receiver firmware (password A: expresslrs). EPW5 2.4GHz 5 Channel PWM Fixed Wing Receiver Product: EPW5 2.4GHz PWM Receiver Budget: ESP8285, SX1280/1281 Antenna interface: IPEX MHF 1/U.FL 5 PWM outputs RF frequency: 2.4GHz (2400-2480). Telemetry power: 12 bm Receiver protocol: PWM or CRSF Input Voltage: +5V C to "+" pa PCB size: 17mm x 14mm Weight: 1g/antenna Firmware: IY_2400_RX_PWMP, PWM receiver, 1-5 PWM outputs EP_2400_RX, CRSF, TX and Series Receiver. Firmware updates via UART or Wifi Package includes: 1 x EPW5 2.4GHz PWM Receiver 2 x 2.4GHz Antennas 3 x 2.54mm Pins EPW6 TCXO 2.4GHz 6-Channel PWM Receiver for Fixed-Wing Unmanned Aerial Vehicles Budget: Product: EPW6 TCXO 2.4GHz PWM Receiver ESP8285, SX1280/1281 Antenna interface: IPEX MHF 1/U.FL 6 PWM outputs RF frequency: 2.4GHz (2400-2480). Telemetry power: 12 bm Receiver protocol: PWM or CRSF Input voltage: +5V-8.4V PCB size: 19mm x 17.5mm Weight: 1.5 g/antenna Firmware: Target Option 1: Generic ESP8285 6xPWM 2.4 GHz PWM receiver, via 1-6 PWM outputs Target Option 2: _EP_2400_RX CRSF serial receiver, via TX and Firmware update via Wifi Package includes: 1 x EPW6 TCXO 2.4GHz PWM Receiver 2 x 2.4GHz Antennas 3 x 7 Pins 2.54mm
