Description
Feature:

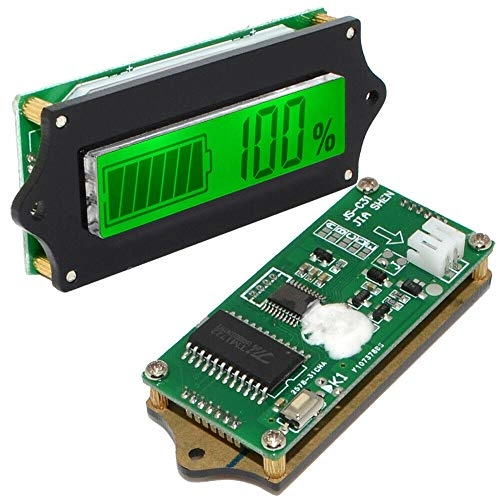

●This LCD battery monitor is a battery specific residual battery monitor. With low power consumption, can be a long time to show the battery power; It can be used in all kinds of light conditions with LCD screen.
●Suitable for lithium batteries, lead-acid batteries and other applications; simple wiring, using standard connector, convenient maintenance and disassembly.

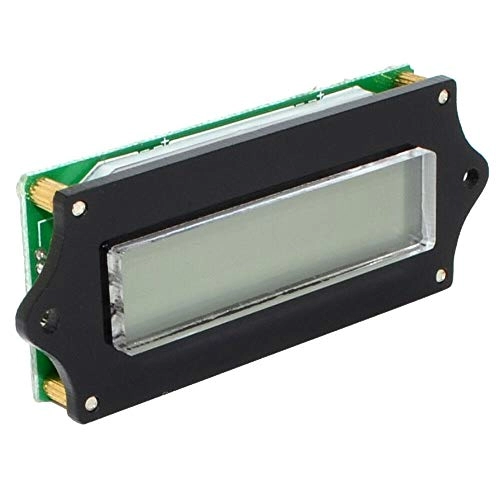

●Liquid crystal material,display clear

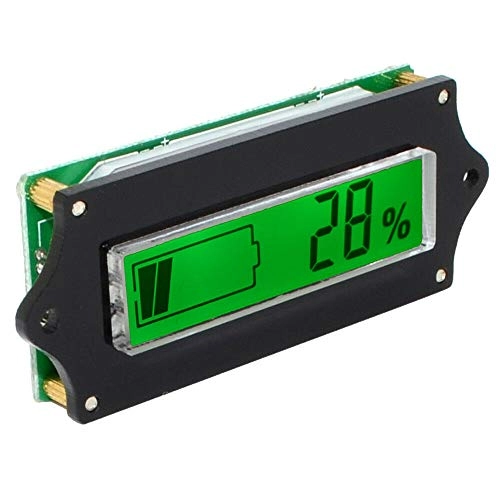

●The percentage of the remaining power,voltage,clear and directly
●Customize the type of battery,suitable for plumbous acid,3.7V lithium battery multi section series.
●The 6~63V wide input voltage,reverse protection
●The custom 10S later sleep,0.3V fluctuation can automatic wake-up sleep in 0.5S.
●Low power consumption,5mA with the backlight on,20uA when sleep.
Specification:
●Voltage Range: 8-70V(Reverse protection)
Applicable Specifications:
●Lithium Batteries:12-60V(2-15 string)
●Lead Acid Batteries:12-48V
●Work Current:5-15mA (with backlight)
●Energy Resolution:1%
●Voltmeter Accuracy :1%
●Using Temperature Range: -20- 70 degrees
Operating humidity:10-80%(non-condensing)

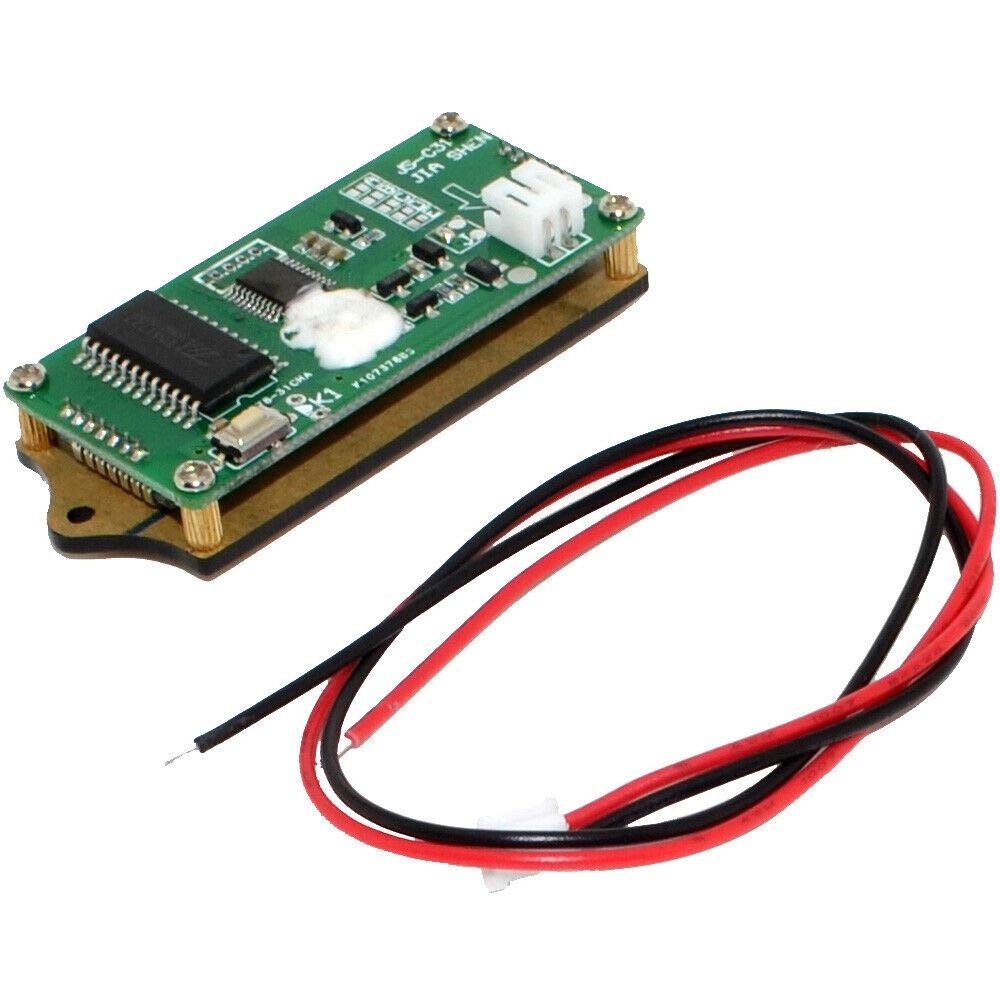

●Black wire connect negative electrode
●Red wire connect positive
Product size:about 5*2.4*0.8cm/1.97*0.94*0.31inch
Package Content:
1 x LCD Digital Voltmeter
Note:
- Please allow minor errors due to manual measurement. Thanks for your understanding.
- Monitors are not calibrated same, item colour displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
