CPU : I5-1235U Processor (10 cores 12 threads, 1.30 GHz,up to 4.40 GHz)
Processor Graphics :Xe Graphics eligible
Color :Black
Memory :DDR4
Storage :1xSSD
Network Card :1000M Gigabit LAN
Audio cards :HD audio
WiFi :2.4G and 5G dual-band WiFi.IEEE 802.11 protocol.Support Bluebooth

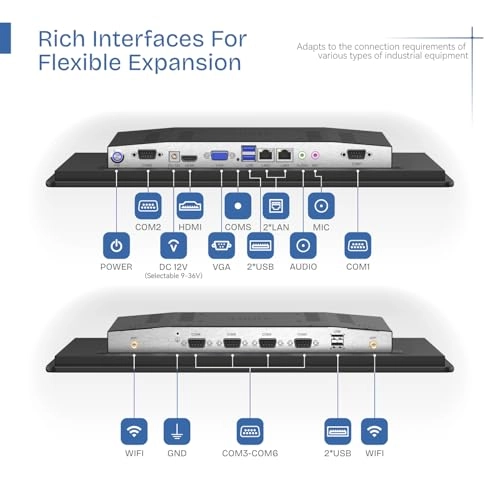

I/O port : MIC-IN+HP-OUT+ CLR-CMOS button+POWER+1* DC±12V + GND+WIFI+PHONE+1*HDMI+2*LAN+4*USB+6*COM (6*RS232 as defalut, COM2 selectable to RS485, If you have requirement for RS485, please leave a message to us)+1*VGA
Operating temperature : -5~60°C.
Storage Temperature : -20~75°C
Humidity : 5%-95%
Power :Output 12V-7A
Plug :Default standard according to your country (European standard / American standard / British standard) (If you have requirement for plug, please leave a message to us)
Operating System :Default Windows 11 pro in English version
ATTENTION : Other options, Windows 10 IoT Enterprise LTSC/ Linux or other system, other system language, do leave message on the order.
Display type :LCD screen
Display Size : 15.6 inch
Resolution : 1920×1080
Brightness : 250 cd/m² (Typ.)
Aspect Ratio : 16 :9 (H :V)
Contrast Ratio : 3000 :1
Response Time : ≤20ms(Typ.)
Front Panel Protection Class : IP65

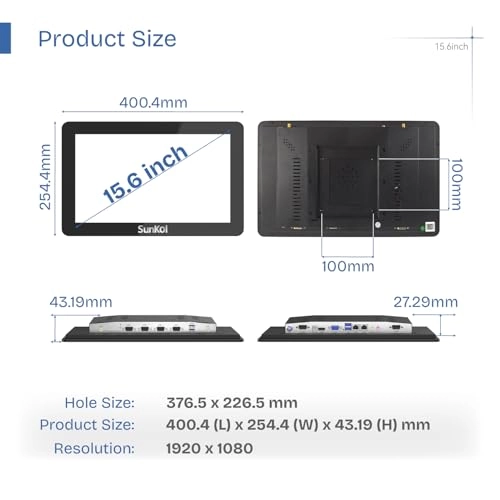

Physical Dimension : 400.4*254.4*43.19mm (L*W*H)
Recommended pre-cutting hole size : 376.5*226.5mm
Installation Method : Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
