Steloproad 5 Ports PoE Switch 5-ports

Overview：

This Mini Industrial 5 Port 10/100/1000Mbps Gigabit Ethernet Switch supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. This industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch also complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Features:

5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

Supports 802.3x Flow control

Supports DIN-Rail and Wall-mount installation

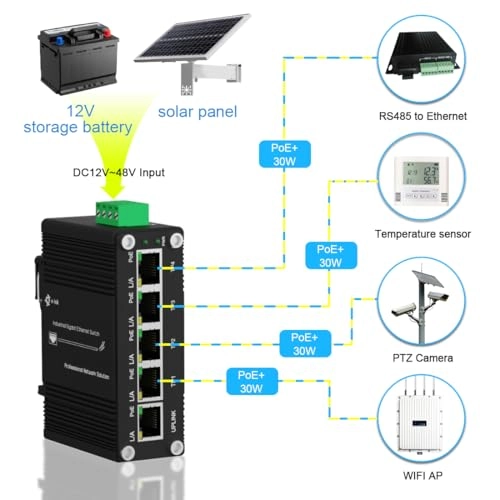

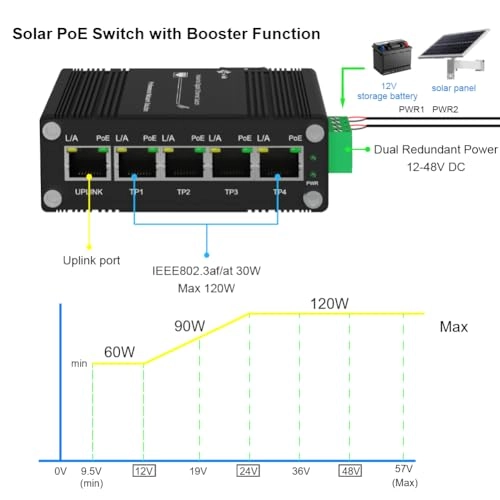

12~48VDC wide range power input

Industry standard design, dust proof and close design IP40, rugged high-strength metal case

-40°C to 75°C (-40°F to 167°F) operating temperature Specifications：

Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control

Packet Buffer Memory: 1Mbit

Max Packet Length: 9K Bytes.

Address Table Size: 4K MAC Address

Switch Capacity: 10Gbps/non-blocking

Ethernet Port: RJ45 10/100/1000Mbps Ethernet

Transmission distance: 100m (328ft)

Input Power: 12~48V DC

Power consumption: <6W

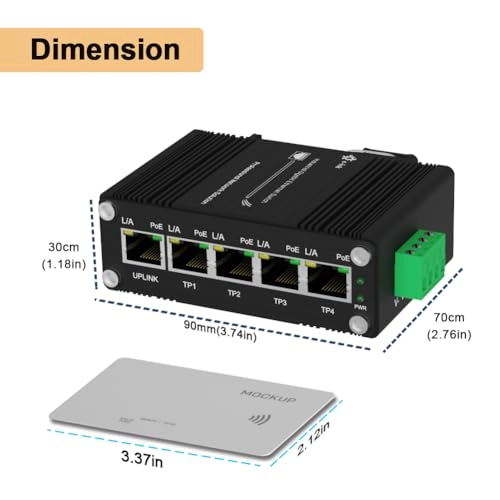

Mini Size (WxDxH): 3.74x2.76x1.15in (95 x 70 x 29 mm)Note: If you have any questions or find the Ethernet switch don’t work, please contact us. Our professional technical staff will teach you how to use or help you find the problem and solve it.
