SOUTES TS-DB45R

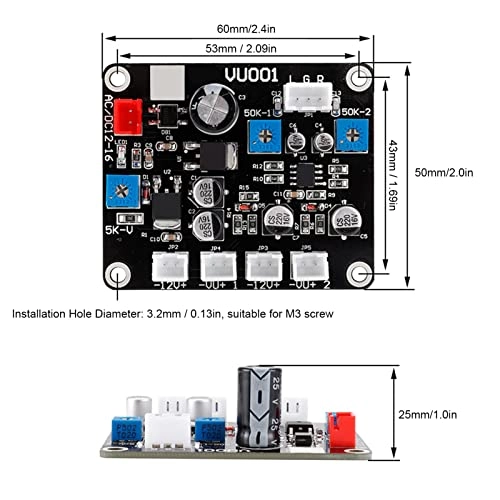

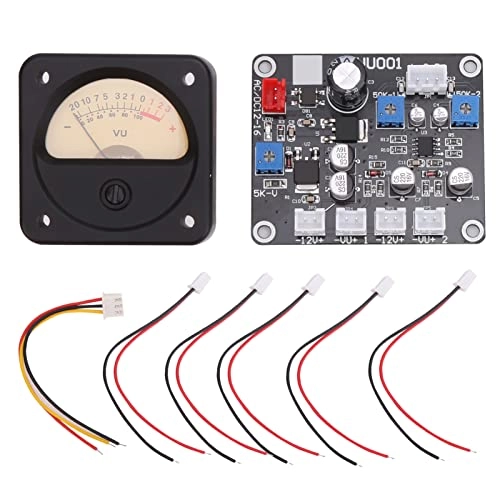

Feature: 1. VU meter with a driver board and flat cable, simple wiring, easy to install and use. 2. It can adjust the brightness of the backlight and the amplitude of the pointer swing. 3. With yellow backlight, high accuracy, it can read clearly in dim environment. 4. Mini audio level meter, suitable for DIY, home audio, car audio conversion, etc. 5. Using high?quality materials, durable, stable performance and long service life. Specification: Item Type: VU Meter Material: ABS+PCB VU Meter: Current Sensitivity: 0.775V±10% Current Sensitivity (External Series 3.6K Resistor): 1.228V±10% Internal DC Impedance: 3.9KΩ±10% Insulation Resistance: Above 50MΩ Friction: ±1mm Pointer Length: 17.3±1mm (from needle end to shaft center) Pointer Width: 0.45±0.05mm Meter Installation Position: Vertical Backlight Board: 1.8V-2.6V 20mA Yellow Driver Board: Power Supply: AC/DC 12-16V ≥5W Signal Input: ≤0.775V Backlight Power Output: 1.25V-11V 50mA Size: Approx. 60x50x25mm / 2.4x2.0x1.0in Package List: 1 x VU Meter 1 x Driver Board 6 x Cable Note: 1. Please allow 0?1 inch error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
