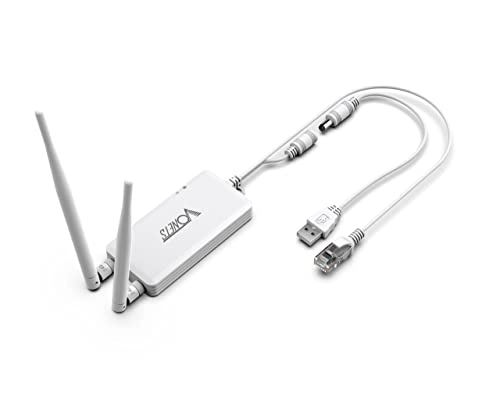

Shenzhen HouTian Network Communication Technology Co., Ltd. VAP11S

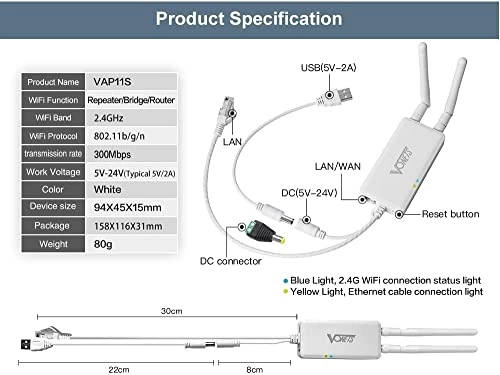

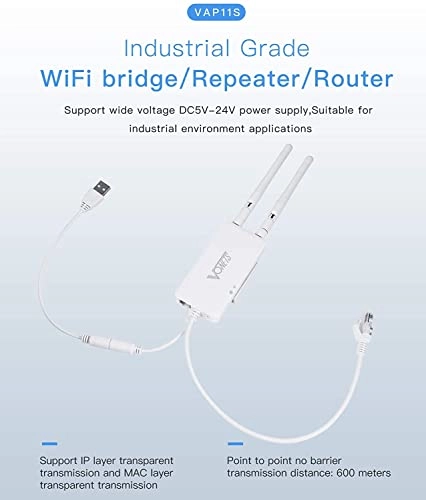

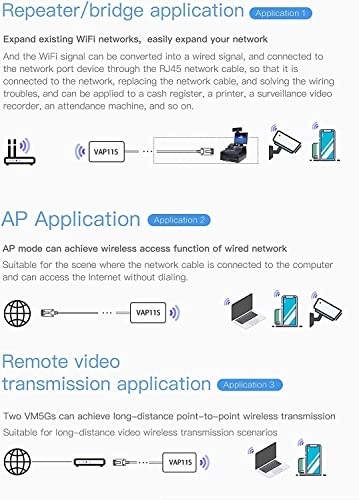

VAP11S is an Industrial 2.4GHz WiFi Bridge/Mini Router/Repeater, can achieve WiFi to Wired or Wired to WiFi function(Ethernet to WiFi or WiFi to Ethernet convert) Product description WiFi Bridge: IP layer transparent transmission, MAC layer transparent transmission; WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance; WiFi Router;WiFi access point (AP); Two 10/100Mbps adaptive Ethernet ports, and provide option accessories for expanding Ethernet port (one expansion); WiFi smart bridge function, WiFi to wired, wired to WiFi smart exchange; Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications. Basic Function (1) WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode; (2) WiFi hotspot memory upto 100 hotspots; (3) SSA signal strength detection and reporting function ; (4) Support Hotspot connection and configuration parameter import and export function to facilitate batch configuration of engineering projects; External interface 1）USB/DC power supply cable; 2）10/100M Adaptive Ethernet cable; 3）10/100M Adaptive Ethernet port (A dedicated Ethernet port expander can be used) LED Status Indication Ethernet Port (Cable) Status Light (Yellow); WiFi Connection Status Light (Blue); Packages: 1*VAP11S 2*External Antennas 1*Fixing kit 1*User manual 1*Retail Box Tips: 1. After configuration, if this device doesn't work with your camera or devices, please change the setting of "Transmission mode" to "MAC layer transparent"; 2. If you want to use Huawei or iPhone as a hotspot for WiFi bridge when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password.
