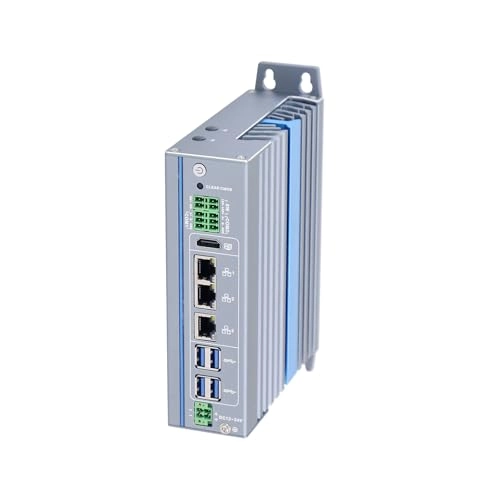

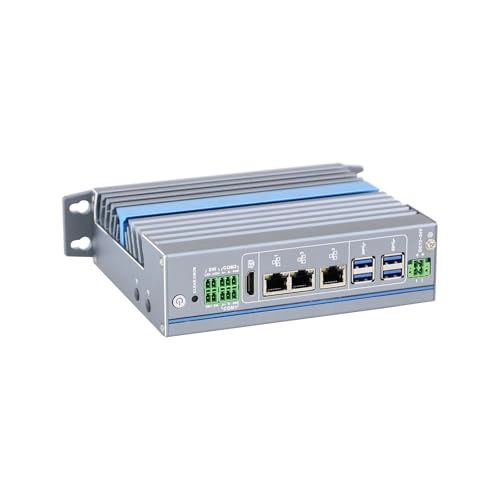

Model Number: ANDAQI IX18
Material: Aluminum
CPU: Intel Alder Lake N97 CPU 6M Cache, up to 3.60 GHz
Memory: 1 x SODIMM DDR4 3200 MT/s, max. 32GB
Storage: 1 x M.2 2280 M-Key SATA SSD, mSATA SSD
Network: Intel I210-AT Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
WiFi: Wi-Fi 6 802.11AX
Bluetooth: 5.2
Optional Expansion: CAN module etc

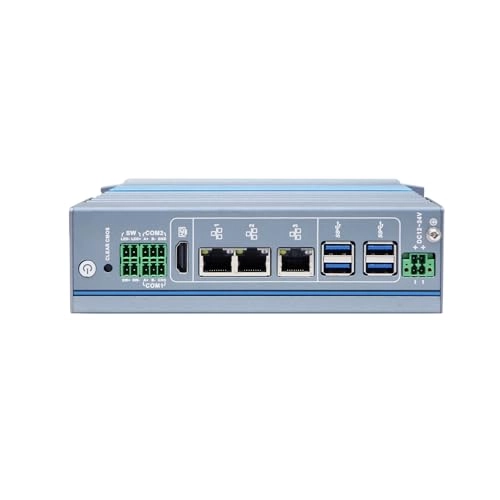

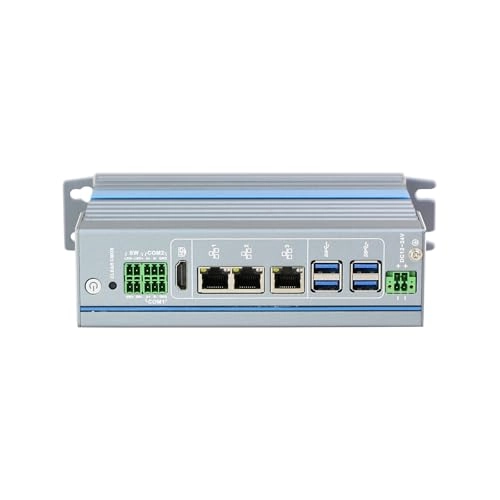

I/0 Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation,
HDMI, 3 x LAN, 4 x USB3.0, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V5A
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 205 x 146 x 50mm
Weight: 1.53kgs
TDP: 12W
Cooling system: Fanless
Packing List: ANDAQI IX18 book-style industrial pc, power supply, power cord, WiFi antennas, book-style mount, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0~255 level, TPM2.0
Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as book-style wall mount method,
if need Din Rail, please refer to Din Rail type
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave ANDAQI message on the order, thank you
