Parameter:
LED display screen:2.0+1.4 inch TPS
Lens:170°A+ High resolution wide angle lens
Language optional:Simplified Chinese/Traditional Chinese/English/Japanese/Korean/Russian/
German/French/Italian/Spanish/Portuguese/Thai/Polish/Dutch
Video encoding resolution :5K 30fps; 4K 60fps/30fps; 2.7K 30fps;1080P 120fps/60fps/30fps; 720P 240fps/120fps/60fps/30fps;
Video format:MP4
Photo resolution : 24MP/16MP/13MP/8MP
Photo mode: Photo, Auto, Burst, Timer
Auto take photos: 3 Sec/10 Sec/15 Sec/20 Sec/30 Sec
Burst : 3P/s, 5P/s, 10P/s
Timer: 3 Sec/5 Sec/10 Sec/20 Sec
Video mode : Video, Slowly, Loop, Lapse
Slowly : 1080P 4X/1080P 2X/720P 8X/720P 4X
Loop : 2 Min/3 Min/5 Min
Lapse: 0.5 Sec/1 Sec/2 Sec/5 Sec/10 Sec/30 Sec/60 Sec
Image Stabilization (EIS) :4K/30FPS ; 2.7K30FPS ; 1080P 30/60FPS ;
Zoom : 4X
Storage : card up to 128G
Power Frequency :50Hz/60Hz/Auto
USB :TYPE-C
Power:5V 1A
Battery:1050mA
Recording time:5K/90 minutes
Working temperature:-10°C~+55°C
Storage temperature :-20°C~+70°C
(Notes: Specifications could be subject to modification due to upgrading or updating.
Please regard the actual product as thestandard form)
Operation note:
1. This product is high precision products, do not fall or impact.
2. Please don't close to the camera with strong magnetic objects, such as magnets and motors, in addition to avoid the
product near the issue of strong radio waves of objects, strong magnetic field may can cause product failure, or destroy
images and sound.
3. Please don't place the camera at a higher temperature or direct sunlight.
Foreword :
This sport camera is a High-end HD camera product which could meet the customer's needs , with powerful function for take HD
videos, photos, Slow motion, voice recording, video dlisplay, and changeable battery, it's the best choice for outdoor sports
photography, home security monitoring, waterproof photography, you can record your life whenever and wherever you want.
Product Feature:

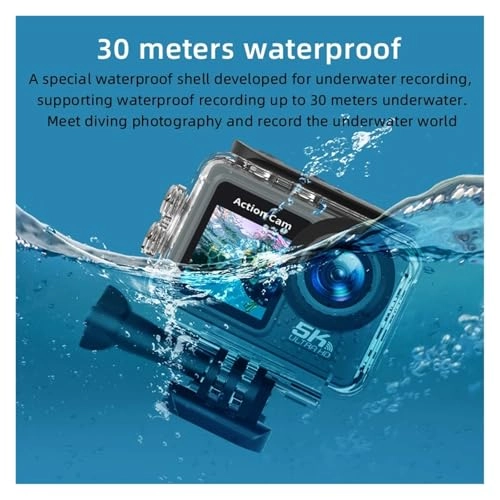

> Provide waterproof function waterproof shell, convenient for you to shoot wonderful water sports, waterproof shell can be
deep waterproof 30 meters
> Shooting function
> Video resolution Max 5K @30fps
> Wide-angle170°
> 24MP HD Lens

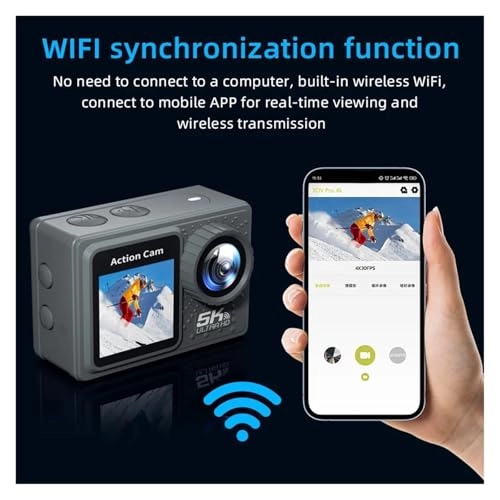

> Low power consumption, the WiFi opened 90 minutes available

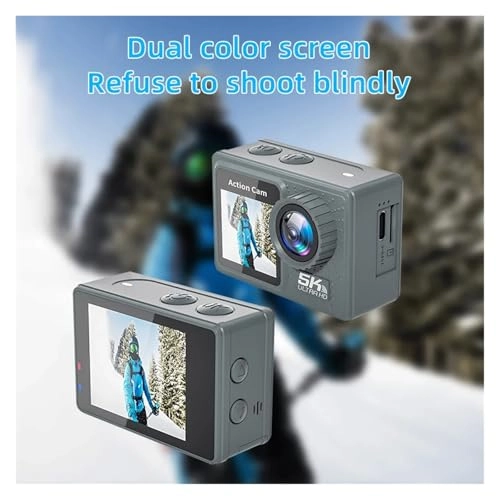

> Ultra HD 2"+1.4" display screen, display and replay video shot
> Changeable battery, easy to replace, prolong the service life
> Charging function while recording
> Supports up to 128GB memory card
> Multiple video recording formats 5K, 4K, 2.7K, 1080P, 720P
> MP4 video format
> JPG photo format
> Photo modes: Photo, Auto, Burst, Timer
> Video modes: Video, Slowly, Loop, Lapse
> Mini appearance
Function introduction:
Use operation instructions:
1. Insert SD card
