1. [Professional Grade Water Proof Design] Built for longevity, resilient to rain, wind, and harsh conditions.
2. [Multi Device Compatibility] Seamlessly works with tablets, security cameras, smartphones, and computers.
3. [LTE Modem for Outdoor Live Streaming] Access mobile networks for live streaming devices.
4. [Relay Functionality] Connects to other WiFi networks without a data SIM card.
5. [Stable Performance] Industrial 4G module for strong anti-interference capabilities.
Specification:

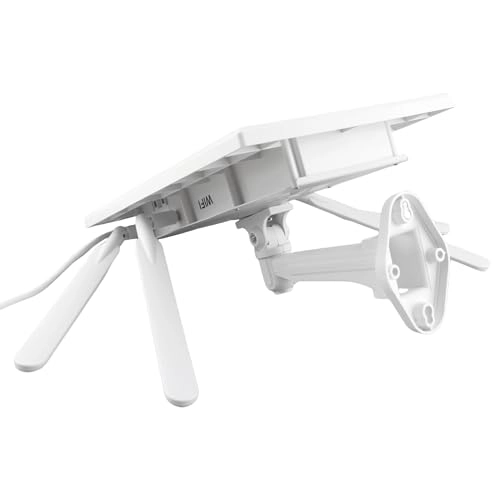

Item Type: Modem Router
Material: PVC EVA PCB ABS
Weight: Approx. 964g / 34oz
Product Size: Approx. 235x140mm / 9.25x5.51in
Solar Power: 6W
Power Supply: Solar Power or UBS Power Cord, Choose One of the Ways to Supply Power.
Battery (Built in): Li Battery 12000MAh
4G Main Chip: For ZX297520M
WIFI Chip: For RTL8192ES CG
Type: FDD LTE, TDD LTE, WCDMA HSPA+, TD SCDMA, GSM GPRS EDGE;
Speed:
FDD LTE, TDD LTE: 50M Uplink, 150Mbps Downlink.
HSPA+: 5.76M Uplink, 2Mbps Downlink.
TD SCDMA: 2.2Mbps Uplink, 2.8Mbps Downlink;
Port: 10/100M Adaptive RJ45 Interface. Support up to 8 Devices WIFl Access;
WIFI Standard: 2412MHz-2472MHz, 802.1lb g n.
Maximum Transfer Rate up to 72Mbps;
USIM or SIM Card (Excluded): Small SIM Card;
Note: Sim Card Slot on the Back of That Back Panel, Remove the Screws Are Opened to See the Card Slot to Insert the Card to Use;
Green Light: Full Charge
Blue Light Flashing: Solar Charging
Red Light: Low Battery
Blue Flash: Sim Card Is Working
Default Password: Admin
Applications: IPC, Yacht, Yard, , Farm, Ranch, Square, Telephone, Amusement , Passenger Ship, Broadcasting Speaker, PC.
Audience Groups:
1. Networking of Equipment in Extreme Environments Such as Oilfields, Mines and Construction Sites.
2. Entertainment and Communication During Wild Camping and Travelling.
3. Alternative to Expensive Wired Broadband to Solve the Basic Needs of Families or Small Businesses.
4. Temporary for Exhibitions, Music Festivals and Disaster Relief Sites.
5. Farms, Ranches, Construction Sites.
How to Use:
Device Access:
1. Insert Data Card: Please use a standard small SIM card (Excluded). Insert from top to bottom.
2. Wired Connection: Connect the device cable to the 4G router RJ45 port; if connecting multiple devices, connect a standard switch to the 4G router and then connect devices to the switch.
3. Wireless Connection: Turn on the device, search for WIFI named 'MIFI_XXXX' for example: Select one of the connections, WIFI default password: 1234567890 (you can change it by entering the password after accessing the WEB interface).
Package List:
1 x Modem Router
2 x Antennaes
4 x Plastic Expansion Pipe
4 x Long Screw
3 x Washer
3 x Screw
4 x Accessory
1 x USB Cable
1 x
1 x Instruction Manual
1 x Installation Bracket
1 x Installation Bracket Accessory
