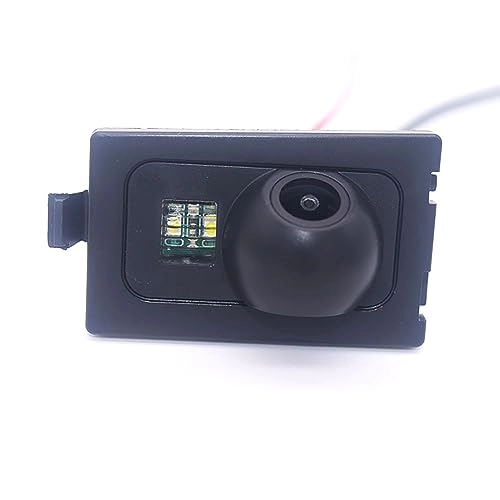

sedodogo Car Reversing Camera - Night vision Wireless 628 x 586

All cameras are checked before they are sent to you.

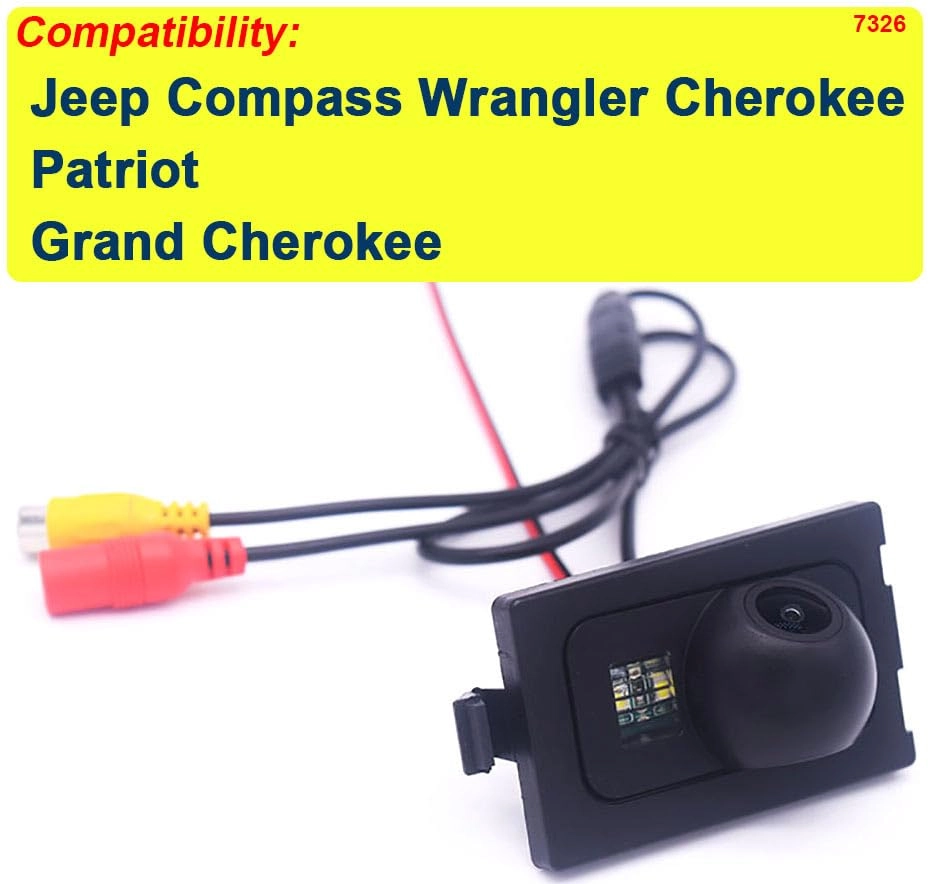

Replacement for: Jeep CompassWrangler CherokeePatriotGrand Cherokee

Specification:

• Image sensors: 1/4 inch colour CCD
• TV system: NTSC and PAL and AHD.
• Effective pixels: 628 x 586
• Resolution: 520 TV lines
• Video output: 1.0Vp-p, 75
• Waterproof: IPX 67.
• Working power (DCV): 12.
• Power consumption: 90 mA max.

Adjustment:

1. Adjust the camera to the license plate area of your car.

2. Adjust the camera lens to the best position.

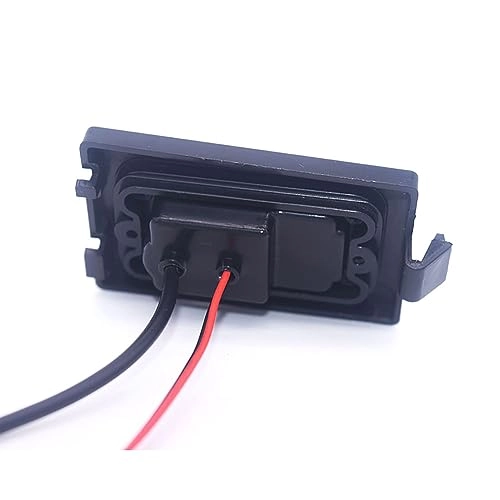

3. Connect the power cable (red and black) to the power cables of your vehicle's lighting.

4. Connect the video cable (yellow) to the screen.

Switch between AHD and CVBS formats:

By default, the camera format is AHD format.

If you need the CVBS format, you can cut off the white line next to the camera to switch to CVBS format.

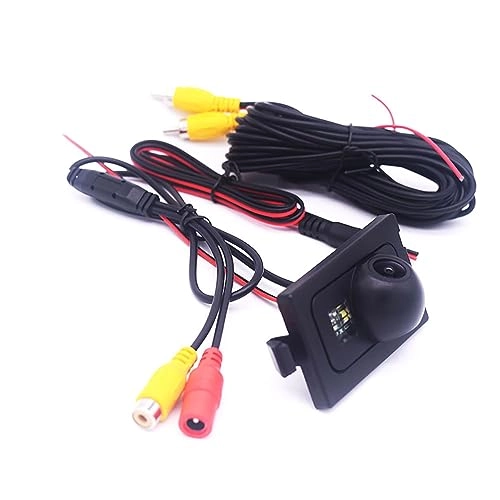

Packing list:

• 1 x CCD car rear view camera.
• 1 x 8 m video cable.
• 1 x power cable.
• 1 x user manual (English language not guaranteed).
