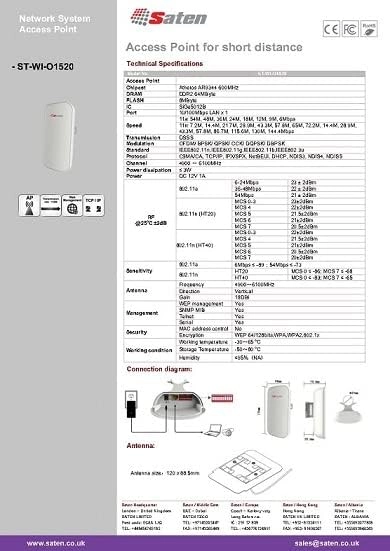

Access Point Chipset Atheros AR9344 600MHz DRAM DDR2 64MByte FLASH 8MByte IC SiGe5012B Port 10/100Mbps LAN x 1 Speed 11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps 11n: 7.2M, 14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, 72.2M, 14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4Mbps Transmission DSSS Modulation OFDM/ BPSK/ QPSK/ CCK/ DQPSK/ DBPSK Standard IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE802.3u Protocol CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5 Channel 4900 ～ 6100MHz Power dissipation ≤ 3W Power DC 12V 1A RF @25oC ±2dB 802.11a 6-24Mbps 23 ± 2dBm 36-48Mbps 22 ± 2dBm 54Mbps 21 ± 2dBm 802.11n (HT20) MCS 0-3 23±2dBm MCS 4 22±2dBm MCS 5 21.5±2dBm MCS 6 21±2dBm MCS 7 20.5±2dBm 802.11n (HT40) MCS 0-3 22±2dBm MCS 4 21.5±2dBm MCS 5 21±2dBm MCS 6 20.5±2dBm MCS 7 20±2dBm Sensitivity 802.11a 6Mbps ≤ -89 ； 54Mbps ≤ -73 802.11n HT20 MCS 0 ≤ -86; MCS 7 ≤ -68 HT40 MCS 0 ≤ -83; MCS 7 ≤ -65 Antenna Frequency 4900～6100MHz Direction Vertical Gain 18DBi Management WEP management Yes SNMP MIB Yes Telnet Yes Serial Yes Security MAC address control No Encryption WEP 64/128bits,WPA,WPA2,802.1x Working condition Working temperature -30～65 oC Storage Temperature -50～80 oC Humidity ≤95%（NA）
