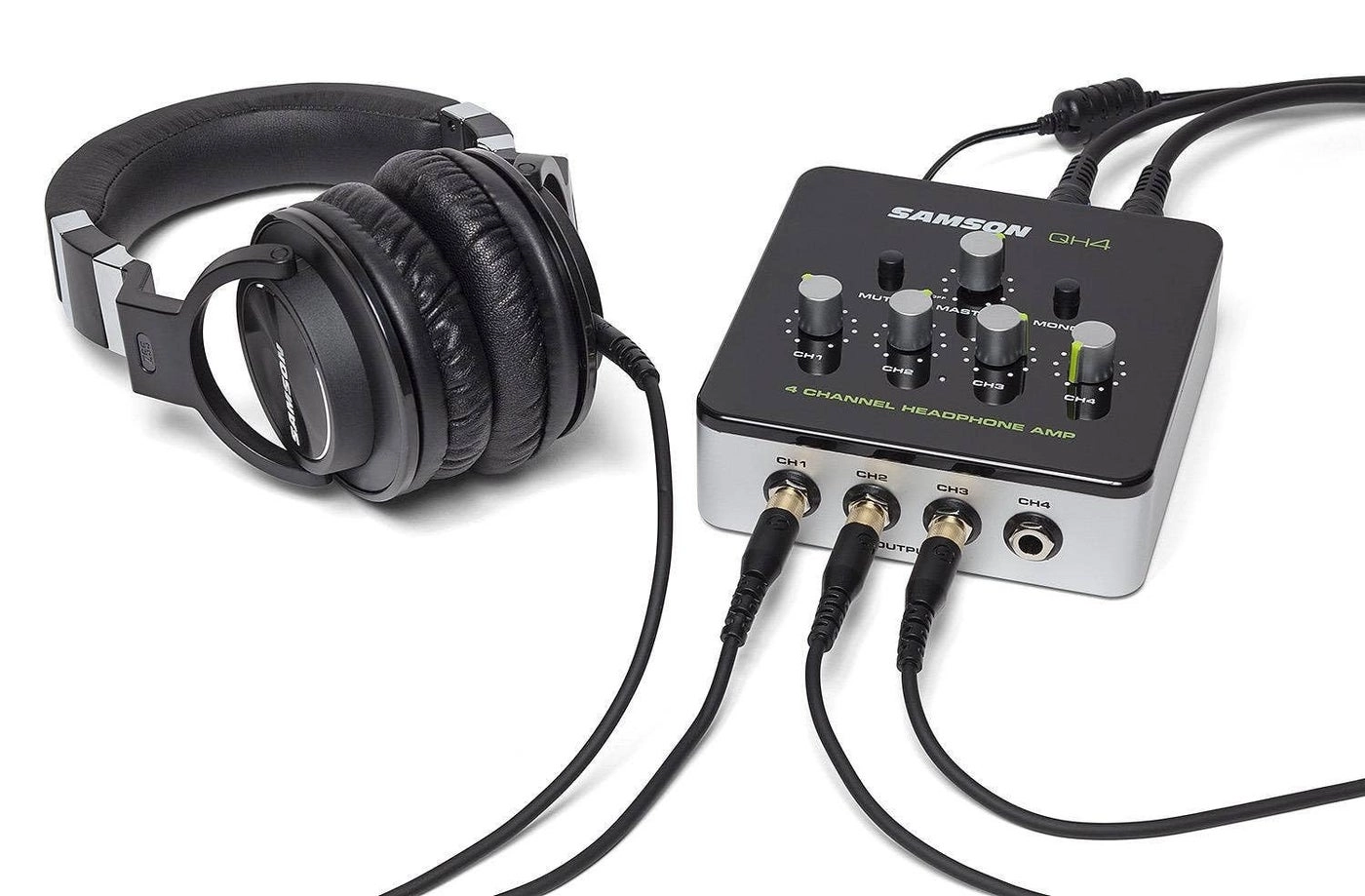

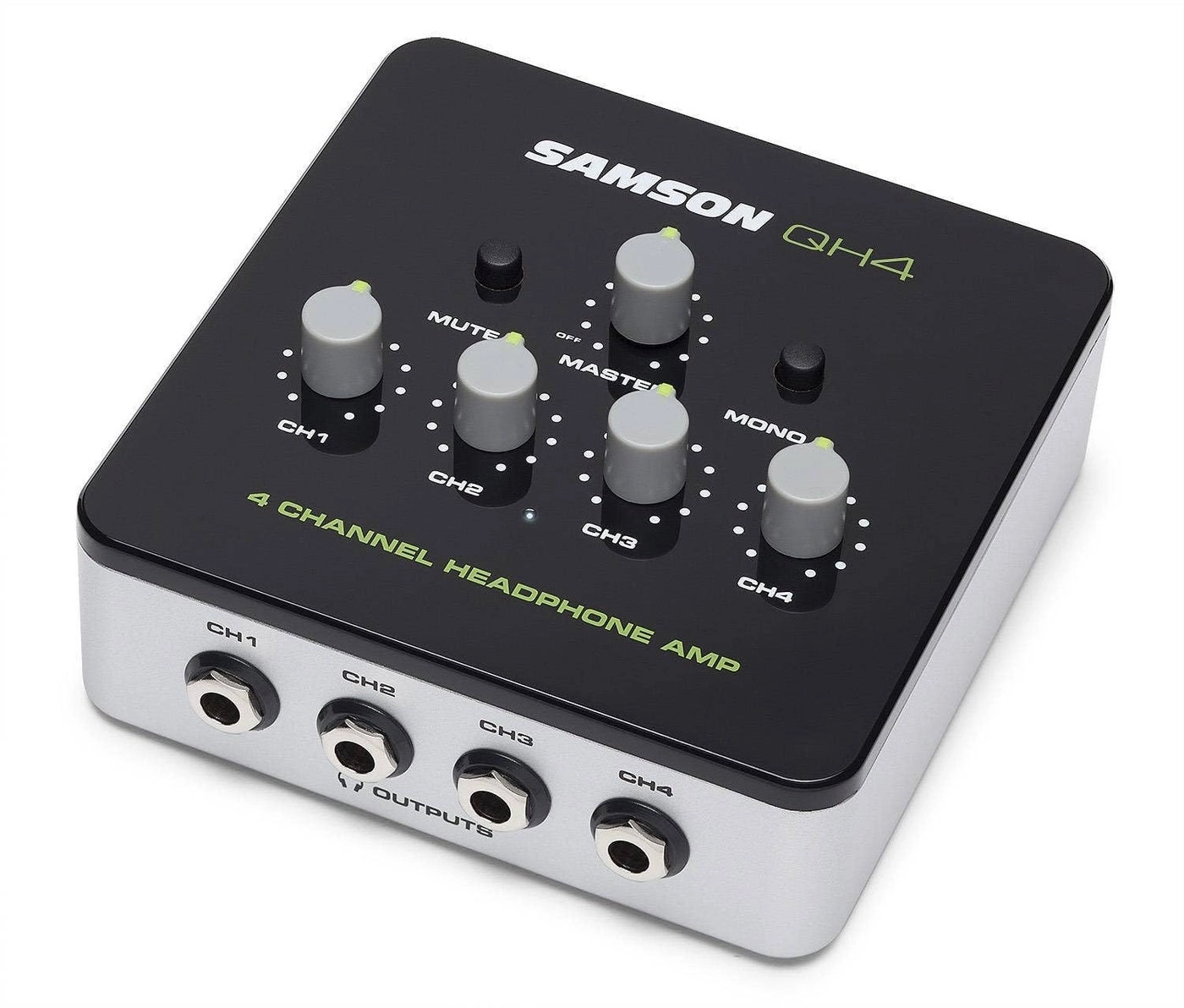

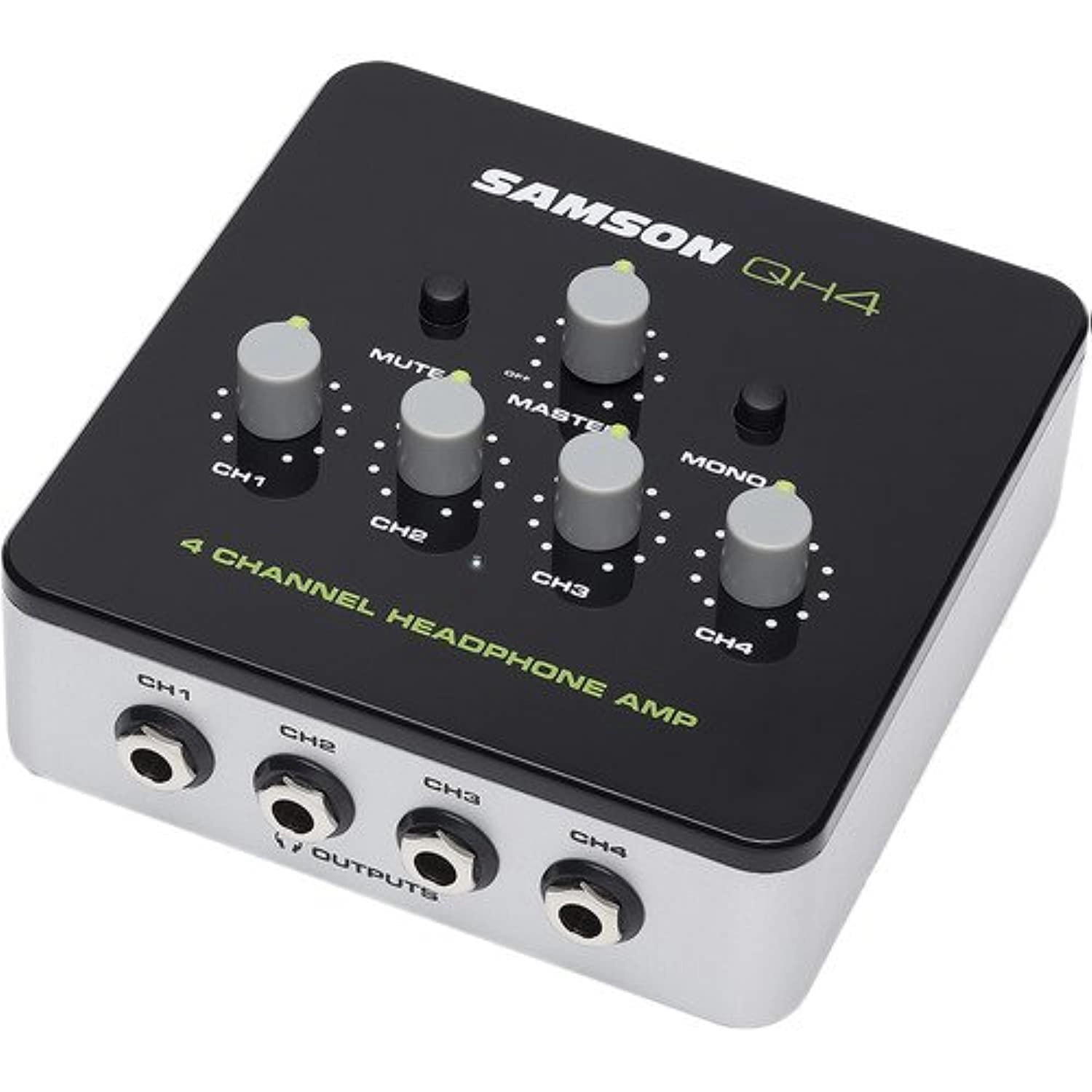

You've positioned your microphones, set your levels and all are ready for recording. Now you need a way for every performer to hear themselves. This is where the Samson QH4 comes in... The QH4 is a 4-channel headphone amplifier that distributes your audio signals across up to four individual headphones, each with its own volume control. Its compact design is perfect for use with any studio or desktop workstation, as well as with your laptop or smartphone when you're recording on the go.

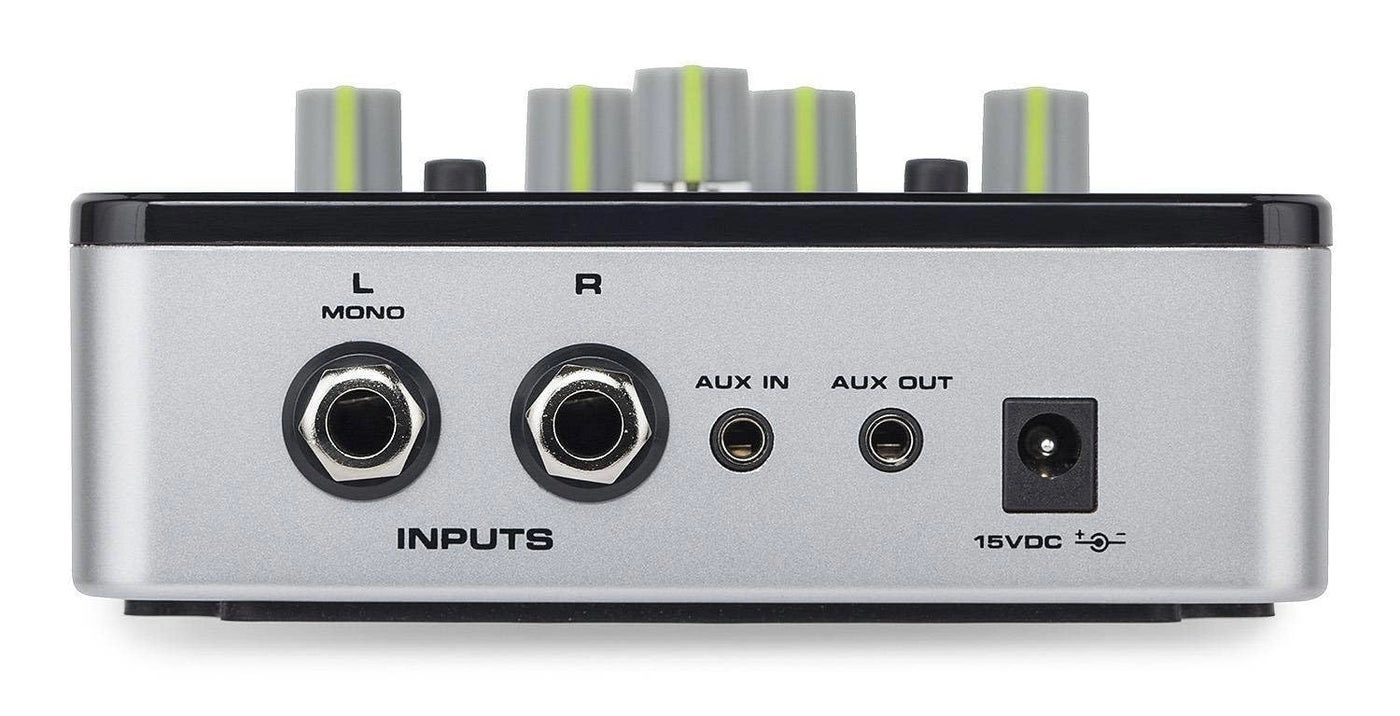

The QH4 features two balanced 1/4" inputs for connecting to your mixer or recording interface, as well as a stereo 1/8" aux input, perfect for playing music from your smartphone or other line-level device. In addition to the four 1/4" headphone outputs in stereo, the QH4 offers a 1/8" aux output that can be used to link multiple QH4s.
The four independent high-performance amplifier channels deliver clean, clear sound to up to four headphone devices that can operate between 16 and 18. And the power does not decrease even when all four channels are used. Designed with an extremely low noise level and a wide dynamic range, the QH4 represents a huge advantage compared to other headphone amplifiers on the market. Plus, the QH4's master volume control and mute switch make controlling the overall level of your headphones a breeze.
Before bouncing your mix, you should always check if it is compatible with mono speaker systems. The QH4 has a global mono button that allows you to quickly check the mono compatibility of your tracks. If you find that part of your sound is missing, you should check the stage of your recordings. This feature also allows you to take split left and right playback from a stereo interview and send both tracks to both sides of your headphones. This is great for quickly monitoring a podcast or shared track recording.
Whether you're following multiple performers in one studio, recording a podcast, watching a video with friends, or just listening to a few tunes, the QH4 offers great sound at amazing value.
- 4-channel stereo headphone distribution amplifier.
- Four independent 1/4" stereo headphone channels
- Individual volume control for each headphone channel.
- Two balanced 1/4" input connections
- Stereo 1/8" AUX input and output
- Master mute and mono buzzing switch
Specifications:
- Inputs: 2 x 1/4" balanced, stereo 1/8" unbalanced TRS
- Outputs: 4 x stereo 1/4" unbalanced, stereo 1/8" unbalanced TRS
- Controls: master volume, master mute, master mono, 4 x channel volume
- Noise base: -114dBu, 22k BW unweighted.
- Maximum power: 8.3 dBu, 1% THD+N, load 16R
- Output power: 282mW per side/564mW per channel, charged 32Ω
- Dynamic range: 22 dB, 22 K BW.
- Frequency response: 17Hz-47kHz (-3dB).
- Power supply: 15VDC adapter
