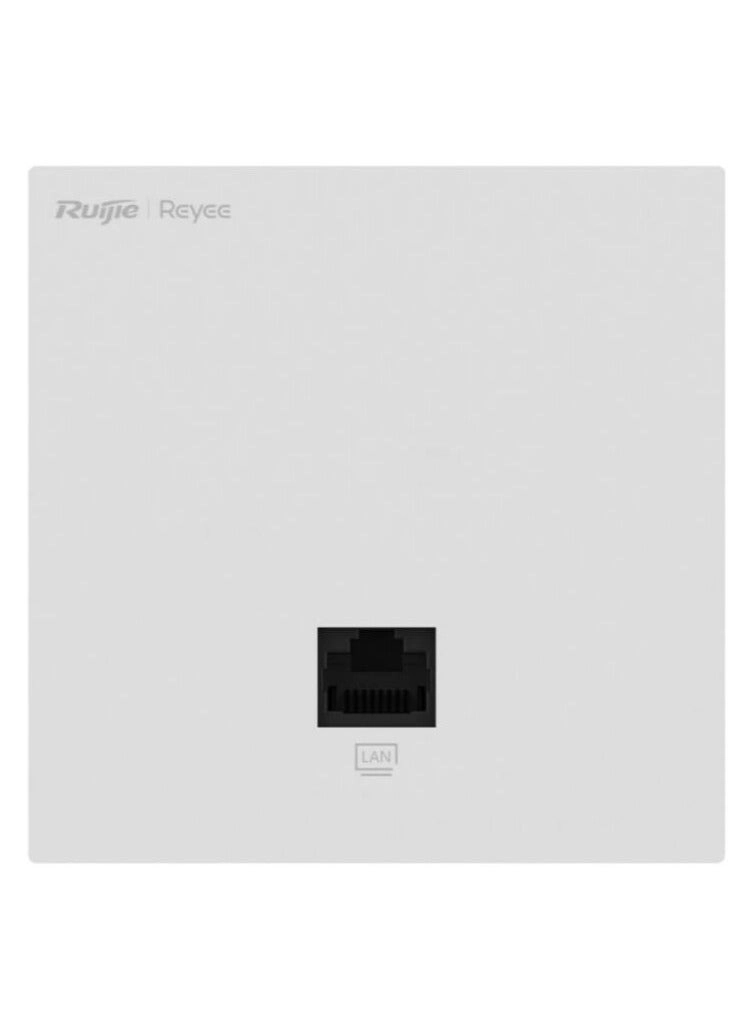

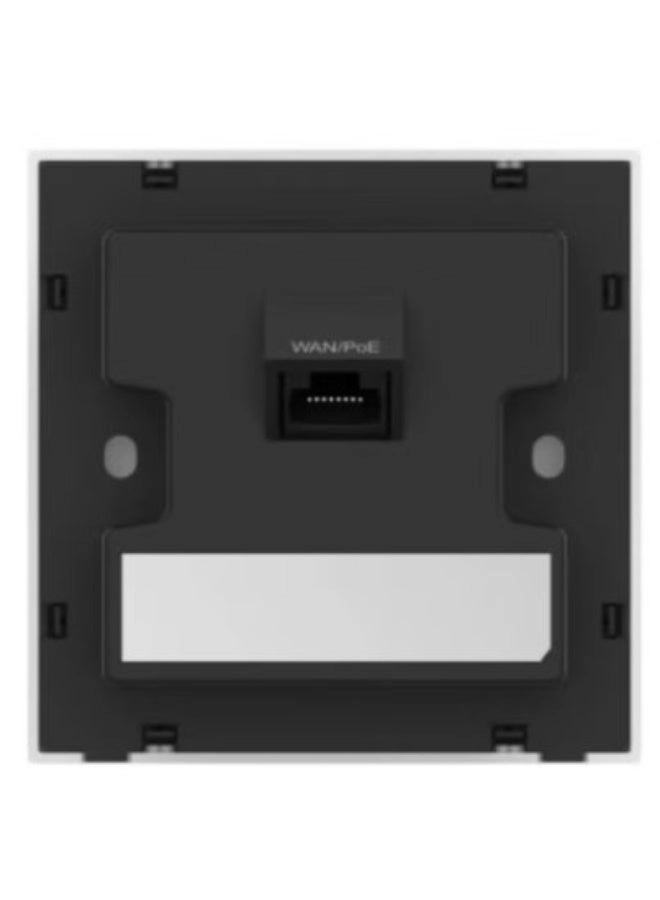

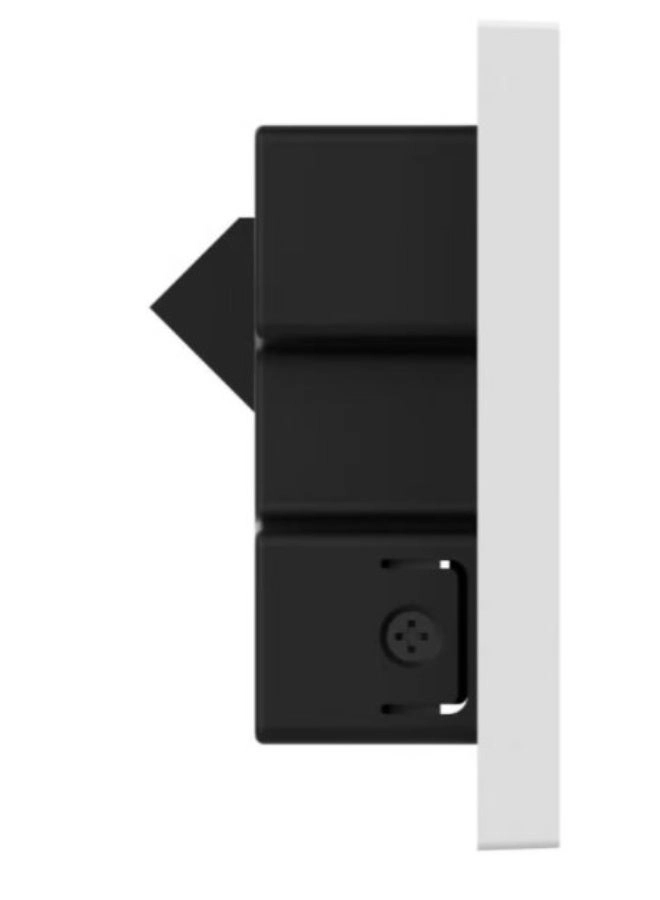

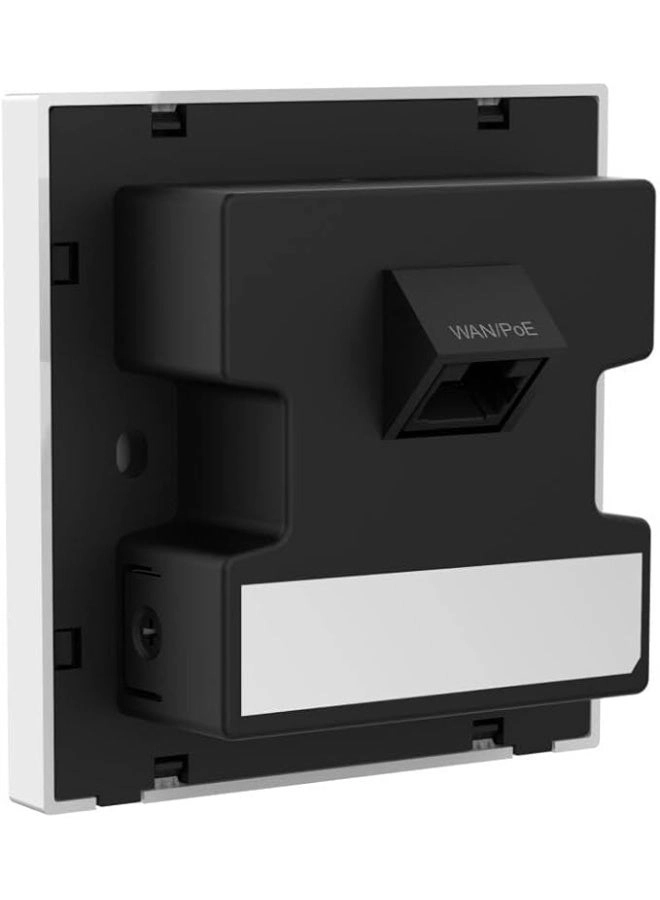

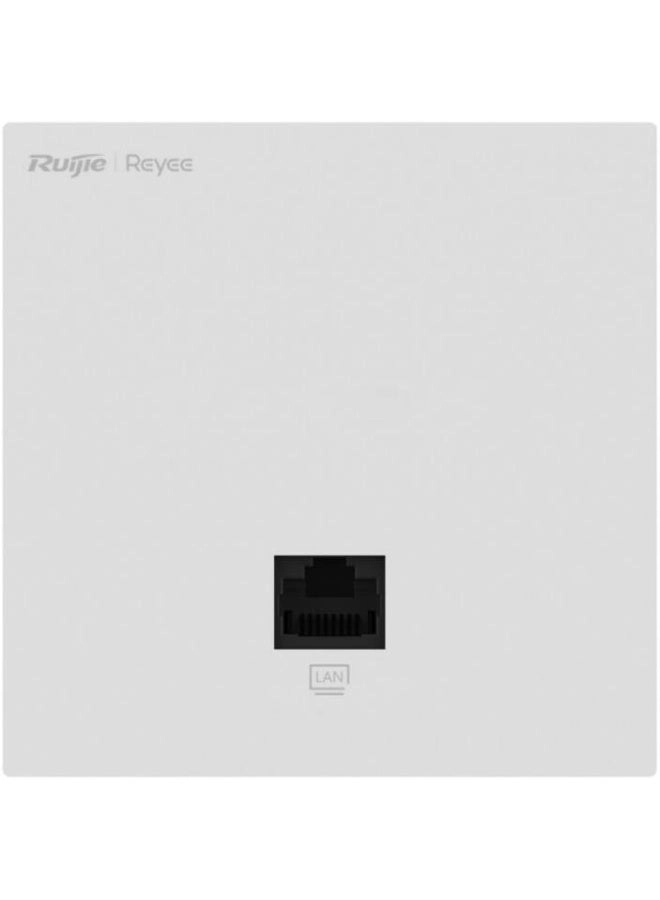

Ruijie Networks RG-RAP1261

Name: Ruijie Networks RG-RAP1261
Brand: Ruijie Networks
SKU: 348023
Availability: InStock

Best offer

AED

294⁷⁰

Key Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate (2.4 GHz): 574Mbit/s
Maximum data transfer rate (5 GHz): 2402Mbit/s
Number of SSID supported: 8
Antenna direction type: Omni-directional
Dynamic Frequency Selection (DFS): Yes
Antenna gain level (max): 4.13dBi
Maximum data transfer rate: 2976Mbit/s
Placement: Wall
DHCP client: Yes
DHCP server: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Antenna type: Internal

Specifications

Features

Antennas quantity

BeamForming

✓

Security algorithms

SSID, WPA-PSK, WPA2-PSK

MIMO

✓

Virtual LAN features

Port-based VLAN

Product colour

White

Antenna gain level (max)

4.13 dBi

Maximum data transfer rate

2976 Mbit/s

Placement

Wall

DHCP client

✓

DHCP server

✓

Maximum data transfer rate (5 GHz)

2402 Mbit/s

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

5 GHz

✓

6 GHz

✗

2.4 GHz

✓

Weight & dimensions

Weight

160 g

Height

42.40 mm

Depth

86 mm

Width

86 mm

Management features

Web-based management

✓

Dynamic Frequency Selection (DFS)

✓

Power

Power consumption (max)

10.20 W

Power over Ethernet (PoE)

✓

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)

✓

Design

International Protection (IP) code

IP41

LED indicators

Yes

Antenna direction type

Omni-directional

Computer system

Antenna type

Internal

Packaging content

Quick start guide

✓

Mounting kit

✓

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

VLAN support

✓

MIMO type

Multi User MIMO

Ethernet LAN data rates

10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Technical details

Spread spectrum method

OFDMA

Security

Number of SSID supported

Product Details

Experience Wi-Fi 6, Experience Gigabit Internet New upgrade to AX3000, Speed Test reaches 950Mbps, delivering the fastest possible internet experience. Unprecedented Thin Design with 8.5mm with Patent Technology, Thinner, Cooler, Stronger. Averagely reduced 7°C in working mode Secure Access Internal Device Remotely No matter dynamic or even private IP on gateway WAN port, Securely monitoring the NVR/IPC/Internal Server anytime from anywhere. Cloud, Make Your Business Easy - Reyee free DDNS - Cloud portal authentication - Remote monitoring and maintenance - Upgrade firmware via Cloud - APP library dynamic update

Files

Product Brochure

mmo_118098349_1703612691_6285_13742.pdf

PDF• 1.5 MB

User manual

mmo_118098349_1703612705_3352_10172.pdf

PDF• 6.3 MB
