Physical parameters

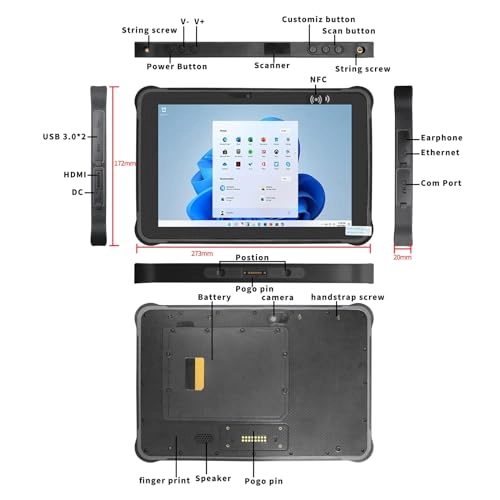

Dimension: 273*172*20mm
Weight: 1150g
Display: 10.1 inch, 1200*1920dpi
Touch Panel: 10-point capacitive screen, Corning gorilla glass, hardness above 6H, scratch resistant
Brightness: 1000nits
Camera: 5MP front / 13MP rear camera
1D/2D Scanner
Speaker: 8Ω/1.5W speaker x 2, 95db@0.1m
TF card slot : max 1TB, support SDHC/SDXCx1
SIM card slot: *1
USB: Standard USB-A 3.0 (Data transmission)

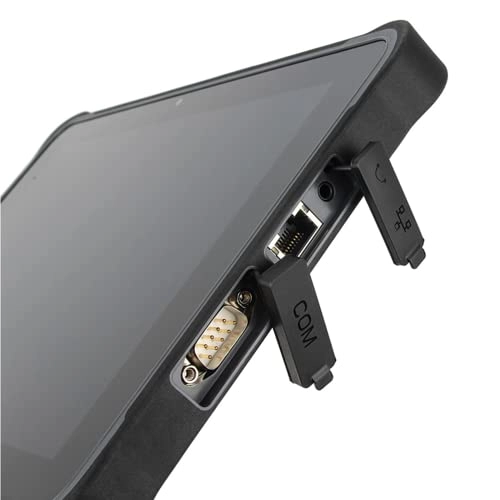

I/O: Headphone 3.5mm*1, HDMI*1, USB 3.0*2, DC 4.0mm*1, RJ45*1, RS232*1,TF card*1,SIM card*1
NFC: Built-in,ISO/IEC14443,ISO/IEC15693,Read distance 3-5cm,Front,
Power supply: Removable Li-poly Battery 7.6V/6000mAh
Endurance: 12 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )
Operating System: Windows 11 Pro
CPU: Intel JASPER LAKE N5100
GPU: Intel UHD Graphics 24 EUs
System memory: 8GB LPDDR4
Storage drive: 256GB EMMC
G-sensor: Built-in gravity acceleration sensor
GPS: U-blox NEO-7, support GPS, GLONASS,QZSS. Capture sensitivity: -160dBm
Compass: digital compass
Wireless Communication
Bluetooth: BT4.2 (BLE) class1 Transmited distance 10m
WIFI: WIFI 802.11(a/b/g/n/ac), Dual frequency 2.4G+5.8G
Environmental Characteristics
Industrial Protection Grade: IP65 waterproof & dustproof
Drop Grade: 1.5m drop survival to wood floors, in operation status
Working Temperature: -20℃ ~ +55℃
Storage Temperature: -25℃ ~ 80℃
Humidity: 5%-95% relative humidity
