Features:
1. 7 auxiliary LED lights, color night vision, clear image: Equipped with high brightness LED auxiliary lighting, even in low light can provide crisp and realistic color night images.
2. 【Full HD 1080P Camera】With Full HD 1080P resolution, capture every detail, whether it's license plate number or sidewalk, making it clearly visible, improving the visual perception of driving, so that every reverse gear is as clear as day.
3. Three adjustable standards, wide compatibility: supports CVBS, AHD 720P and AHD 1080P, three video output standards, which can be freely switched according to the display needs of different models.
4. European license plate frame design: the use of the standard European license plate frame style can be perfectly integrated into the look of the vehicle, to achieve a non-destructive and hidden installation, both aesthetic and practical, without compromising the overall aesthetics of the vehicle. 5. Wide Angle Lens to Cover a Wider Field of View: Equipped with a wide angle lens to provide wide viewing angle coverage, reduce the blind area, even obstacles on the sides of the vehicle can be obstructed, and further improve the safety factor in reverse.

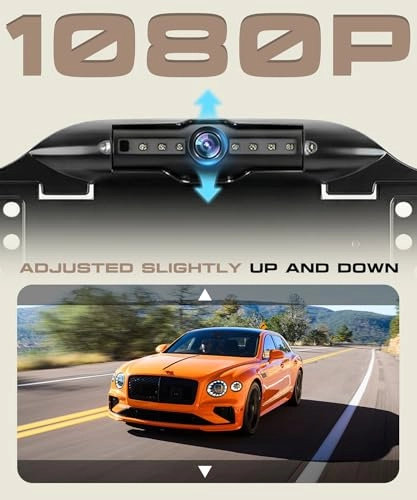

6. Flexible Camera Angle Adjustment: The camera supports manual adjustment of small amplitudes up and down, and the user can precisely adjust the shooting angle according to the actual situation of the vehicle and personal preferences to ensure the best position of the field of view.
7. IP67 Waterproof: The main body of the camera reaches the IP67 waterproof rating, effectively preventing the infiltration of rainwater, car wash water and other liquids, ensuring stable operation in different adverse weather conditions and prolonging its service life.
8. Stable Wired Transmission: The wired connection method is more stable and reliable than wireless transmission, reducing the risk of signal interference and ensuring smooth and lag-free video transmission.
Camera parameters:
Sensor: 1336+5322 1/3in
Pixels: 2 million
Resolution: 1920 x 1080
Definition: Full HD
Dynamic range: >45dB
Viewing angle: >100° horizontal
Minimum illumination: 0.1 Lux
Signal to Noise Ratio: >45dB
Video output: 1.0Vpp, 75ohm
Power supply: 5V (±5%) / 120mA
Operating voltage: 12 V.
Operating temperature: -20℃~+60℃, relative humidity 95%
Storage temperature: -40℃~+90℃, relative humidity 95%
Waterproof rating: IP67
Three adjustable signals:
CVBS PAL mirroring without backing line
AHD 720P PAL mirroring without backing line
AHD 1080P Mirroring PAL without background line

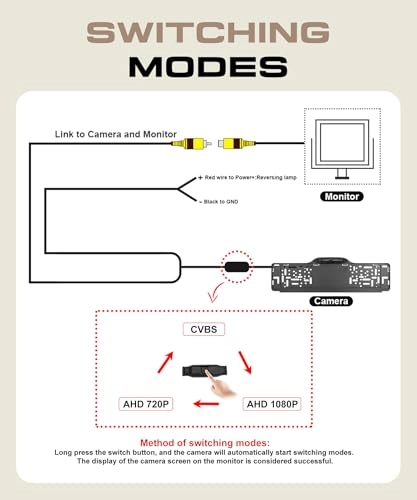

Change Mode: Long press the switch button and the camera will automatically start the mode change and the camera screen will be displayed correctly.

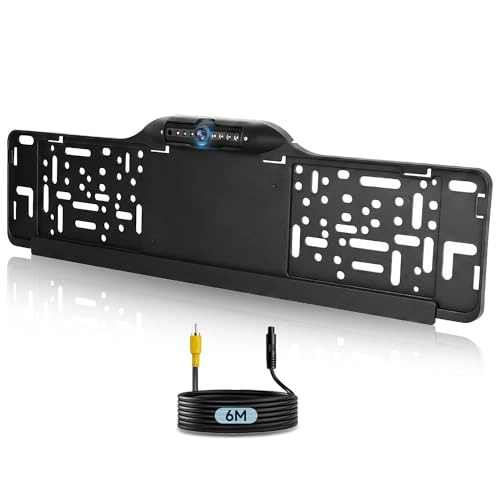

Box contents:
Camera
Video Extension Cable
User Manual
