rayihni UIM2523 - RJ45 3000V

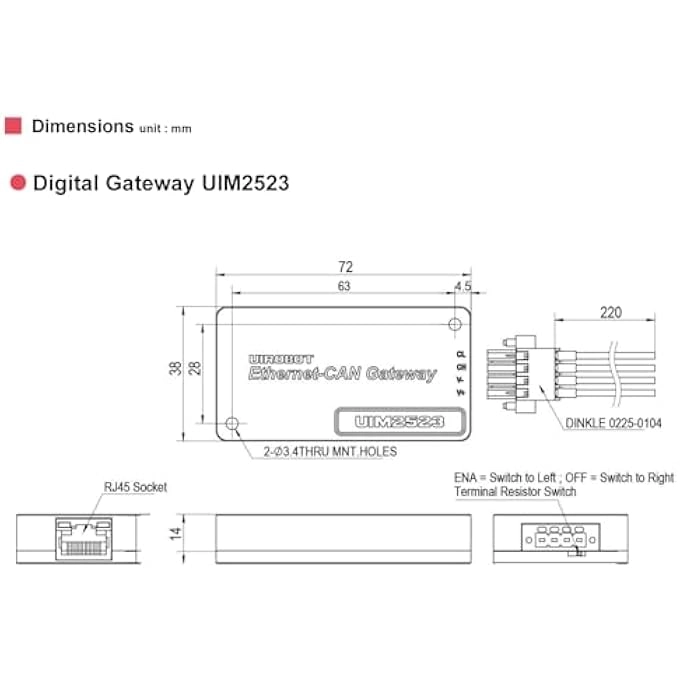

[CONNECTIVITY MODULE] Our gateway supports TCP/IP protocol and CAN bus connection, primarily used to connect the UIM series servo stepper, AC servo motion controllers, or DAQ I/O modules. [STRONG CONTROL SYSTEM] Featuring a robust DSP core and fault tolerance, along with a fail-safe user interface. Additionally, we provide free debug/control software and comprehensive SDKs, including .dll, .lib, .so files, and sample codes for C++, C#, etc., compatible with Linux and Win 32/64-bit platforms. [SAFE AND DURABLE] The Ethernet TCP-CAN Control Converter Gateway boasts a wide voltage input range of 12~48VDC, RJ45 interface, and is housed in a sturdy aluminum alloy casing, ensuring durability and efficient heat dissipation. [HIGH SPEED CAN] This active CAN 2.0 supports a maximum speed of 1 Mbps, with 3000V isolation. It also facilitates 3 types of CAN IDs: Node ID, Group ID, and Global ID, simplifying grouping and manipulation tasks. [PORTABLE] This Ethernet TCP CAN Bus adapter is suitable for various applications, featuring a significantly reduced size of 72*38*14mm and a weight of 65g. It's a lightweight, handy, pocket-sized mini serial port adapter, perfect for industrial robots, automatic medical equipment, and automated instrumentation. › See more product details
