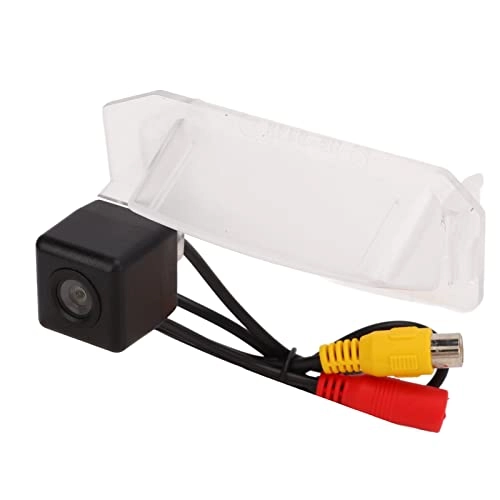

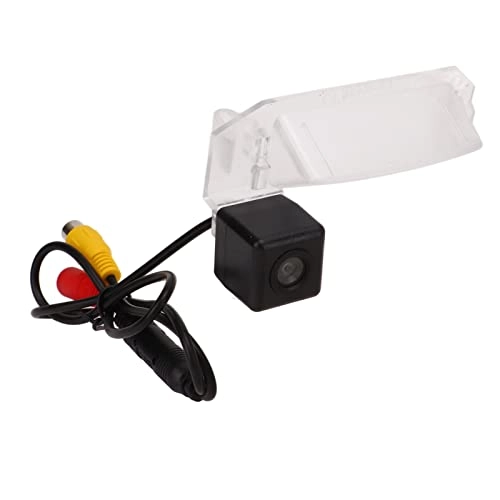

POOWO Rear View CCD Camera - Night vision 752x582 pixels

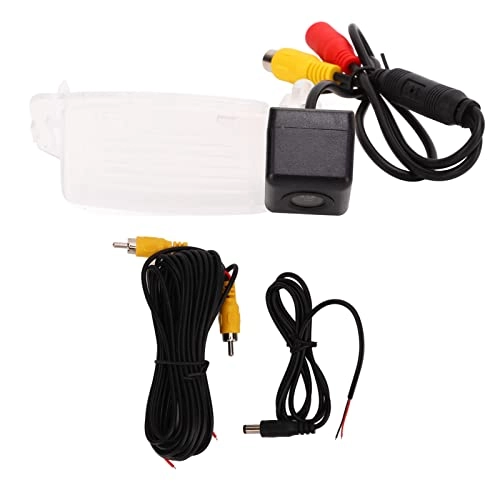

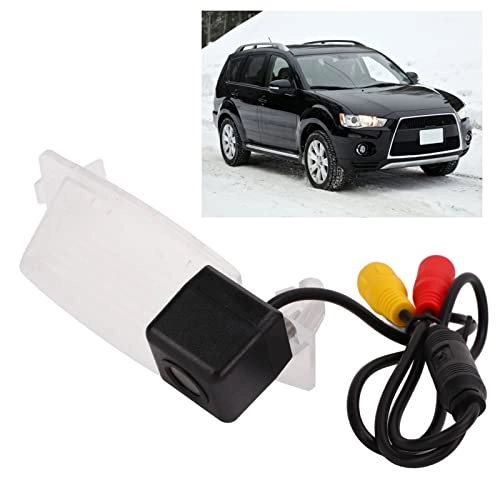

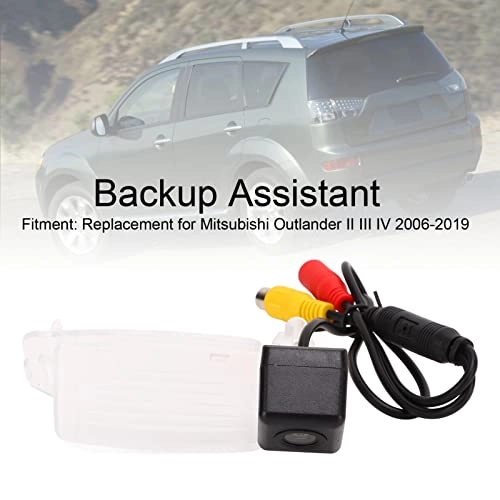

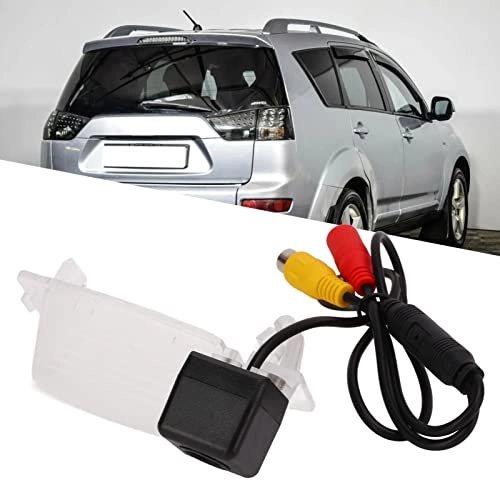

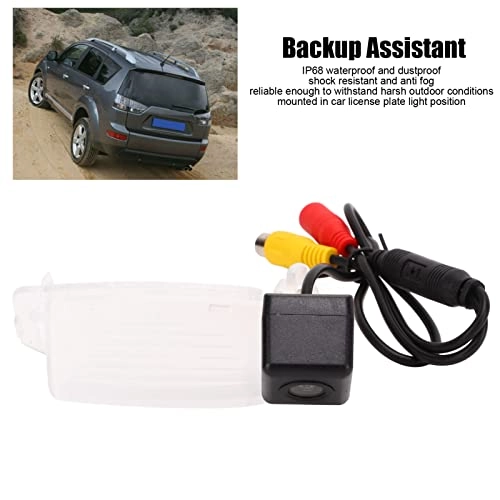

Specification: Item Type: Rear View CCD Camera Material: ABS Image Sensor: 1/3in color CCD TV System: NTSC PAL Reference Line Function: Yes Minimum Illumination. AGC: Automatic BLC: Automatic White Balance: Auto Video Color: Colorful Effective Pixels: 752x582 Resolution: 520TV lines Video Output: 1.0Vp-p, 75 Electronic Shutter: 1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S Signal to Noise Ratio: Better than 48db Lens Angle: 170 degrees Waterproof Grade: IP 68 Operating Temperature: -20℃ to 60℃ Storage Temperature: -30℃ to +80℃ Operating Power (DCV): 12 Current Consumption: Fitment: Replacement for Outlander II III IV 2006-2019 How to Use: 1.Takeoutthestocklicenseplatelightattherearofthecarandfixthecameraintothespeciallydesignedholewherethestocklicenseplatelightislocated. 2.Connectthebuiltinlicenseplatelightofthecameratotheconnectionofthesparelicenseplatelighttoobtainpower. 3.Connectthecamera'spowersupplytoyourcar'sreversinglights,theredwiretothepositive,andtheblackwiretothenegative. 4.Connectthevideocableofthecameratotheextensioncable. 5.Connecttheextensioncabletoyourcarmonitor. 6.Youwillseetheimagewhenyourcarisinreversegear. Package List: 1 x Camera 1 x Manual 1 x Wiring 1 x Harness
