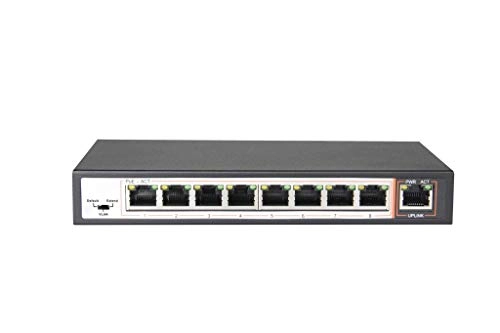

PoE Switch PS5081E 9-ports

Very compact PoE (Power over Ethernet) switch that allows you to power over LAN video surveillance cameras, Wi-Fi access points and any other PoE device compatible with IEEE 802.3af or 802.3at. PoE LAN gates (1-8) are powered and automatically detect the type of connected device. If it supports PoE function is provided up to 48V and up to 30W on each door, otherwise no power supply is provided. The connected device only provides the power needed to ensure maximum energy savings. Maximum total power of 96 W. The Uplink LAN gate (9) is not powered and serves to connect the switch to the router. The switch on the back of the device allows you to select one of 3 operating modes: 1) Default: signal transmission over Ethernet cable up to 100 meters. 2) VLAN: Electrically isolates Ethernet gates to reduce interference and prevent the spread of viruses and computer attacks; 3) Extend: Expand transmission capacity up to 250 meters. It also offers lightning protection, surge and surge protection for all connected devices. Power supply: 220V (included) Specifications: Number of LAN doors: 9x RJ45 (8x PoE + 1x Uplink). Transfer Rate: Fast Ethernet 10/100Mbps Bandwidth: 1.8Gbps IEEE Standard: 802.3af, 802.3at, 802.3i, 802.3u, 802.3x Voltage: up to 48V with automatic recognition of the connected device. Power: up to 30W on a single PoE port, maximum 96W in total. Power supply: 220V (included) Operating Temperature: 0-50℃ Operating Humidity: 10% - 90% (non-condensing) Certificates: CE, ROHS, FCC Size: 18.3 x 9.5 x 2.8 cm.
