PLANET IGS-10020HPT 8-Ports

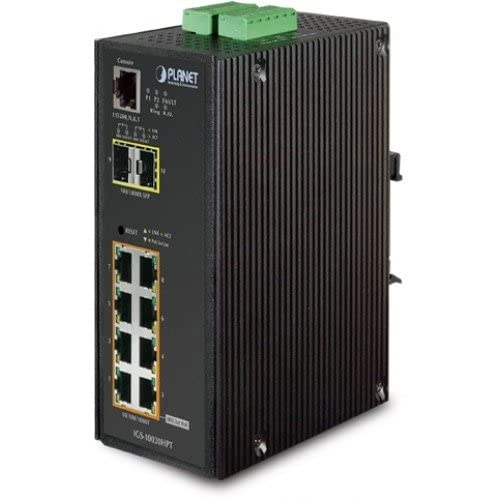

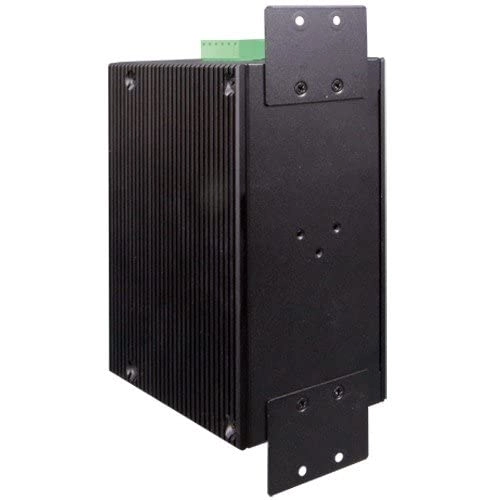

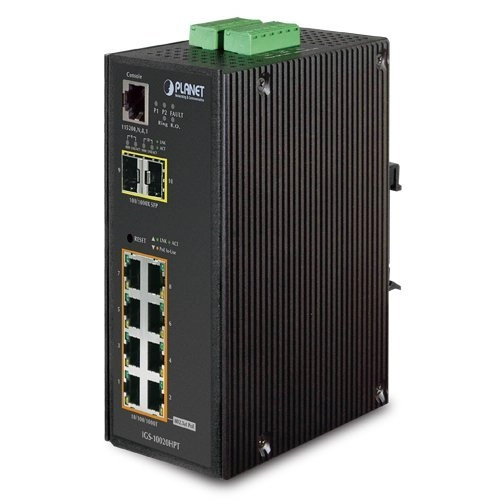

Planet IGS10020HPT. Switch type Managed, Switch layer L2. Basic switching RJ45 Ethernet ports type Gigabit Ethernet (10.100.1000), Basic switching RJ45 Ethernet ports quantity 8, Installed SFP modules quantity 2, Console port RJ45. Full duplex. MAC address table 8000 entries, Switching capacity 20 Gbit.s. Networking standards IEEE 802.1D,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE.... Power over Ethernet (PoE). Wall mountableEnvironmentally Hardened DesignPLANET Industrial 8Port Gigabit 802.3at PoE Switch, IGS10020HPT, is equipped with rugged IP30 metal case for stable operation in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS10020HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under wide temperature range from 40 to 75 degrees C, the IGS10020HPT can be placed in almost any difficult environment. The IGS10020HPT also allows either DIN rail or wall mounting for efficient use of cabinet space.Redundant Ring, Fast Recovery for Surveillance SystemThe IGS10020HPT supports redundant ring technology and features strong rapid selfrecovery capability to prevent interruptions and external intrusions. It incorporates advanced Redundant Ring technology, Spanning Tree Protocol (802.1w RSTP), and redundant power supply system into customer's industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS10020HPT also protects customer's industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be less than 50ms to quickly bring the network back to normal operatio
