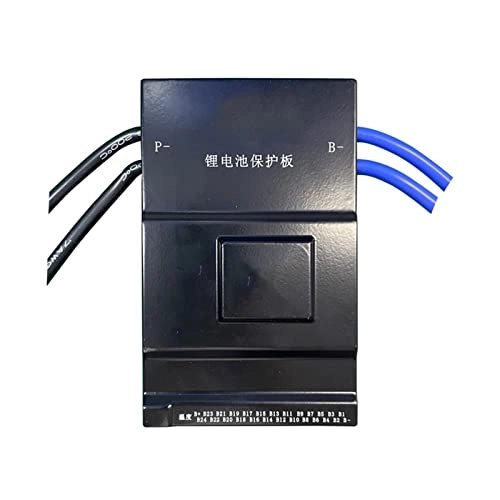

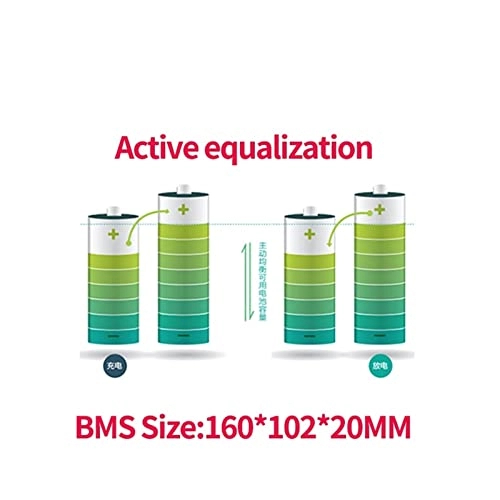

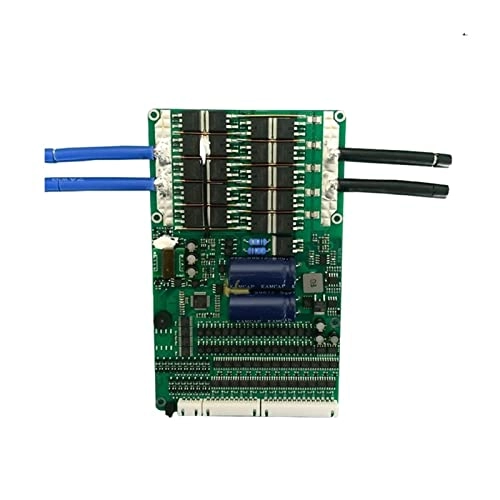

Description This is an Active BMS, it supports 7S-24S of Li ion and 8S-24S of 200A continuous current It also has 2A active equalization current It can set up the equalization and the charge & discharge protection parameter through APP It can display the single series of battery After connected the BMS please use the power supply which is 5v greater than battery to activate it Product character 1Active balance functionality no need to lose the battery capacity to balance the difference of sells raise the battery usage efficiency for 95% 2.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit etc... 3.Single battery series range is 1~5V, the precision is 5mV 4.With the function of coulomb meter, the remaining power is very clear 5.BT communication function, the battery status can be displayed Working condition Workable temperature: -20~70 Power requirement: ~, it could be worked by battery power or external Power supply Power dissipation: In balance: 10mA & No balance 6mA Notice The 485 converter just for transfering the communication to be RS485 it can not be connected to PC directly, it needs to connect to another 485 module to connect to PC, The yellow wire is 485A , the white wire is 485B, the black wire is for GND and you don't have to connect the black wire, We will provide you the 485 protocol after bought the 485 converter, and we don't provide the software, if you are not the familiar with Serial Port Debugging Tool, please be careful when you want you purchase this product Balanced way: Active equalization Active equalization current:2A internal resistance:0.3m Rated discharge current:200A Maximum discharge current:350A Overcurrent protection(Adjustable):10-200A Wiring method:common port Monomer range: 1V-5V acquisition accu
