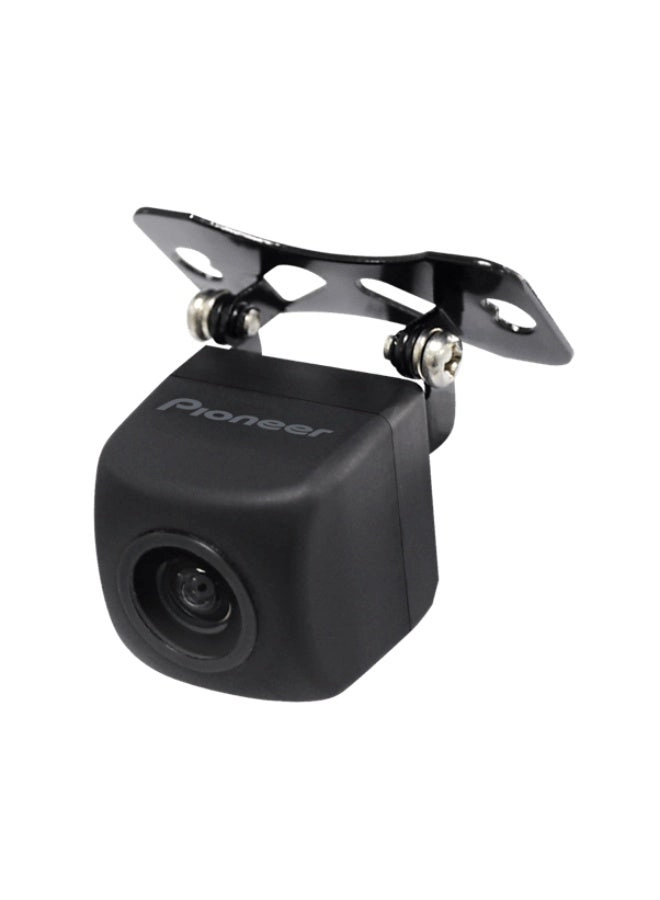

Pioneer ND-BC02 - 345 600 pixels

Rated IP67 1/3'' Color CMOS Sensor Power source: 12.0 V DC Max. current consumption: 100 mA or Less Output video: Mirror image((for rear view confirmation) Sensor: 1/3-inch colour CMOS sensor No. of pixels: effective no. of pixels roughly 345 600 Lens: Wide-angle, focal length f = 1.62m, F value 2 Angle of view: Horizontal: approx. 120°,Vertical: approx. 100° Scanning system: Line by line Synchronizing system: Internal synchronization Signal-to-noise ratio: 48 dB or more Horizontal resolution: Approx. 420 TV lines Illumination range: Approx. 0.5 lux to 100 000 lux Image output: NTSC compatible 1 Vp-p (75Ω) Operation temperature range: -30°C to +70°C Storage temperature range: -40°C to +85°C Dimensions (W x H x D): 23.5 mm x 23.5 mm x 24.0 mm Weight: 168 g Rear view camera: 1.3 m RCA / Power supply cable: 7 m / 0.3 m
