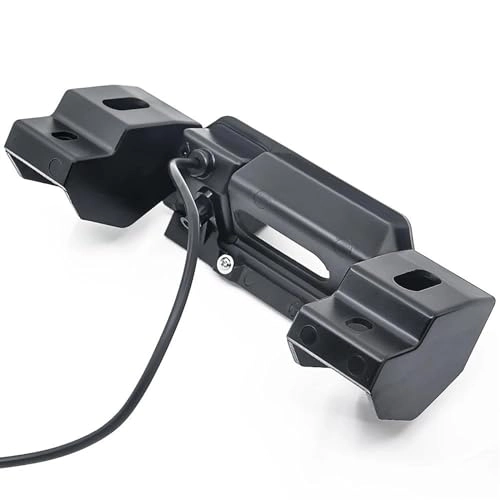

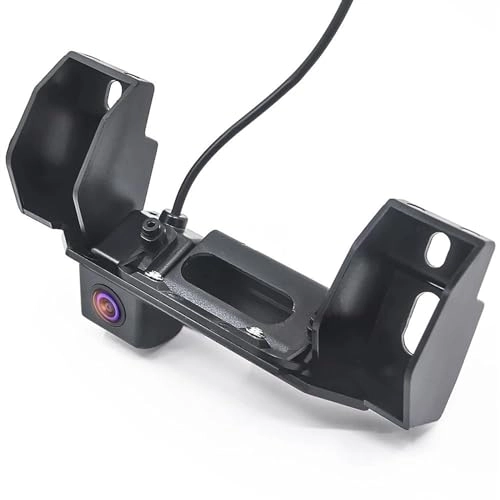

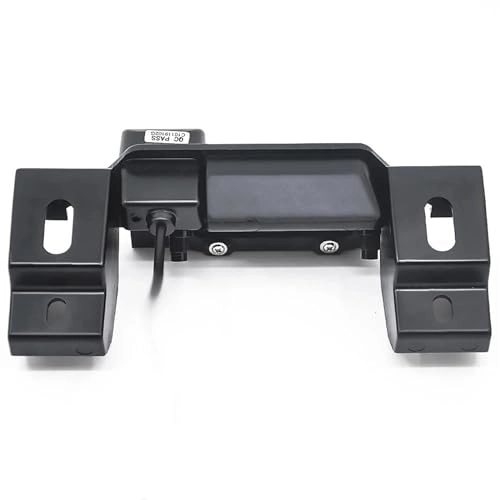

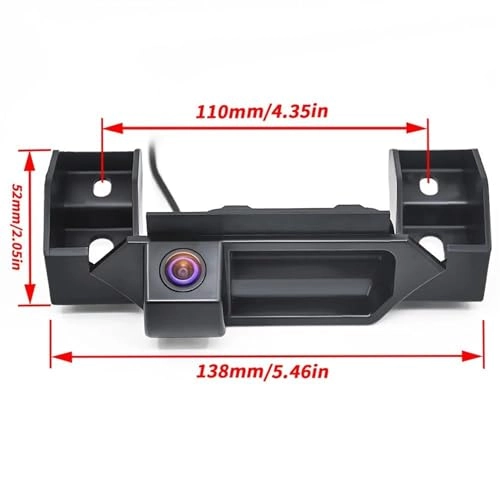

pclele Car Rear View Camera - 728 x 512

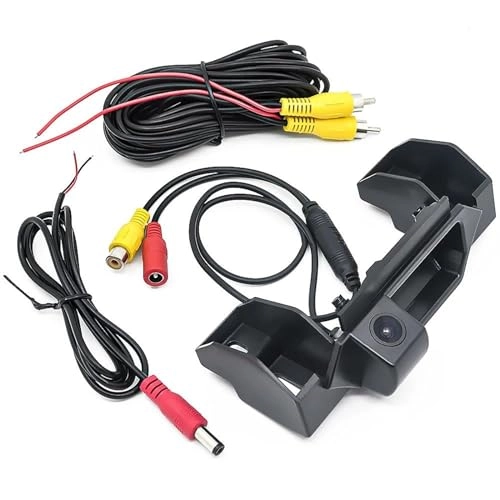

The ultra-wide viewing angle provides a complete rear image of the car. Specification: Image Sensors: 1/4" CCD Color Matrix TV system: NTSC and PAL Effective pixels: 728 x 512 Resolution: 520 TV lines Video output: 1.0Vp-p, 75 Electronic shutter: 1/60 (NTSC) -1/10000s, 1/50 (PAL) -1/10000s Waterproof Class: IPX 68 Operating temperature: -20°C~+80°C RH95% Operating power (DCV): 12 Current consumption: 90mA max Installation: 1. Install the camera in the license plate area of your car 2. Adjust the camera lens to your best position. 3. Connect the power wire (red and black) to the headlight power wires of your car. 4. Connect the video output (yellow wire) to the display. About car rear view camera television system: Typically, most monitors support both NTSC and PAL TV systems. So it doesn't matter whether the camera is PAL or NTSC system. However, if you are not sure, please check that your monitor supports NTSC or PAL system. If your monitor only supports NTSC or PAL, please leave us a message about what TV system you need within one business day after making your payment. Or we will send NTSC or PAL system camera at random. packing list: 1 * CCD Car Rear View Camera 1 * 6m video cable 1 * power cable 1 * User Manual Our reversing camera features a sturdy alloy housing coupled with nano waterproof glue to ensure internal components are isolated from the outside and guaranteed to be waterproof for life regardless of weather conditions. The back camera / reverse camera is specially designed for seeing the blind spot where your mirrors can’t reach, it can help you see more when you driving or parking, effectively avoid a lot of trouble.
