Suitable for:

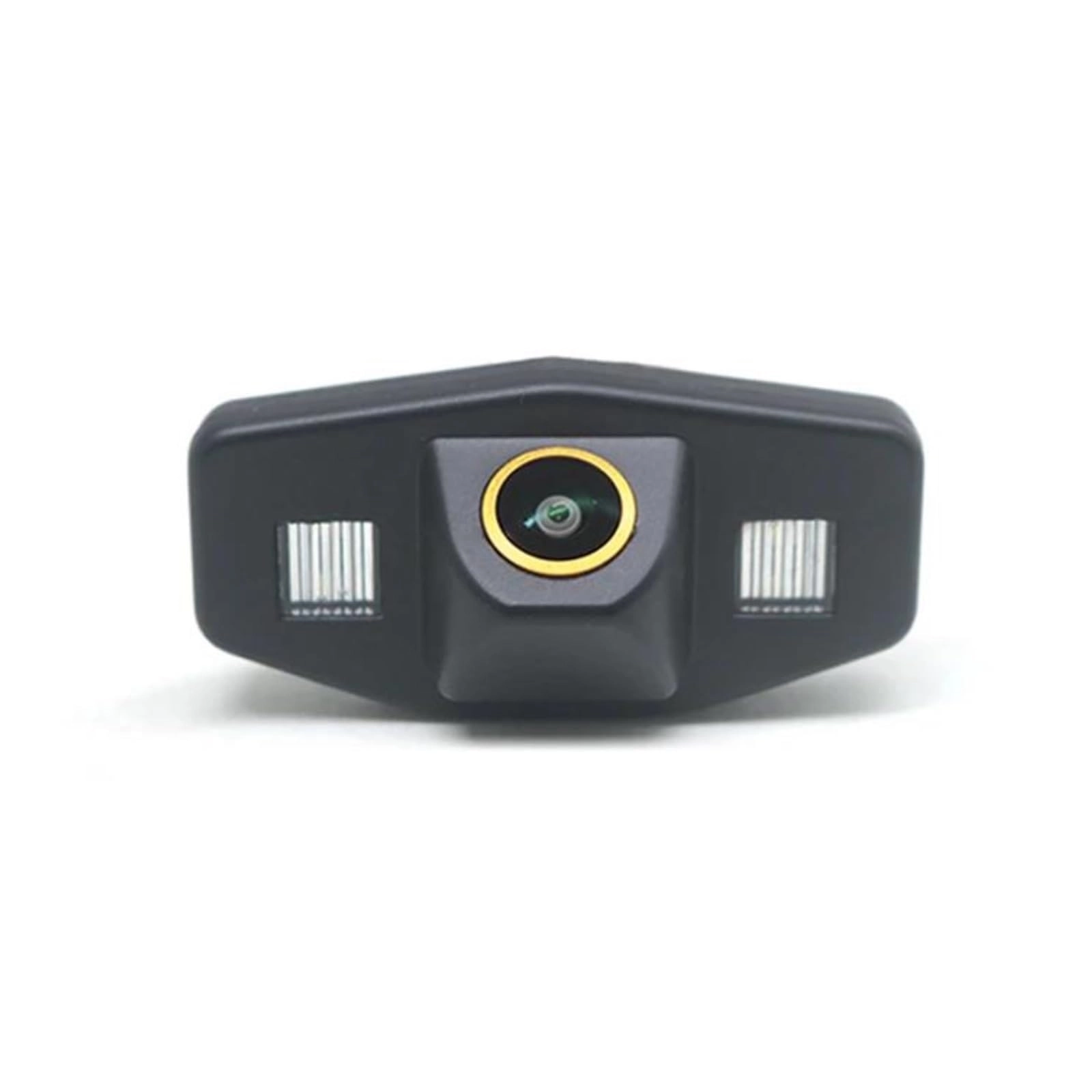

AHD Car Brake Light Rear View Reversing Camera For Transit For MK7 2006 2007 2008 2009 2010 2011 2012 2013 Waterproof Night Vision Backup Camera
Lens Material
Plastic + Glass
Shell Material
Plastic
Wire or Wireless
Wire
Viewing Angle
170°
Material
ABS

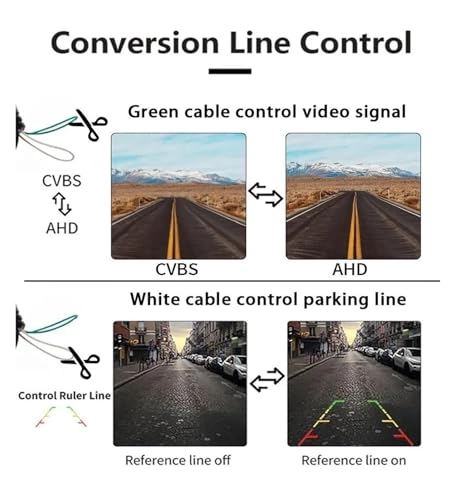

Conversion Line Control
Note: Our cameras usually default to CVBS. After cutting the cable, they will switch to AHD. Before cutting the cable, please switch to AHD channel in the car display settings, otherwise there will be no signal or black screen.After setting it up, it canrun normally
Possible issues that may arise during the installation process
After installation, black screen, no signal, blurred screen, and black and white image appear
NOTE:
(1)Please check if your Android monitor supports AHD720P before purchasing
(2)Our car camera only supports Android large screens. Please check carefully before purchasing

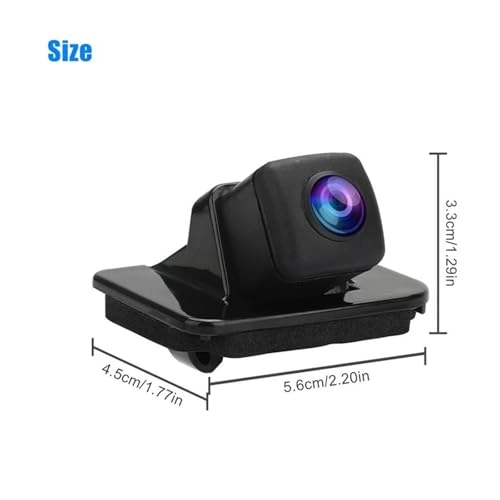

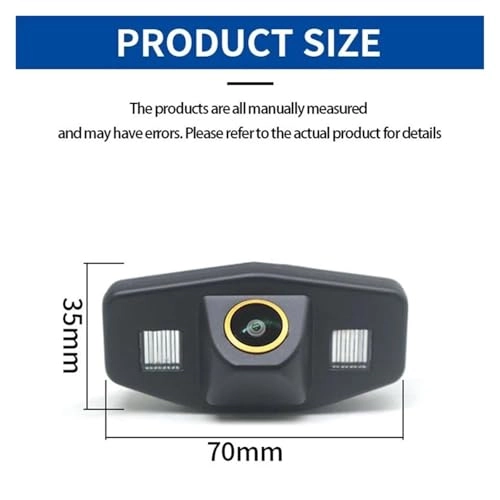

(3)Because there may be slight differences between carsproduced in different countries, please check the size beforebuying.
Note: Cameras with CVBS CCD video signal is universal for all monitors, but AHD signal will only work with AHD monitor!
Regarding monitor settings: Before installing the camera, you need to set the monitor to AHD signal
Resolvent:

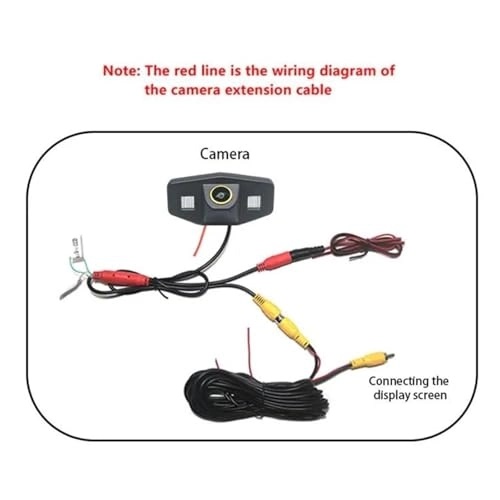

1. Check if the camera cable is not properly connected

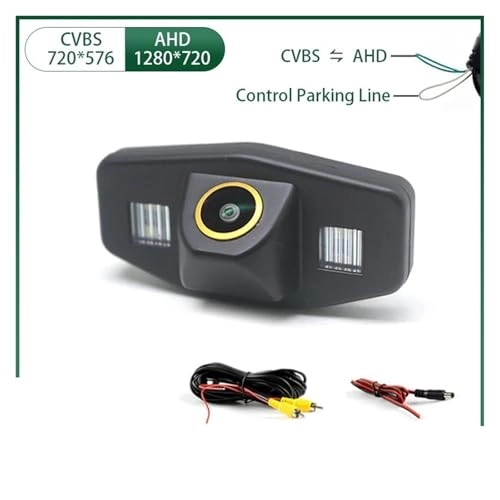

2. First, check if the Monitor is on the same channel as the camera, as our camera is Dual channel camera, so it is necessary to confirm whether the camera is a CVBS or AHD channel, usually The default is CVBS channel, and after cutting the green line, it becomes AHD channel. After confirming the camera channel,
It is necessary to set up channels corresponding to the camera on the car Monitor, such as the camera For AHD channel, the monitor needs to be set to AHD 720P channel. If the camera If it is a CVBS channel, set the Monitor to CVBS/NTSC
Package Contents:
1 x Reverse Camera
Note: Note: If there is no AHD signal selection, then it is your monitor AHD signal is not supported You can choose CVBS signal again,But before that, you need to connect the White Cable that has already been cut off, otherwise the monitor will not show scene
Installation: The camera is easy to install, offers wide-angle shooting, covers multiple lanes, and will not obstruct your field of vision after installation. It eliminates blind spots in the monitoring field of vision, helping you safely reverse into parking spaces.
Quick Response: If you have any questions about our products, please email us. You can trust us; we are happy to answer your questions within 24 hours.
