nullbits SNAP - QWERTY Wired

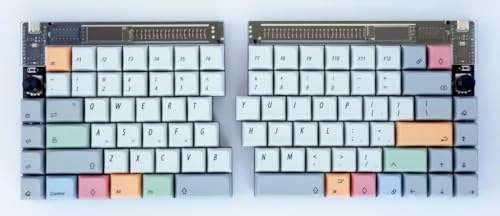

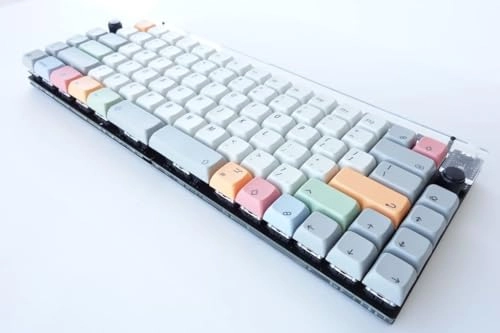

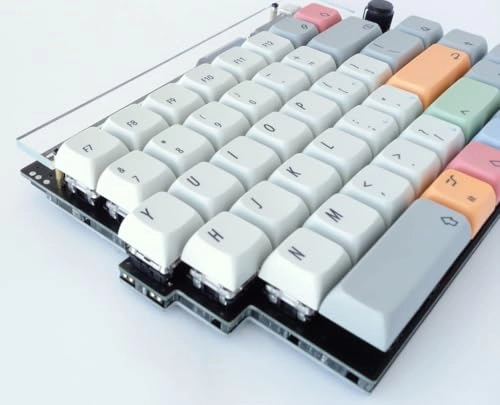

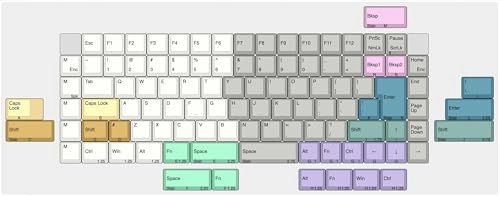

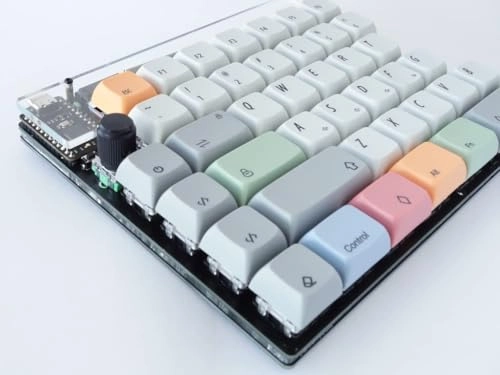

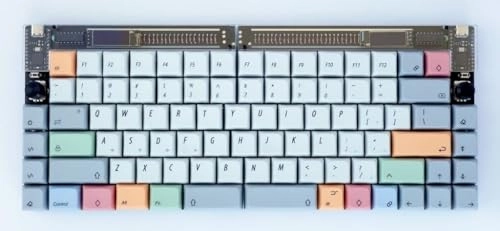

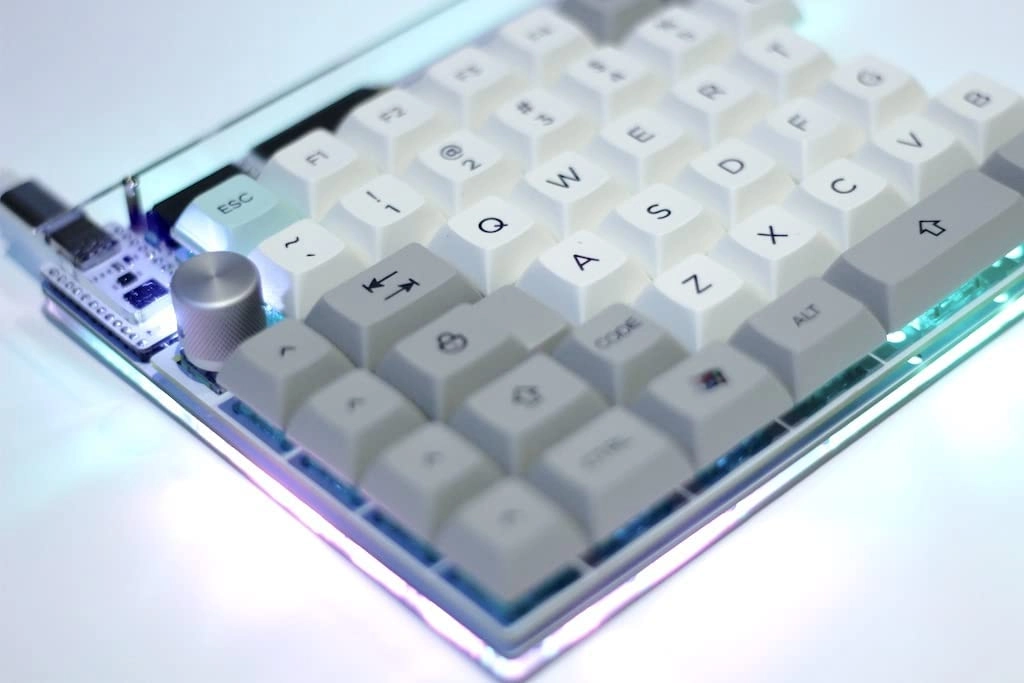

A stylish, 75% split The SNAP PLUS is a 75% split mechanical keyboard kit with support for 2 rotary encoders, 2 OLED displays, speaker, and RGB underglow. We took all the best parts of the NIBBLE and added some of the most popular requests: true split shift/space/backspace. The SNAP is configurable, programmable, and easily assembled. 100% through hole design* The SNAP uses a Pro Micro MCU instead of a discrete micro-controller chip. It offers the fun and aesthetic of a kit without having to worry about soldering the difficult bits like USB connectors. All required parts (diodes, caps, and ICs) are through-hole, meaning they're easy and forgiving to solder. Multiple Layout Options Use the SNAP in split mode, or snap it (whoa, get it?) together for a more traditional layout. Strong internal magnets hold the two sides together and magical spring-loaded pogo pin contacts mean there's no need for a TRRS cable when the two sides are attached. The SNAP supports many configurations and layouts: Split space/backspace, split shift, ISO enter, and more. Since it runs QMK firmware and uses VIA, it's easy to change keymaps, program macros, and customize functionality. RGB underglow ready 10x pre-soldered bottom-mounted LEDs shine nicely through the acrylic support material. Included

• Top & bottom PCB
• Acrylic supports
• M2 standoffs & screws
• Diodes, ICs, decoupling caps, reset switch
• Speaker, magnets, and pogo pins
• Rotary encoder & color-matched knob
• TRRS cable and mini bumpons

• 2x Bit-Cs or Bit-C PRO RP2040 MCU
• MX-compatible switches & keycaps
• PCB-mount stabilizers
